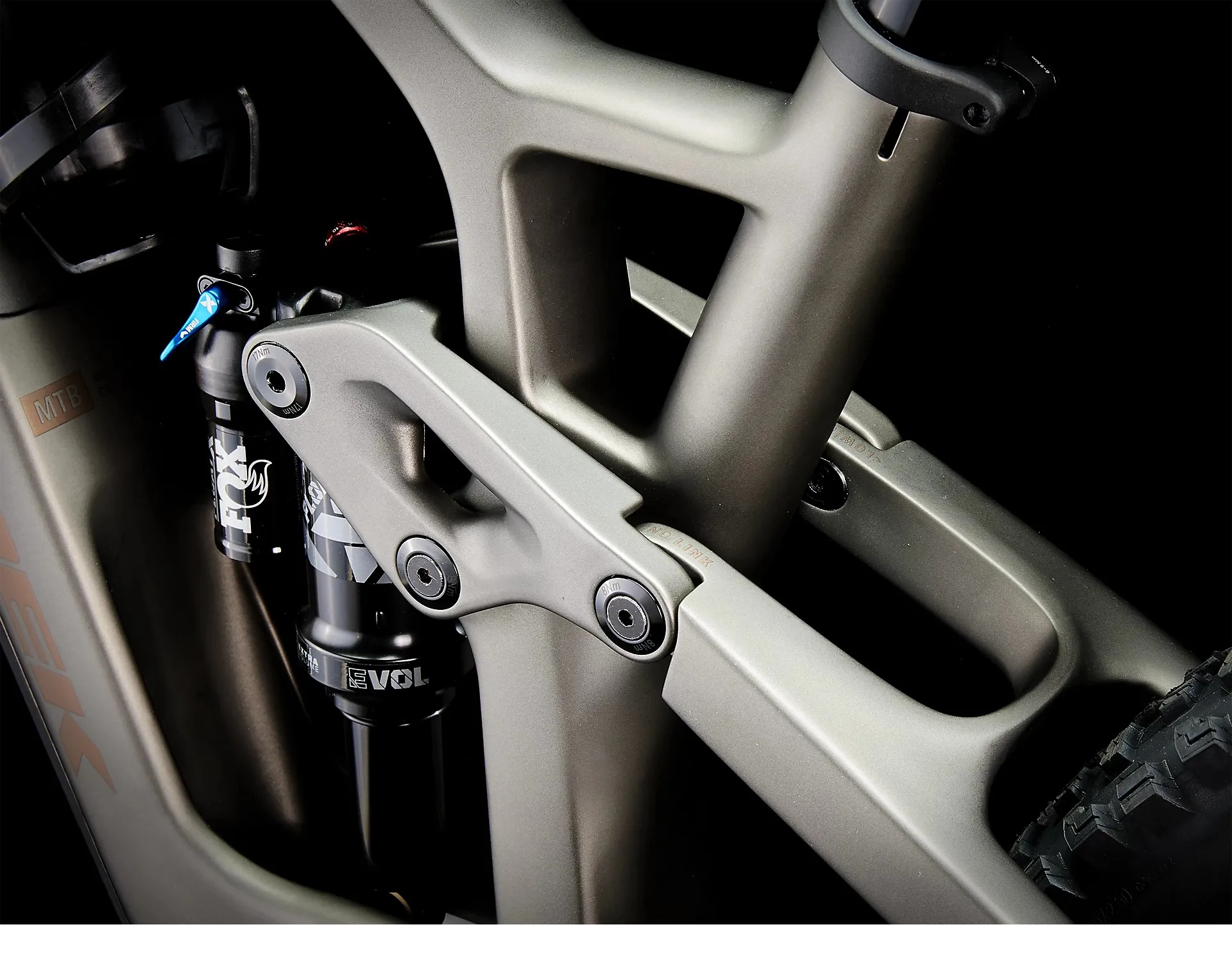

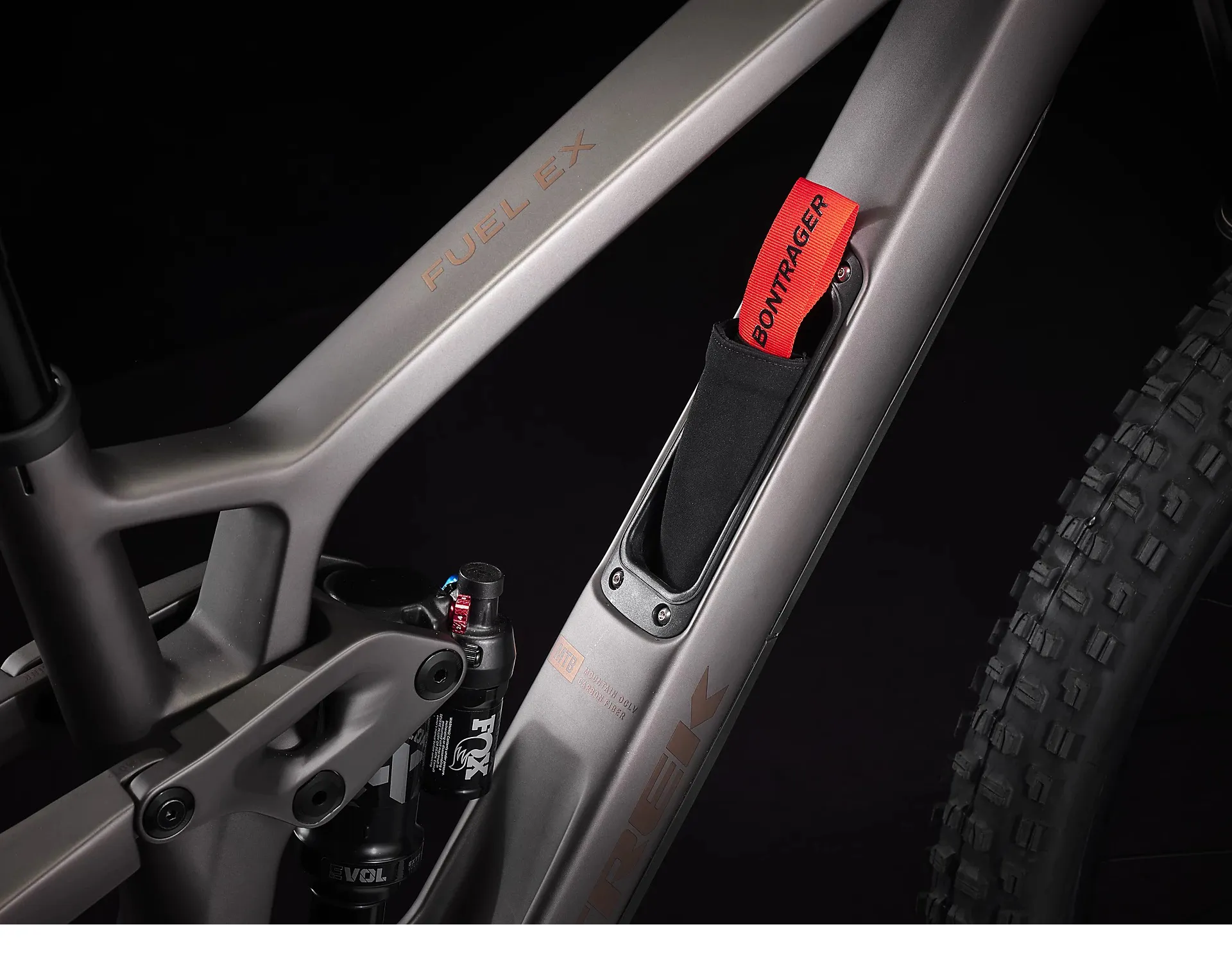

Frame
OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel

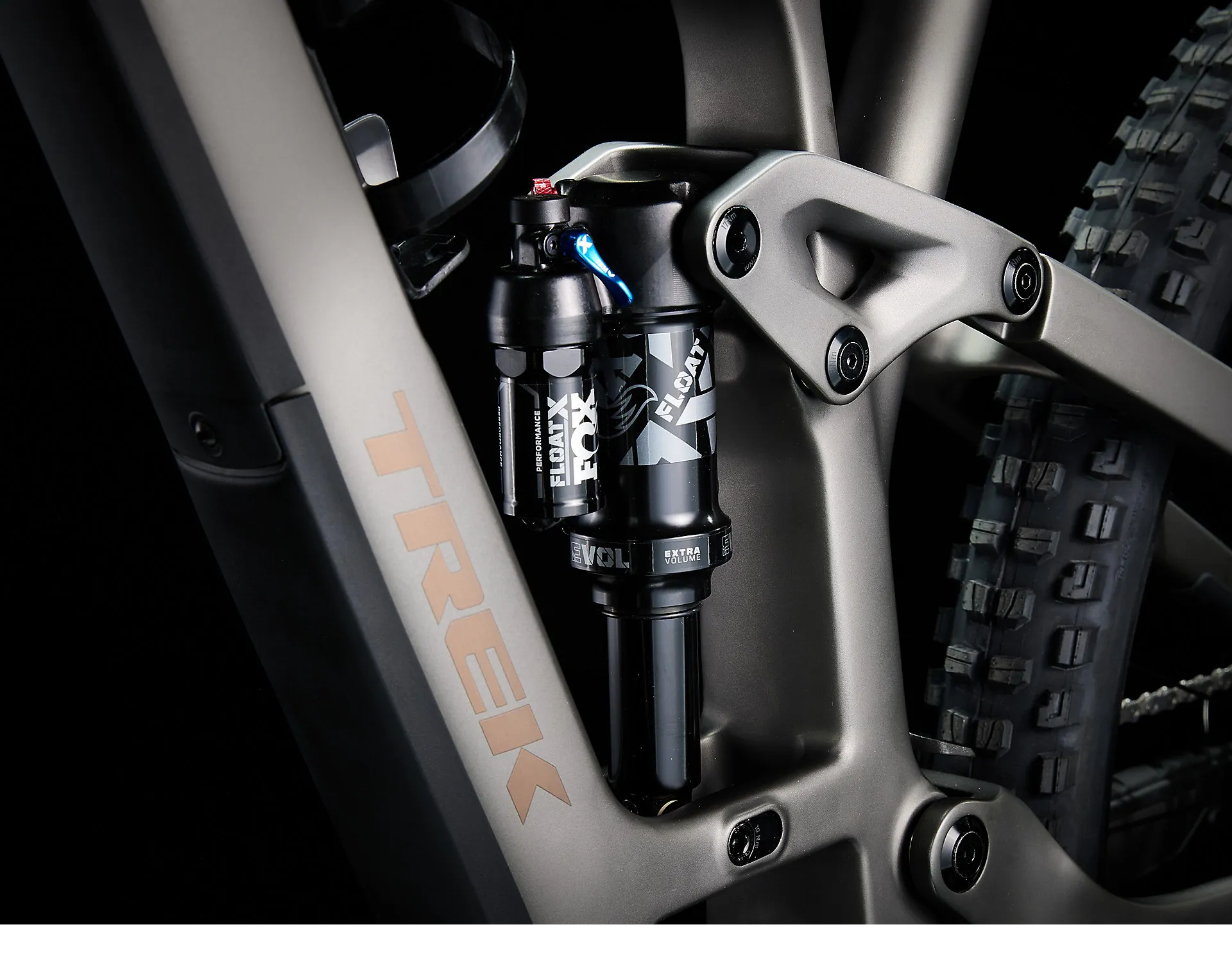

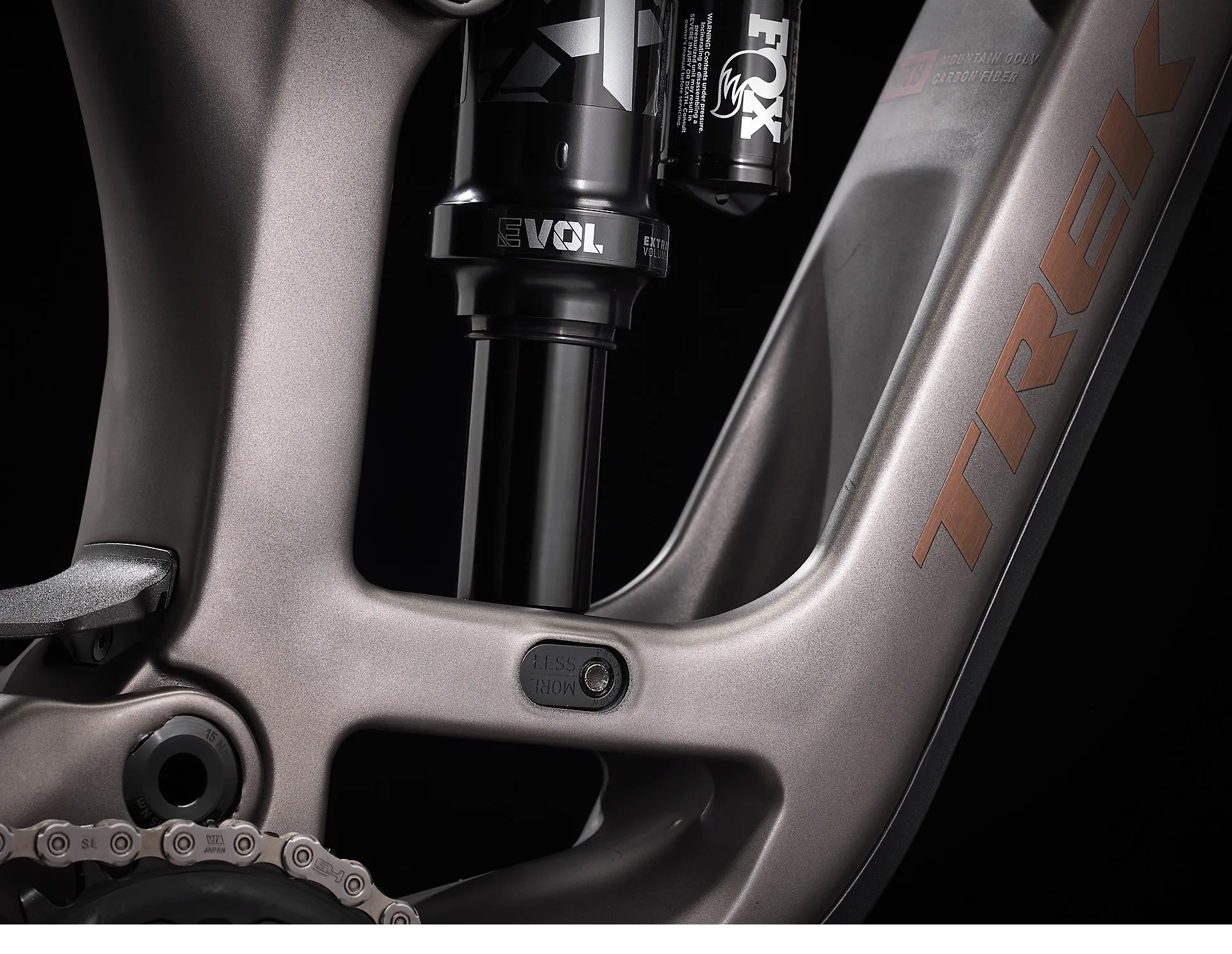

Shock
Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve

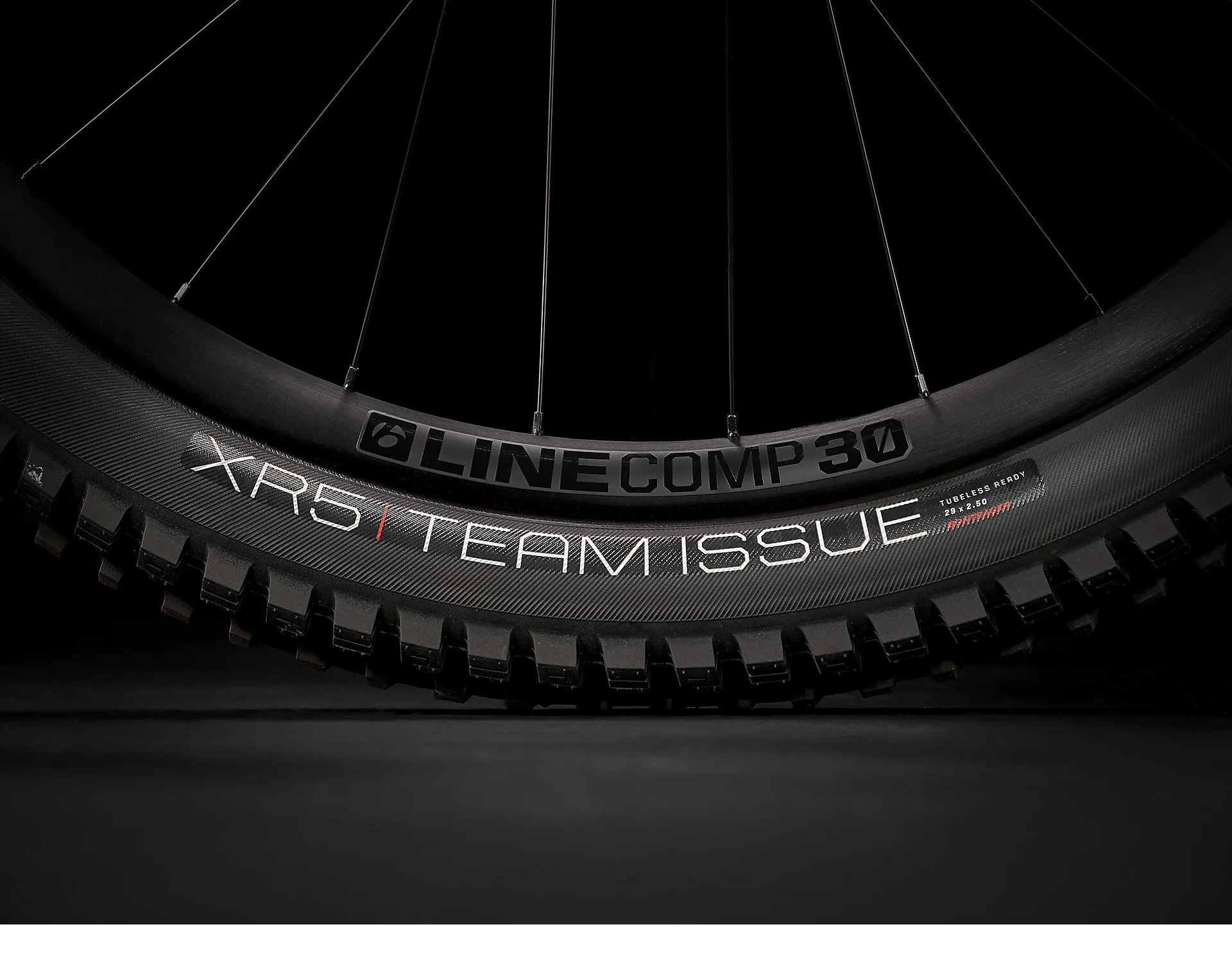

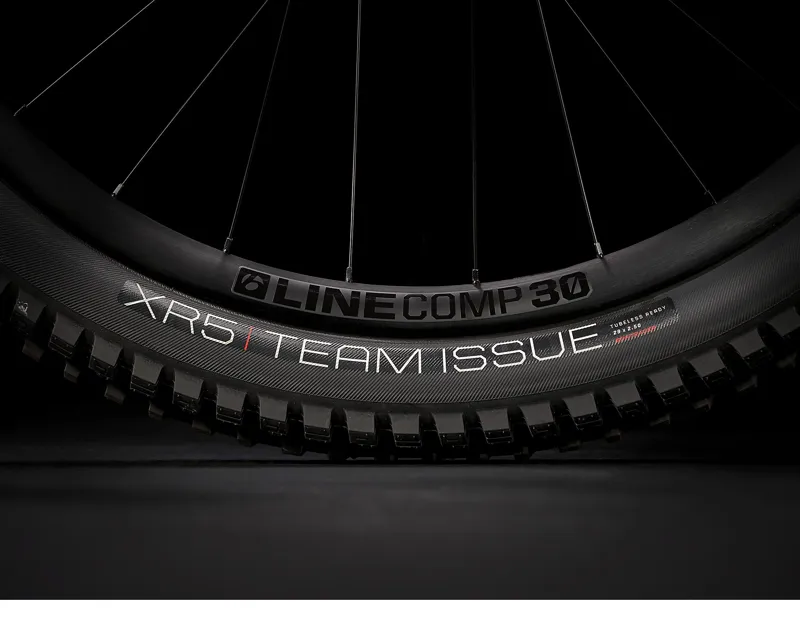

Tyre
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"
Shifter
Shimano SLX M7100, 12-speed

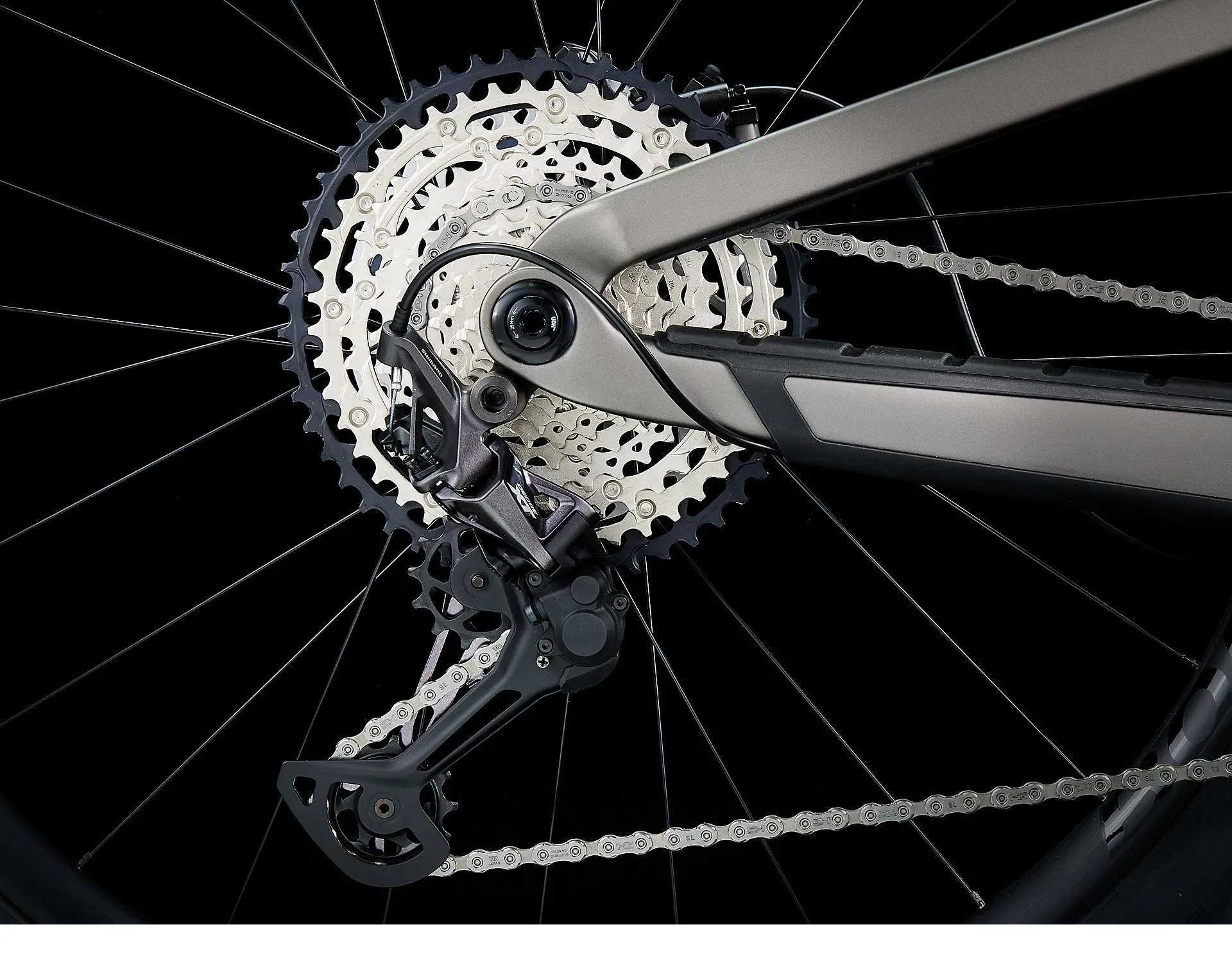

Rear derailleur
Shimano XT M8100, long cage
Crank
Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket
Shimano BB-MT501 BSA
Cassette
Shimano SLX M7100, 10-51, 12-speed
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Elite, 35 mm, 0-degree, 35 mm length

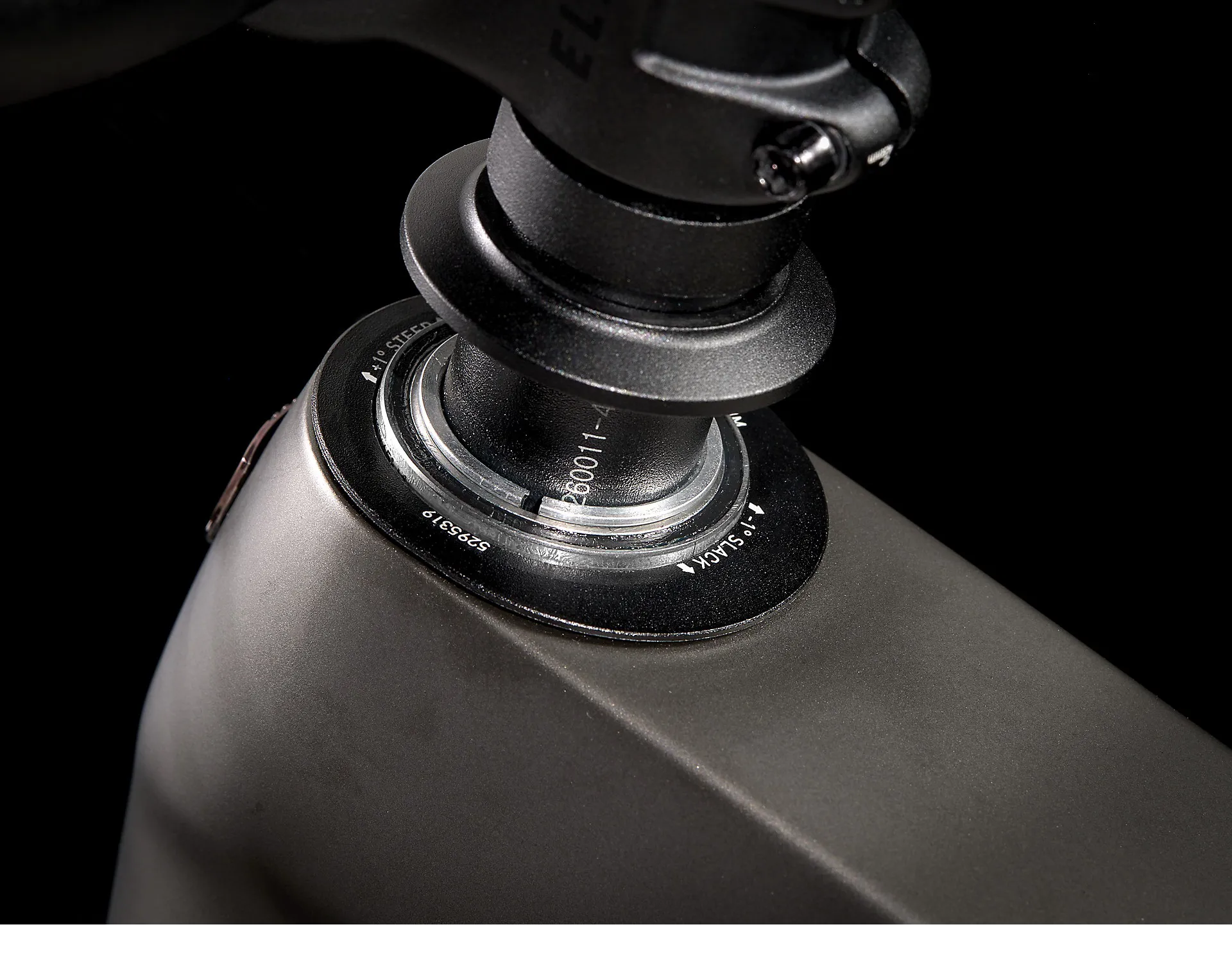

Head set
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake
SRAM DB 8 4-piston hydraulic disc
Brake rotor
SRAM CenterLine, 6-bolt, round edge, 180 mm
