Frame

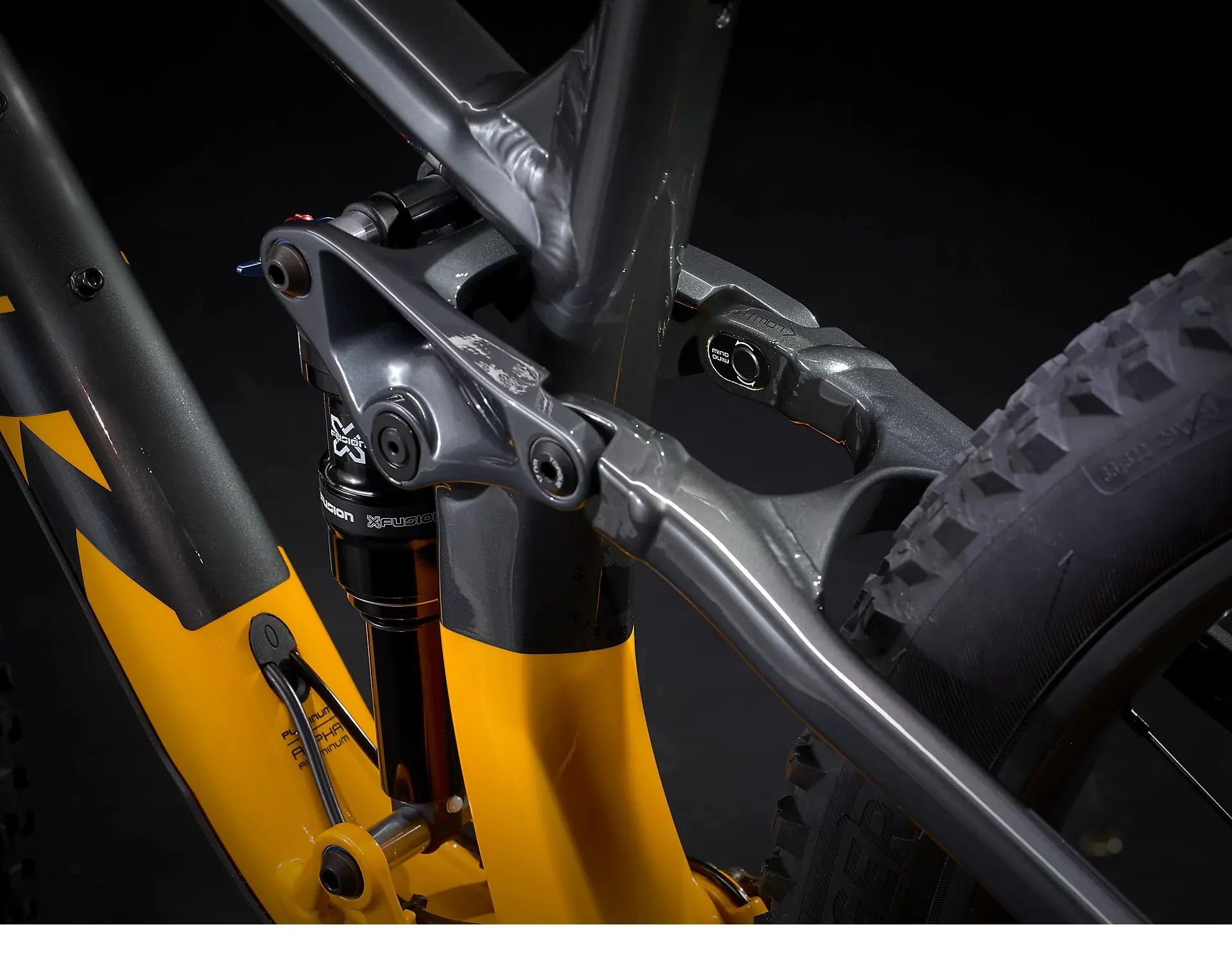

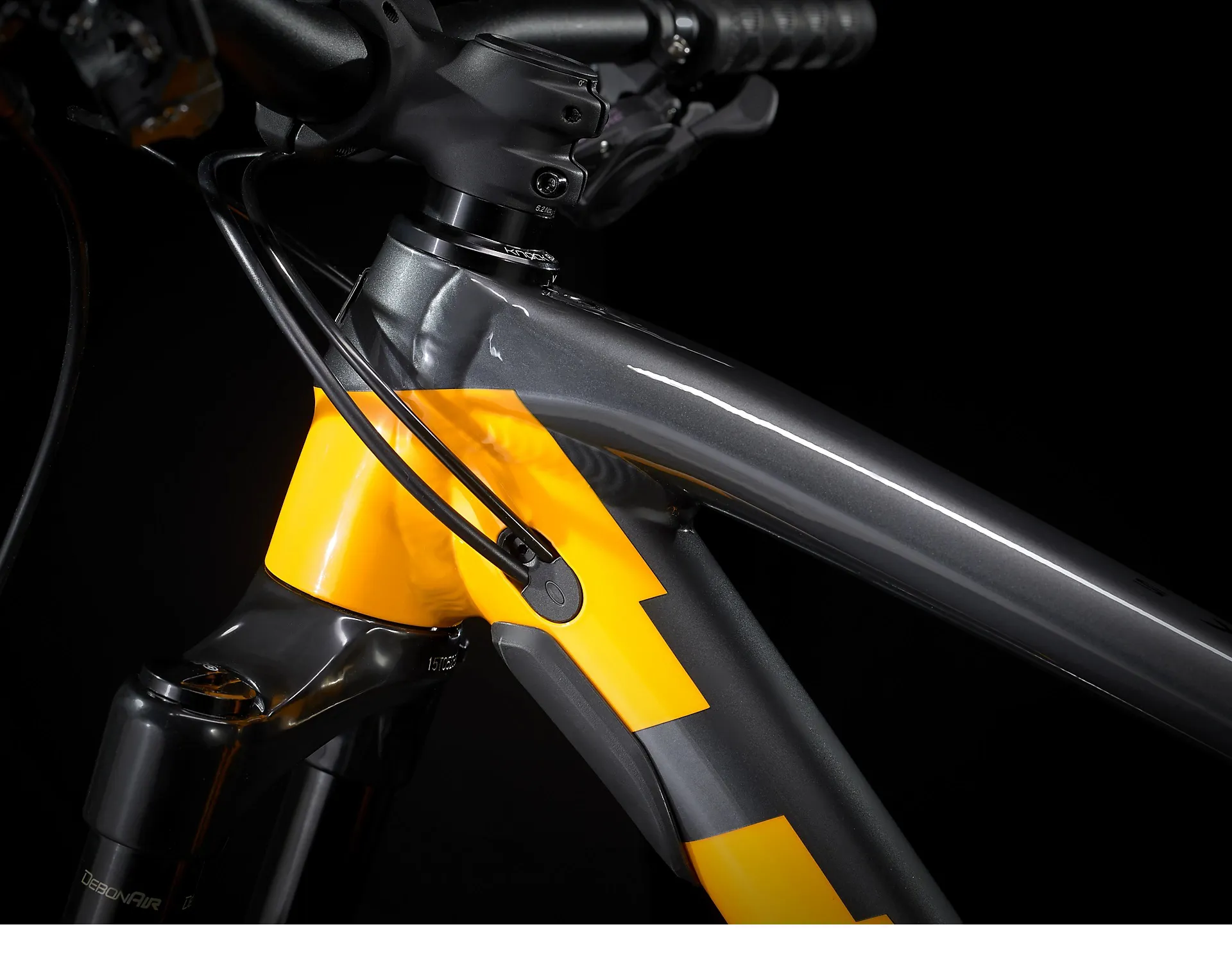

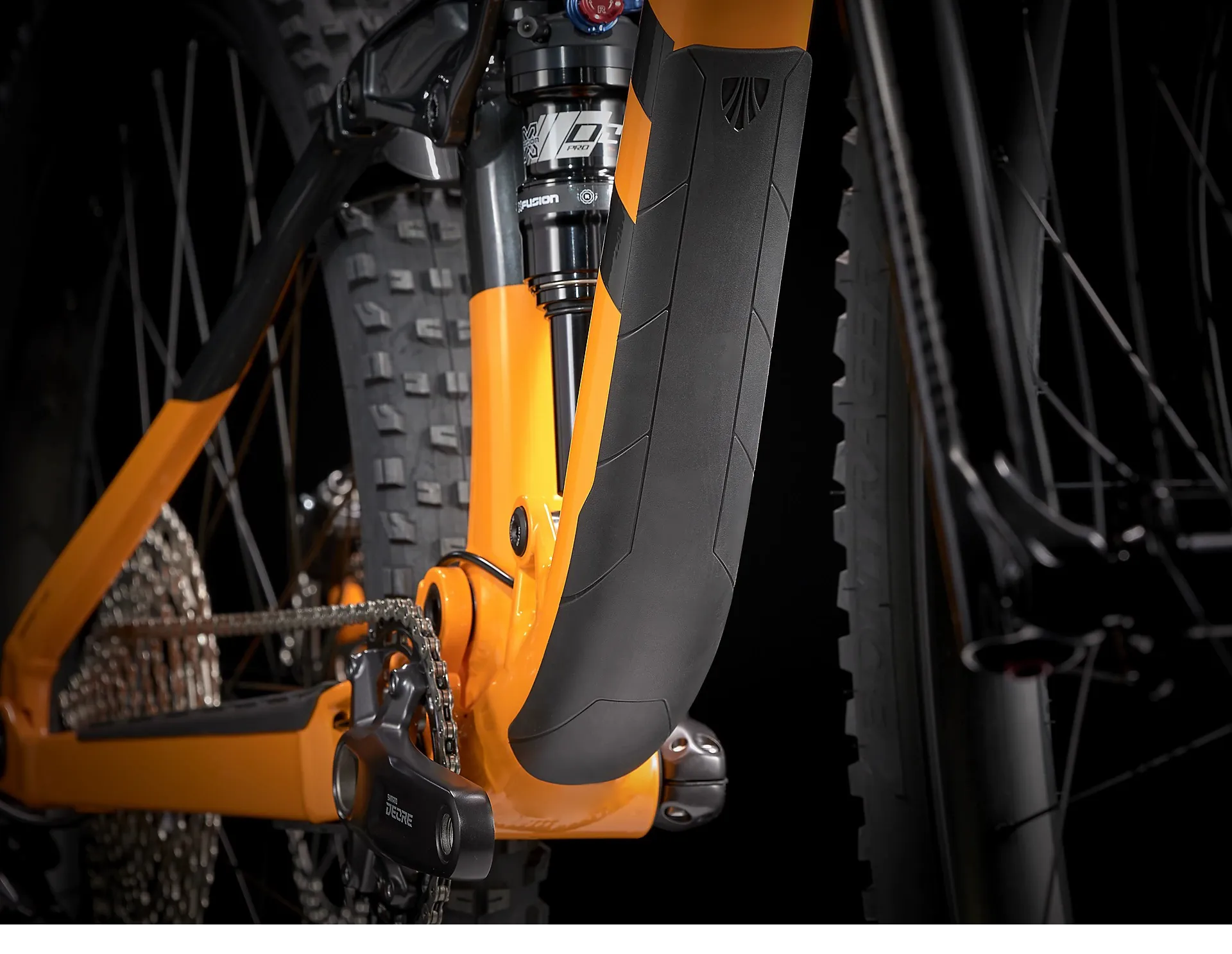

Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Fork
Size: XS/S, RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth, 140mm travel
Size: S/M/M-L/L/XL/XXL, RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel

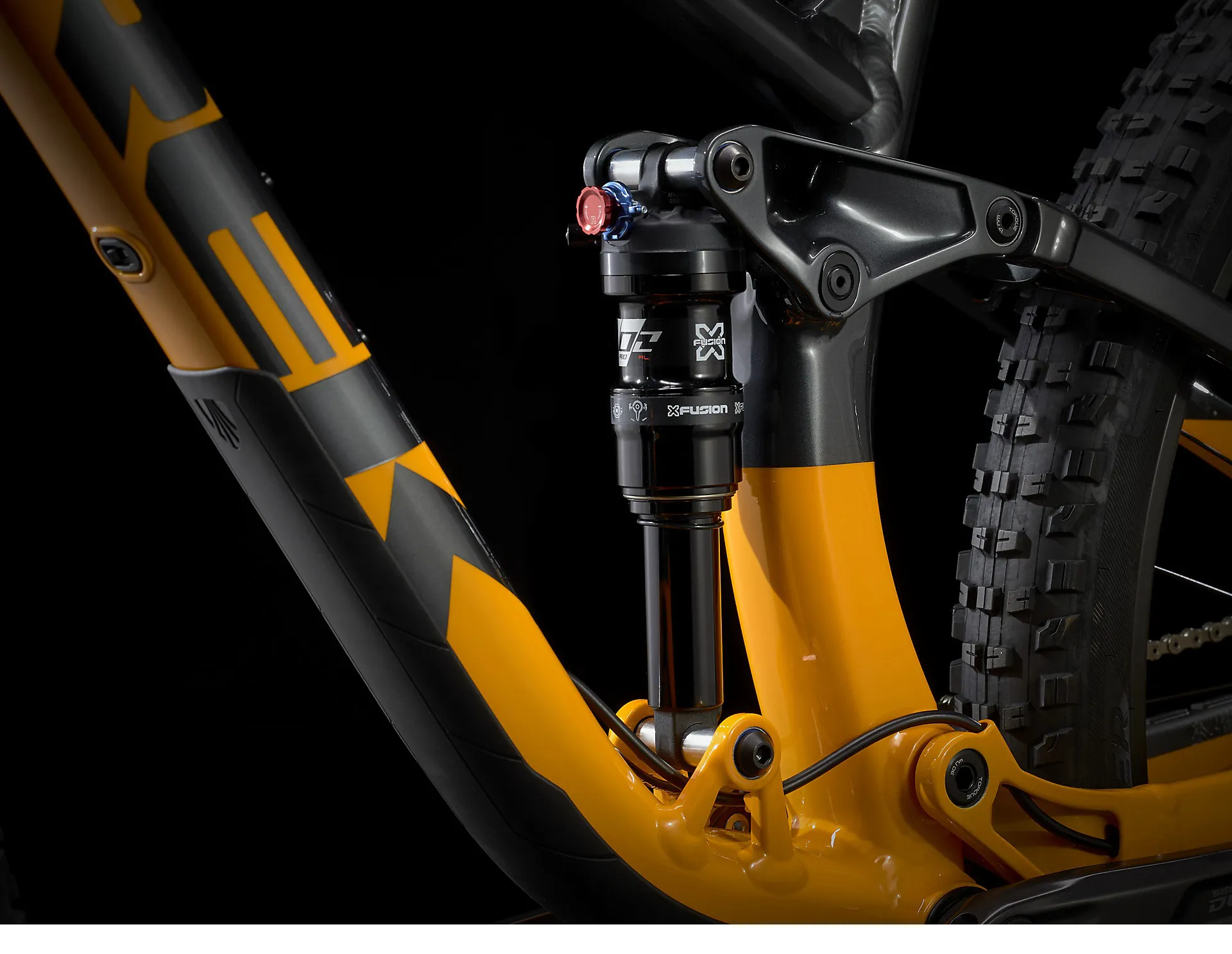

Shock
Size: XS/S, X-Fusion Pro 2, 2-position damper, 210x52.5 mm
Size: S/M/M-L/L/XL/XXL, X-Fusion Pro 2, 2-position damper, 210x55 mm
Max compatible fork travel
150mm
Front hub
Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
Rim
Alex MD35, Tubeless Ready, 32-hole, 35 mm width, Presta valve
Spokes
14 g stainless steel

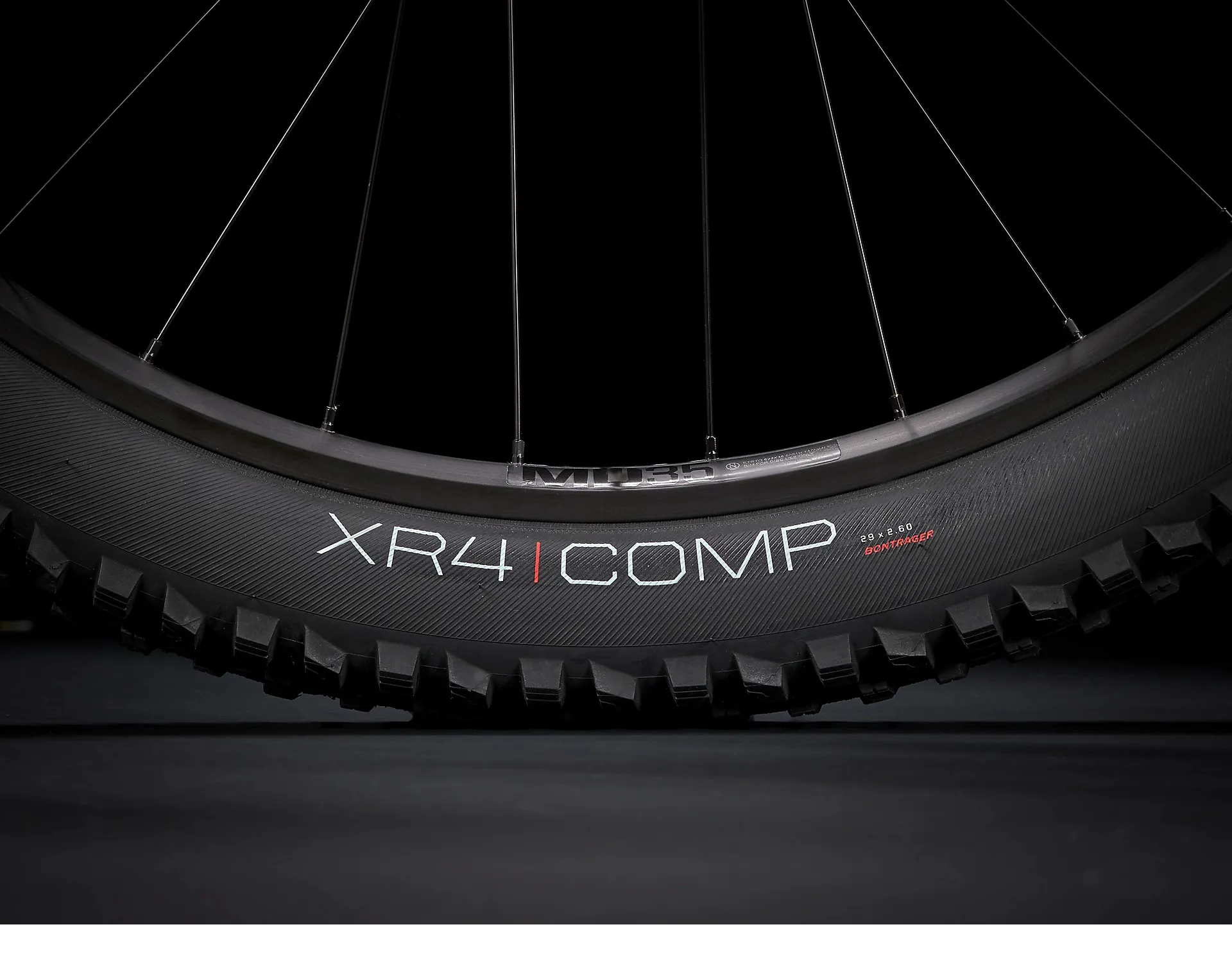

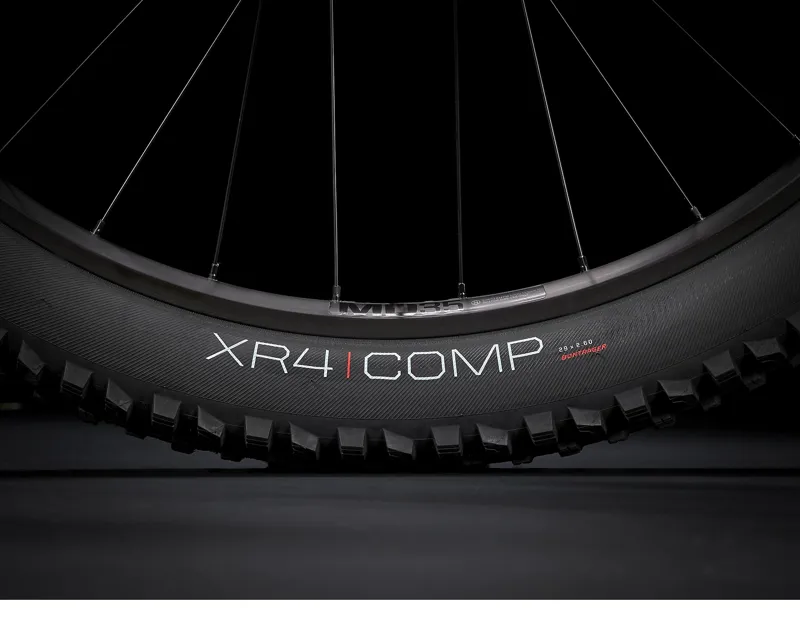

Tyre
Size: XS/S, Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60"
Size: S/M/M-L/L/XL/XXL, Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Rim strip
Bontrager TLR
Shifter
Shimano Deore M6100, 12-speed

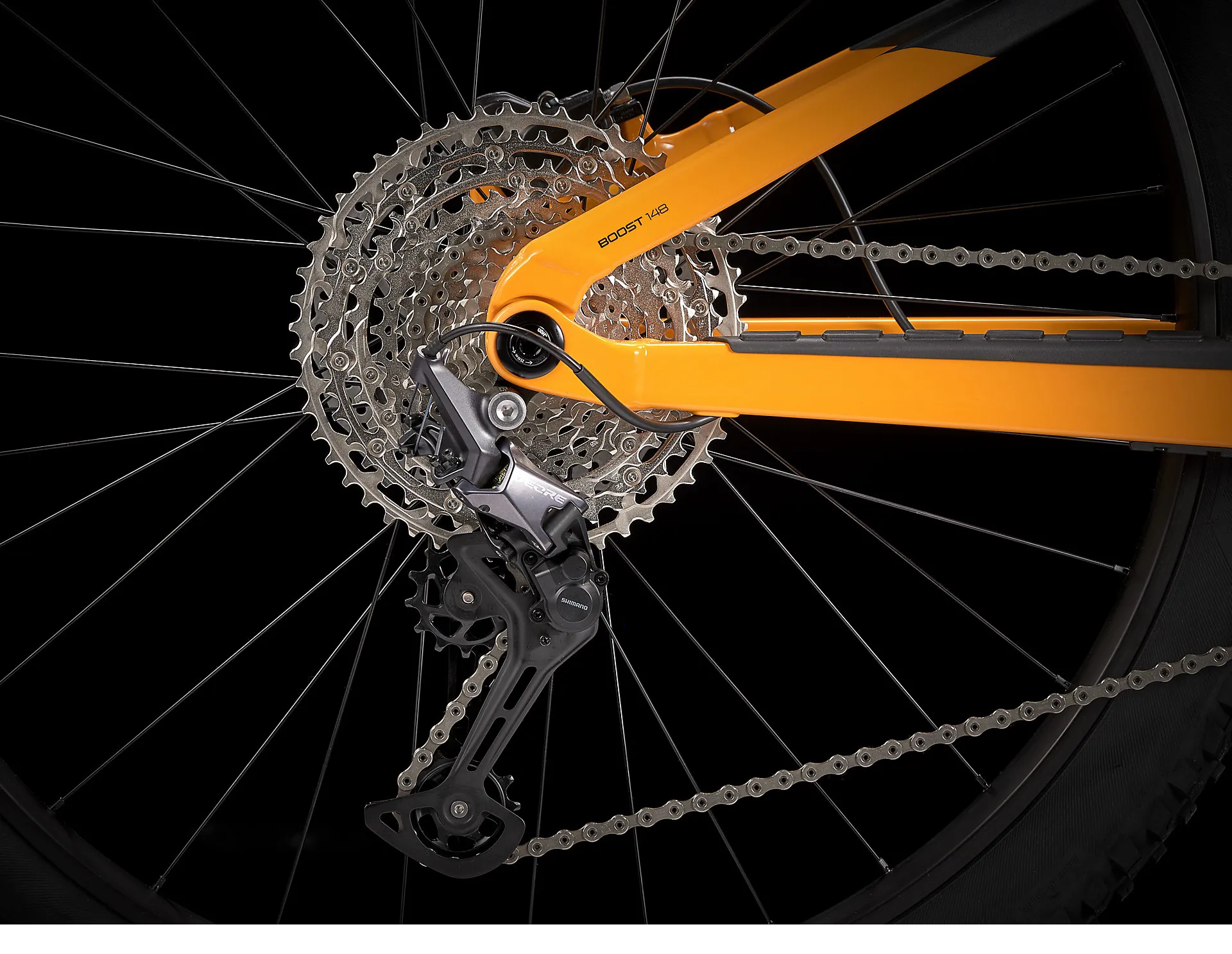

Rear derailleur
Shimano Deore M6100, long cage

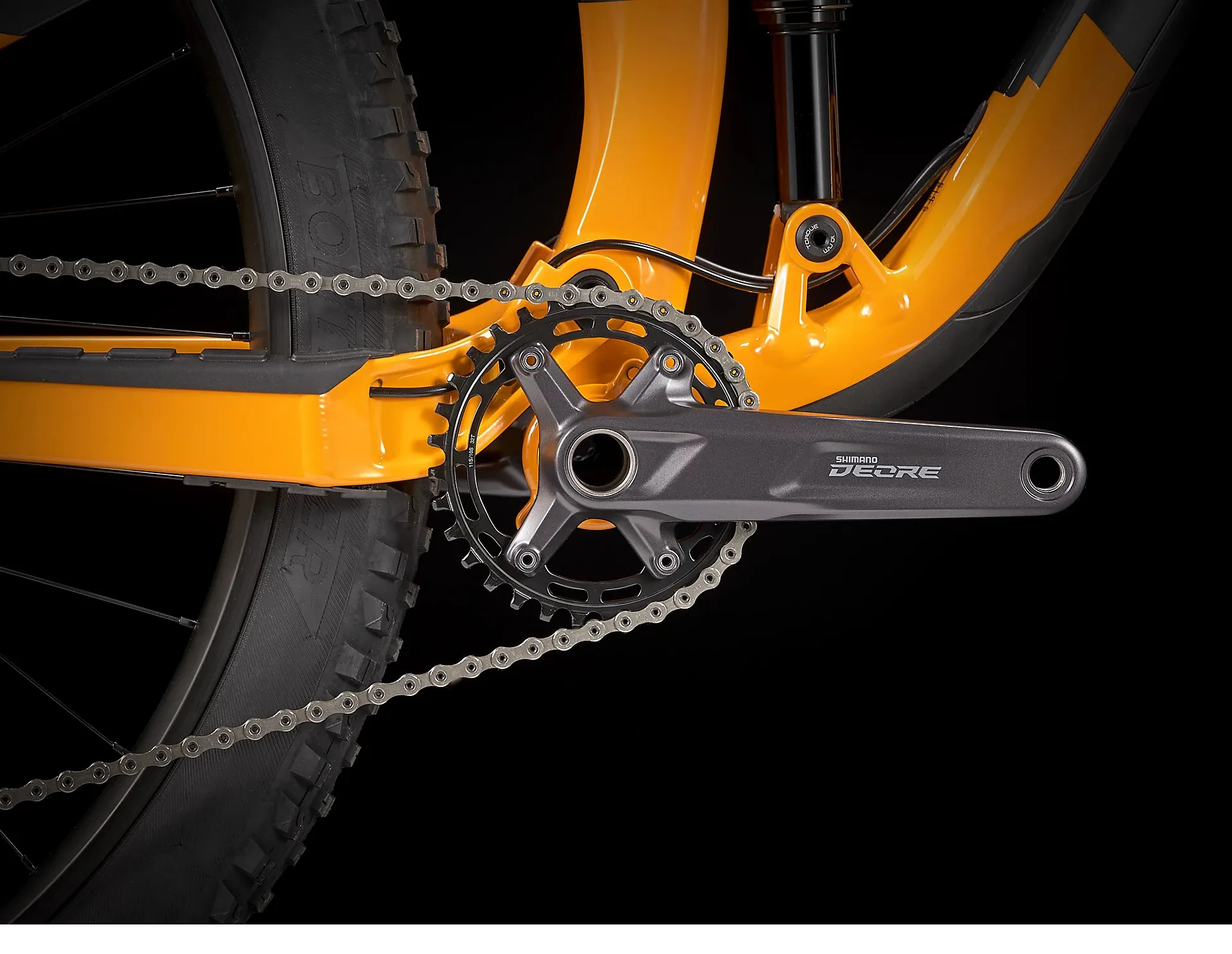

Crank
Size: XS/S, Shimano MT511, 30T steel ring, Boost, 170 mm length
Size: M/M-L/L/XL/XXL, Shimano MT511, 30T steel ring, Boost, 175 mm length
Bottom bracket
Shimano MT500, 92 mm, PressFit
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed

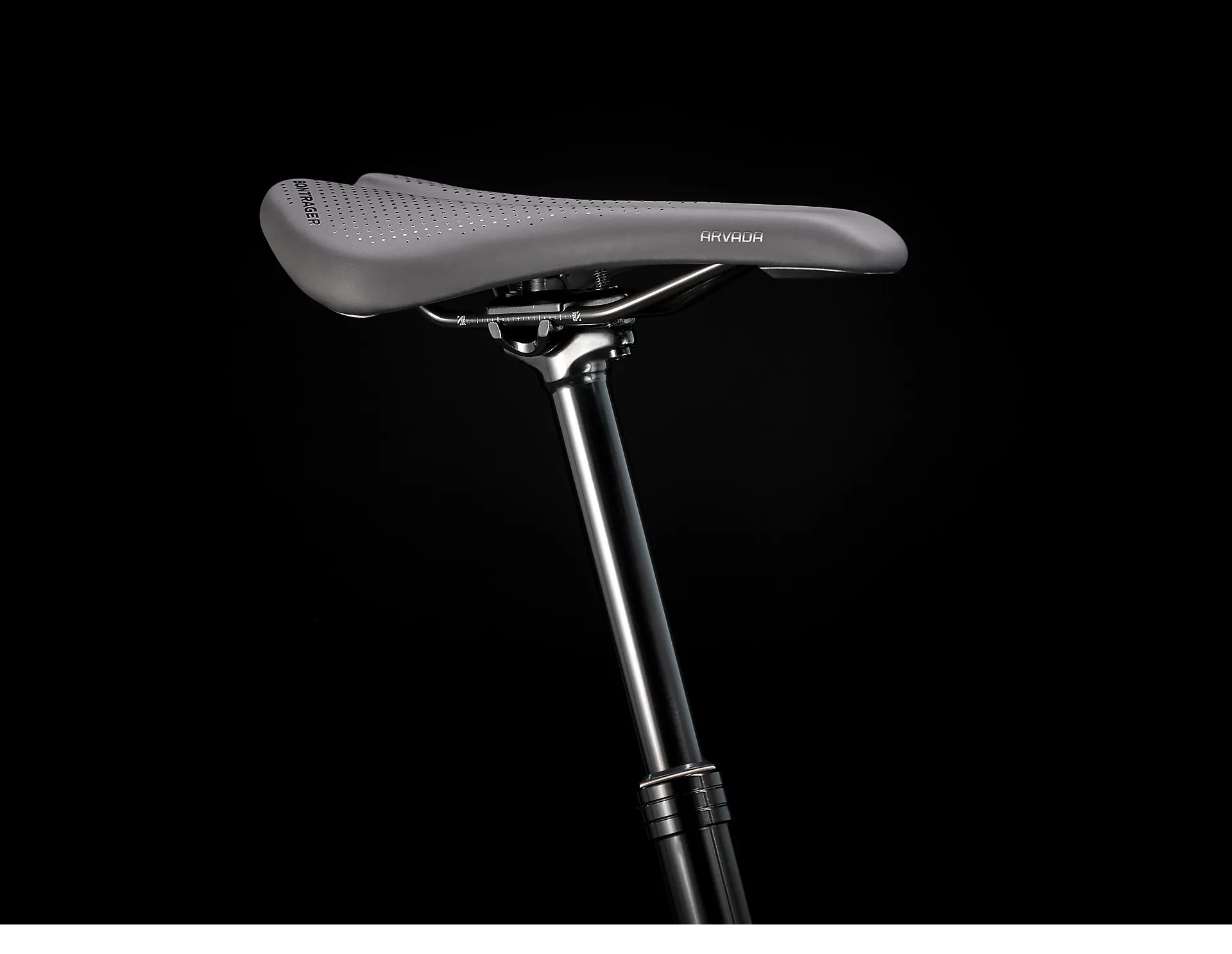

Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS/S, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M/M-L/L/XL/XXL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Head set
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

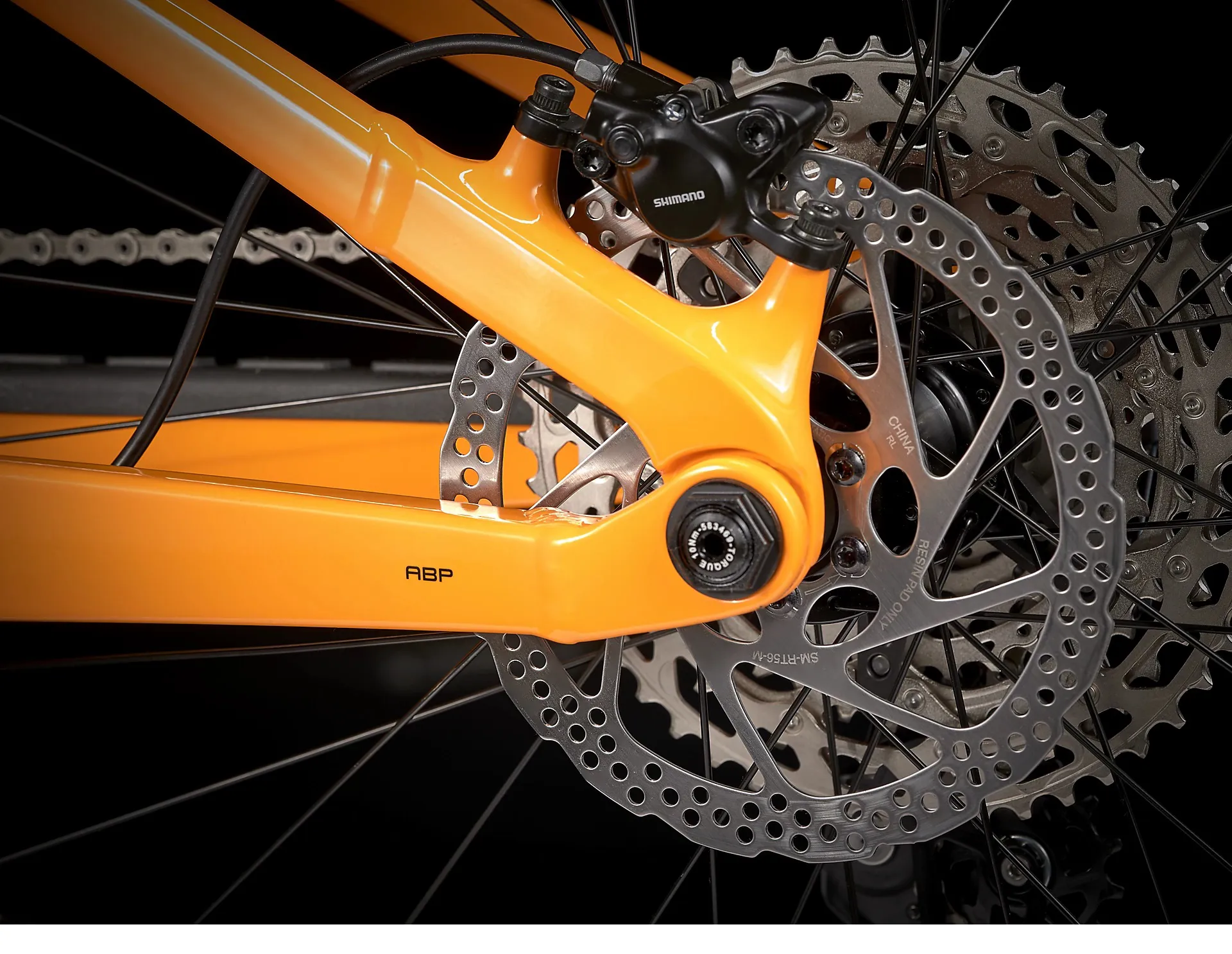

Brake
Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotor
Shimano RT56, 180 mm, 6-bolt
