The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all.
The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all.
Trek

Trek Fuel EX 5 Mountain Bike in Black

£1,975.95 £2,325.00 15% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Fuel EX 5 Mountain Bike in Black

Season:2023

Brand:Trek

Code:33073MATBLK

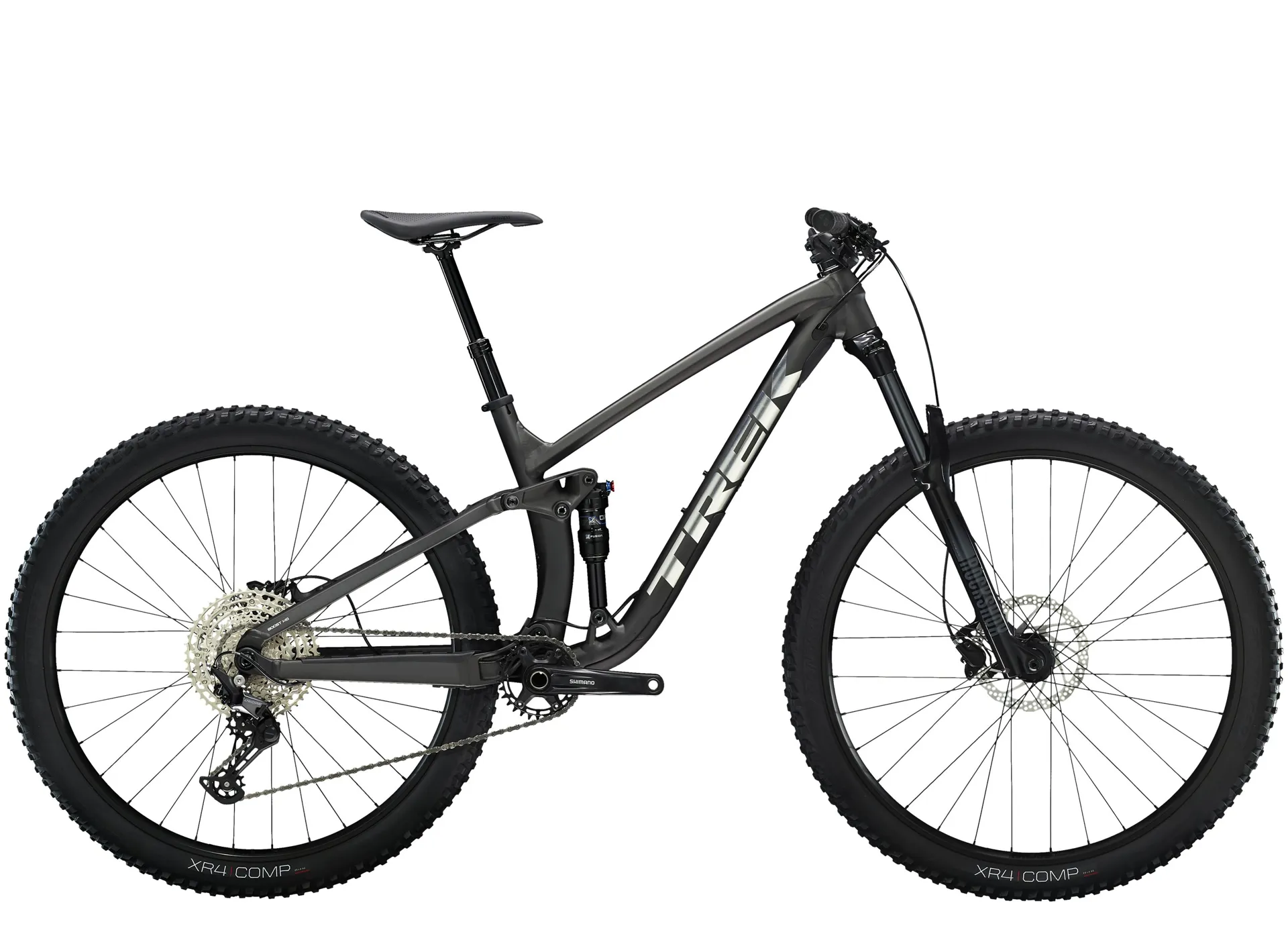

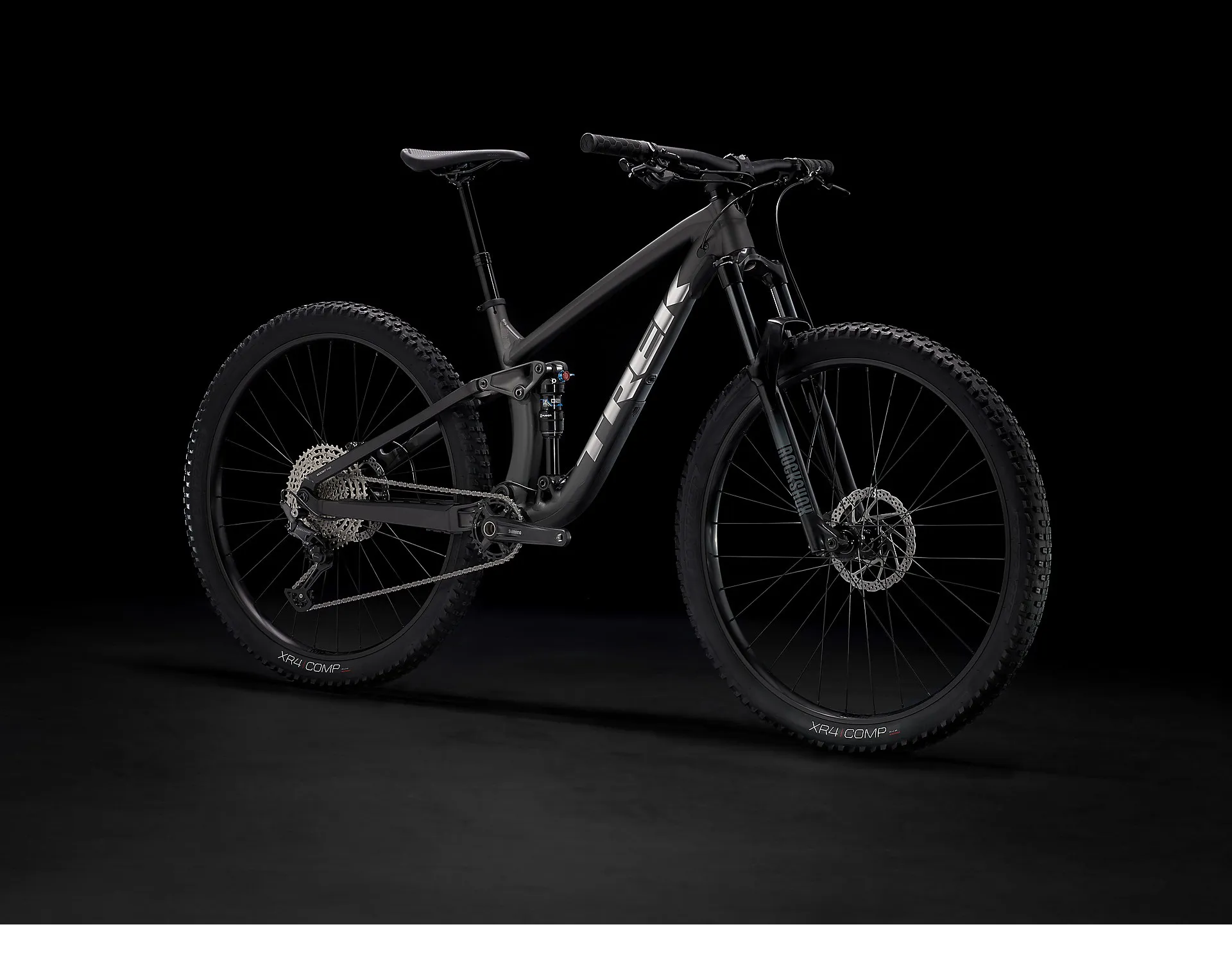

The Fuel EX 5 is a full-suspension trail bike that's ready to handle it all.

With trail-taming 140 mm front and 130 mm rear suspension, a Shimano 1x12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
Technical Information
  • Frame
    Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
  • Fork
  • Size: XS , S
    RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel
  • Size: S , M , ML , L , XL , XXL
    RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel

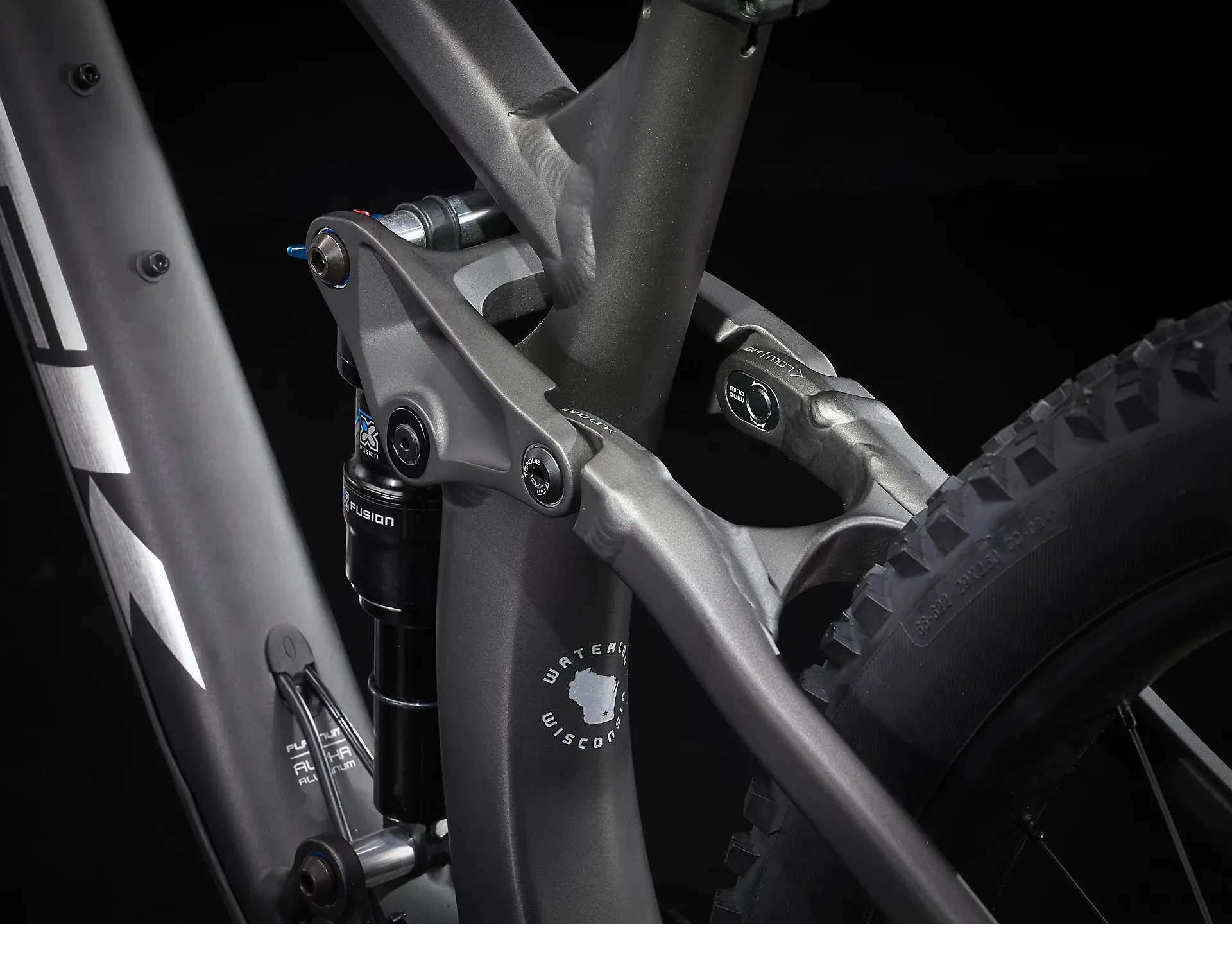

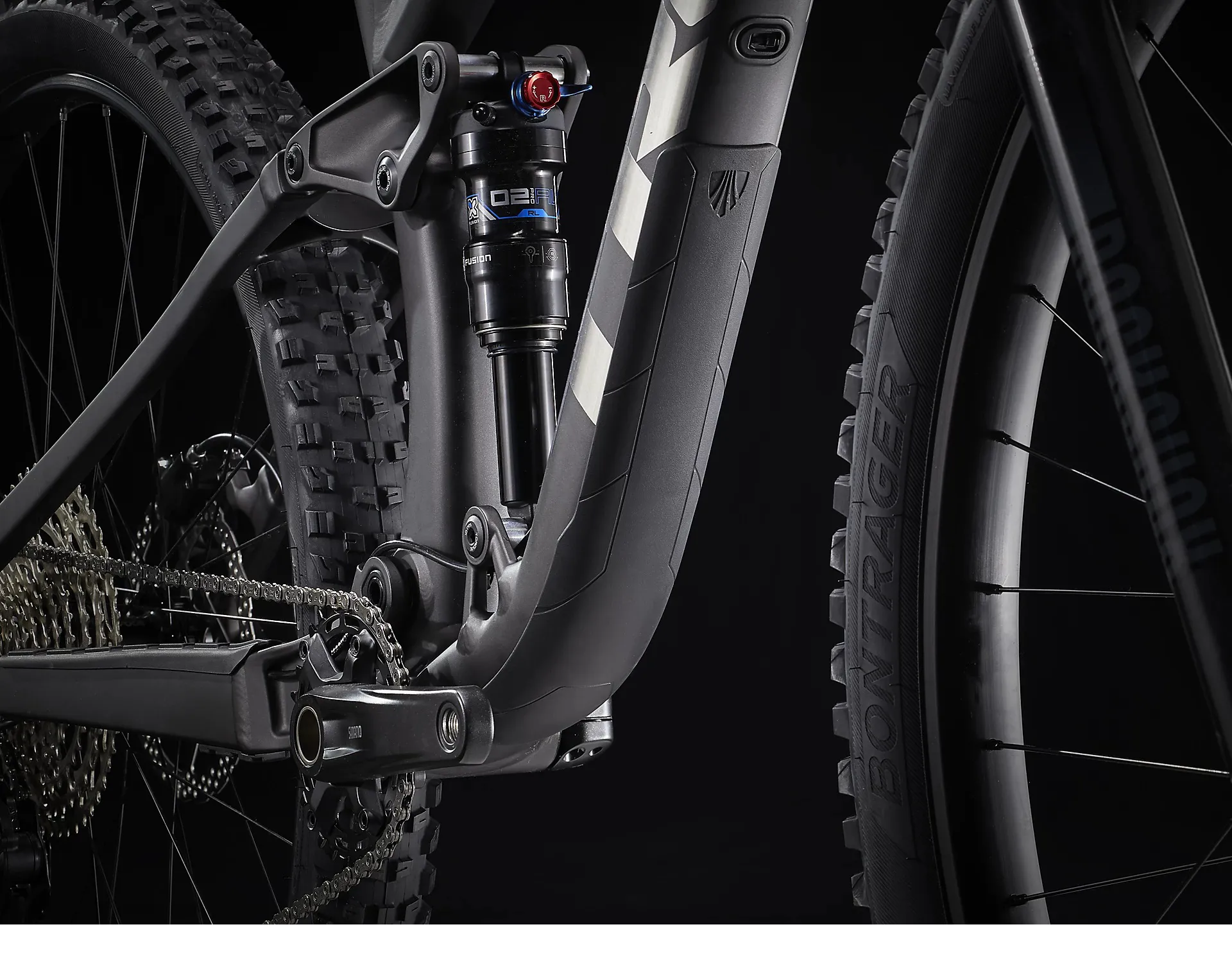

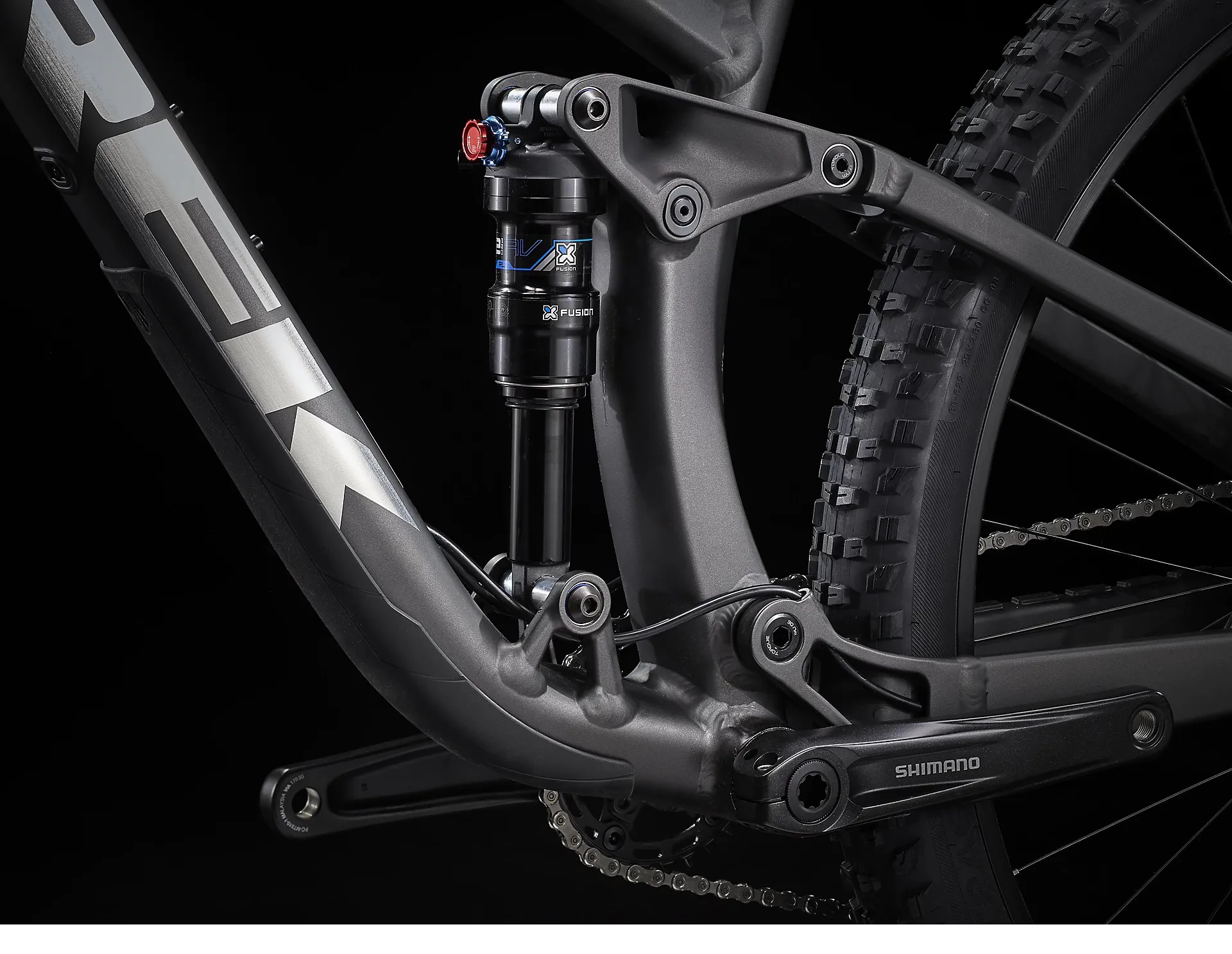

  • Shock
  • Size: XS , S
    X-Fusion Pro 2, 2-position damper, 210 mm x 52.5 mm
  • Size: S , M , ML , L , XL , XXL
    X-Fusion Pro 2, 2-position damper, 210 mm x 55 mm
  • Max compatible fork travel
    150mm (561mm axle-to-crown)
  • Hub front
    Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
  • Hub rear
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve

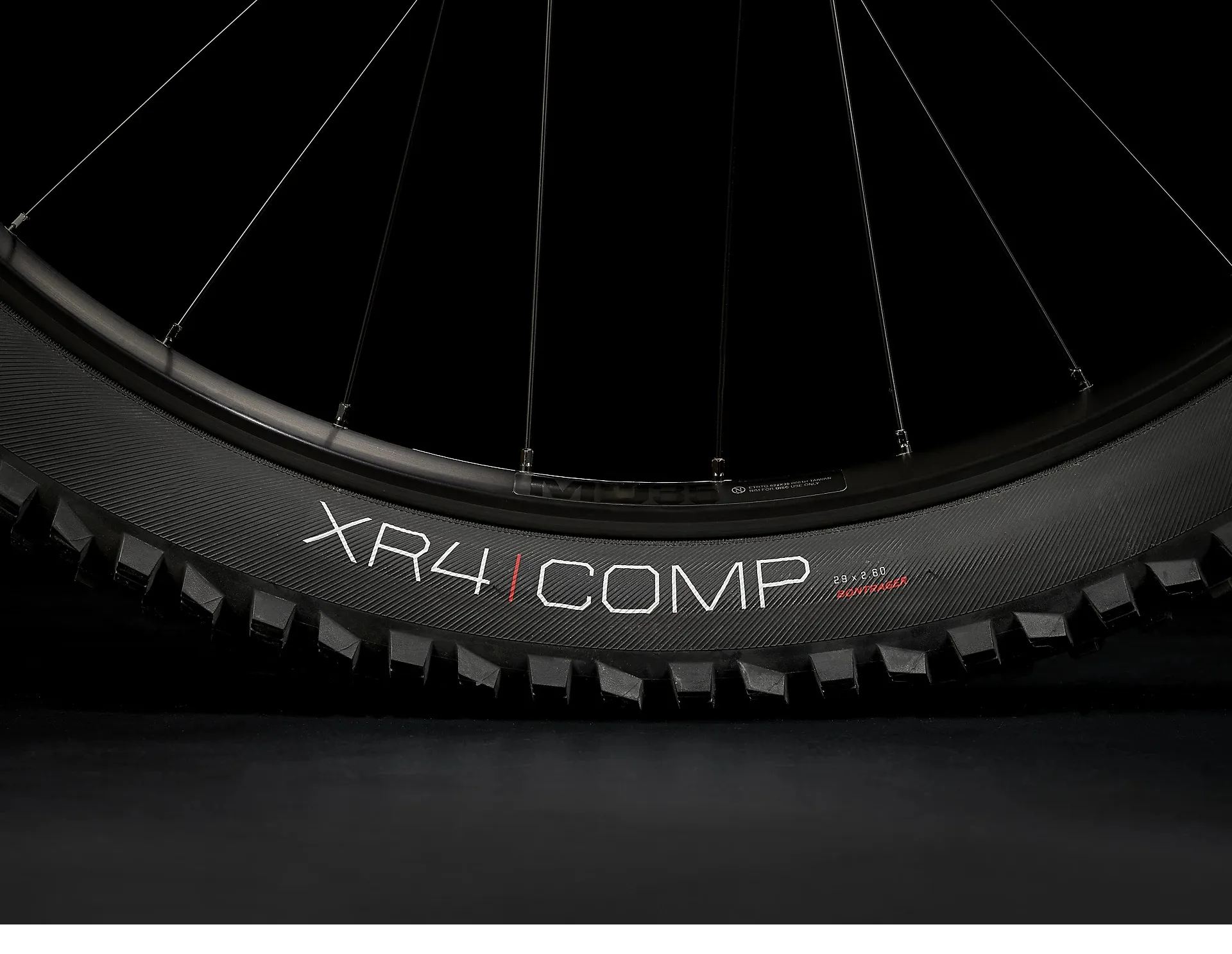

  • Tyre
  • Size: XS , S
    Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60"
  • Size: S , M , ML , L , XL , XXL
    Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60''
  • Size: S , M , ML , L , XL , XXL
    Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.60" Fork: See manufacturer
  • Drivetrain
    Shifter

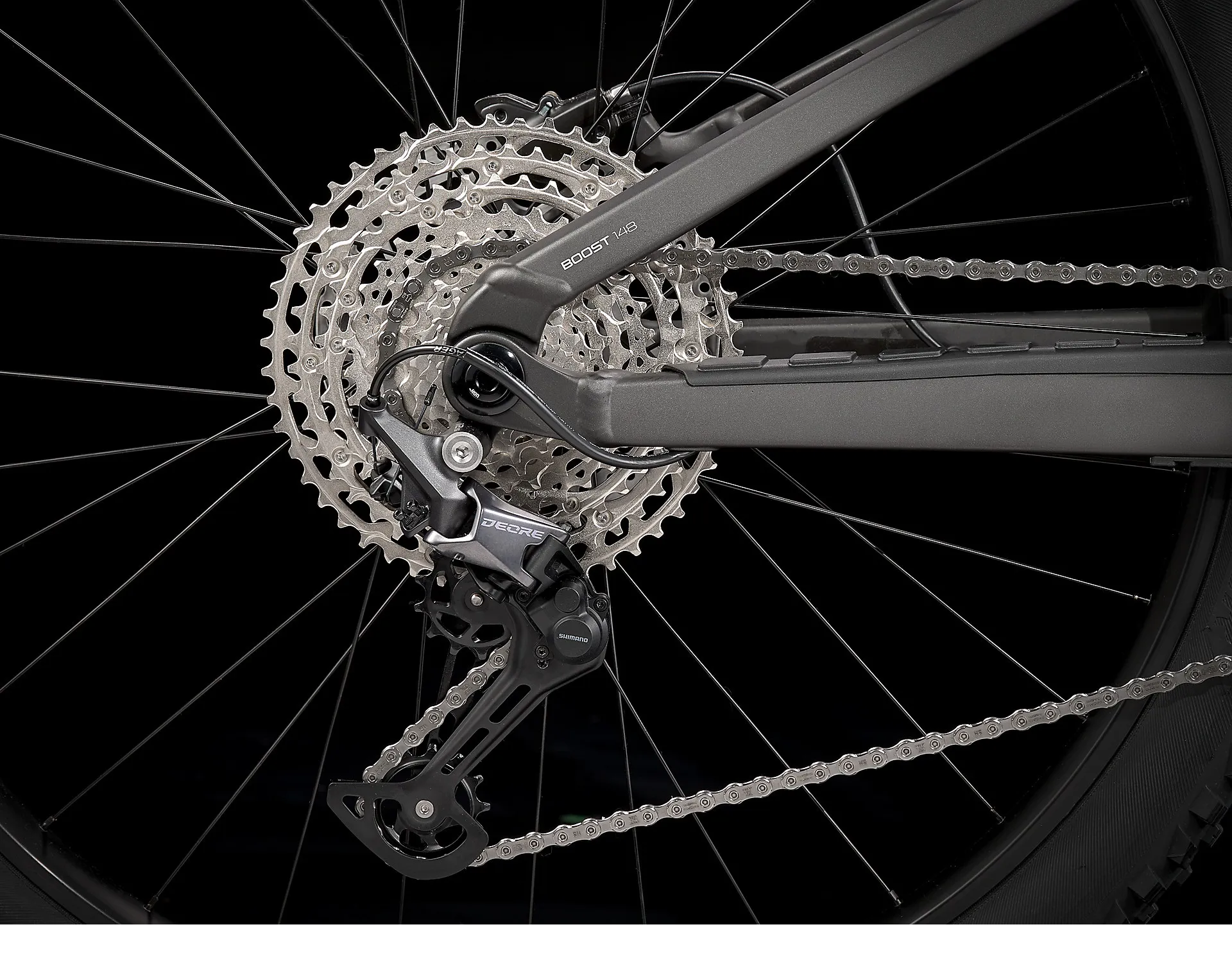

  • Rear derailleur
    Shimano Deore M6100, long cage

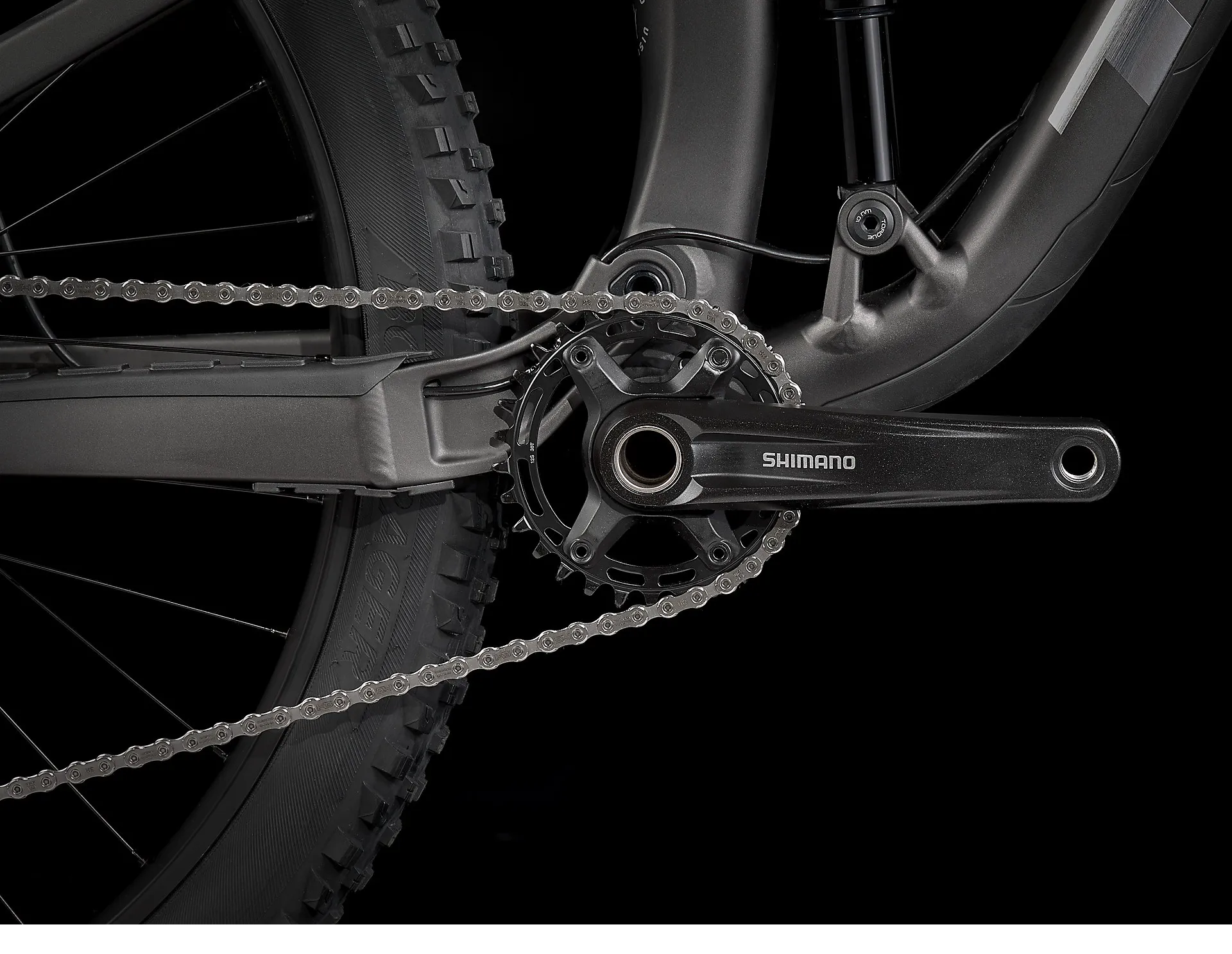

  • Crank
  • Size: XS , S , M , ML , L
    Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length
  • Size: M , ML , L , XL , XXL
  • Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length
  • Bottom bracket
    Shimano MT500, 92 mm, PressFit
  • Cassette
    Shimano Deore M6100, 10-51, 12-speed
  • Chain
    Shimano Deore M6100, 12-speed
  • Max. chainring size
    34T
  • Saddle
    Bontrager Arvada, steel rails, 138 mm width
  • Seatpost
  • Size: XS , S
    TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
  • Size: M , ML , L , XL , XXL
    TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
  • Handlebar
    Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
  • Grips
    Bontrager XR Trail Comp, nylon lock-on

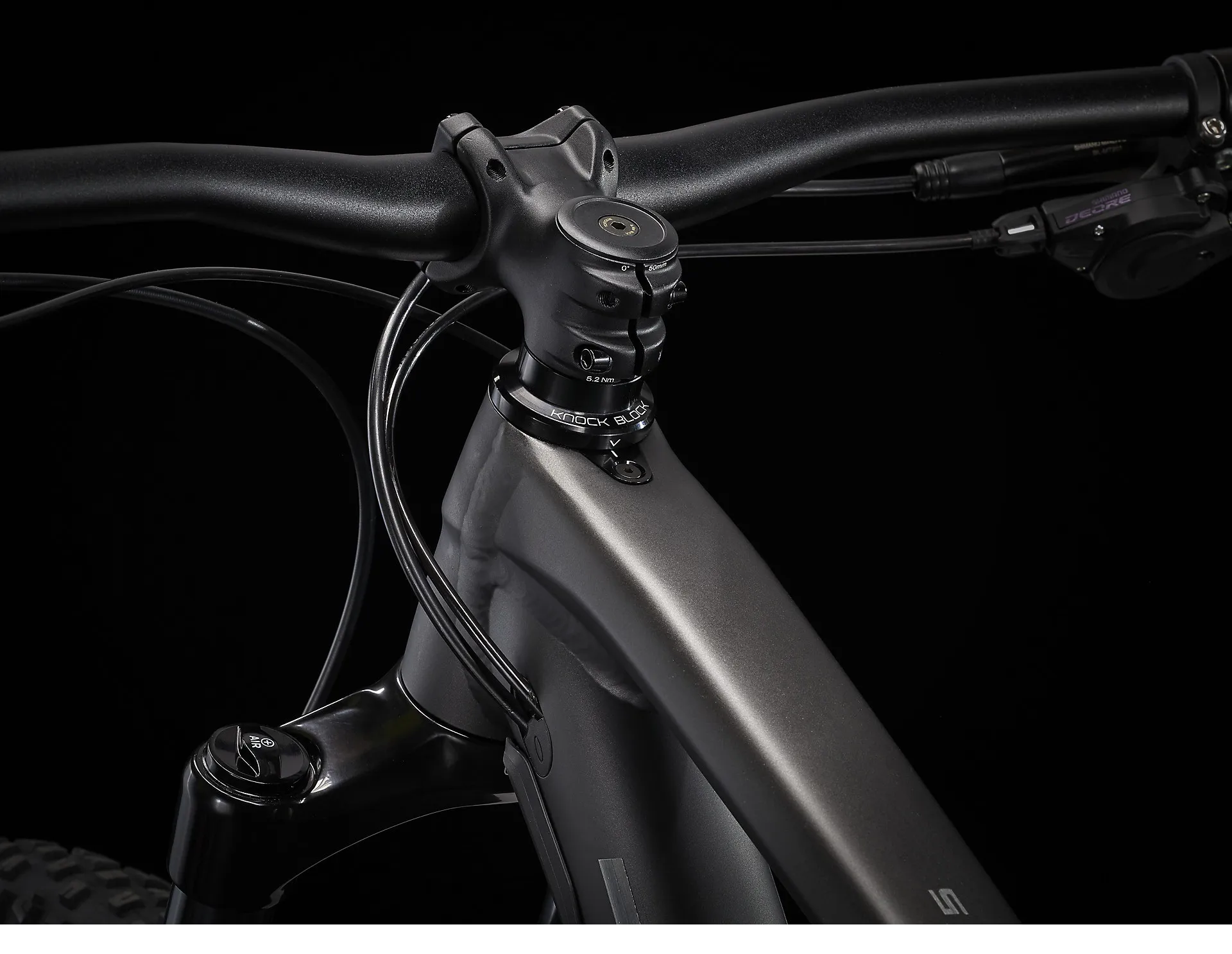

  • Stem
    Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
  • Head set
    Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

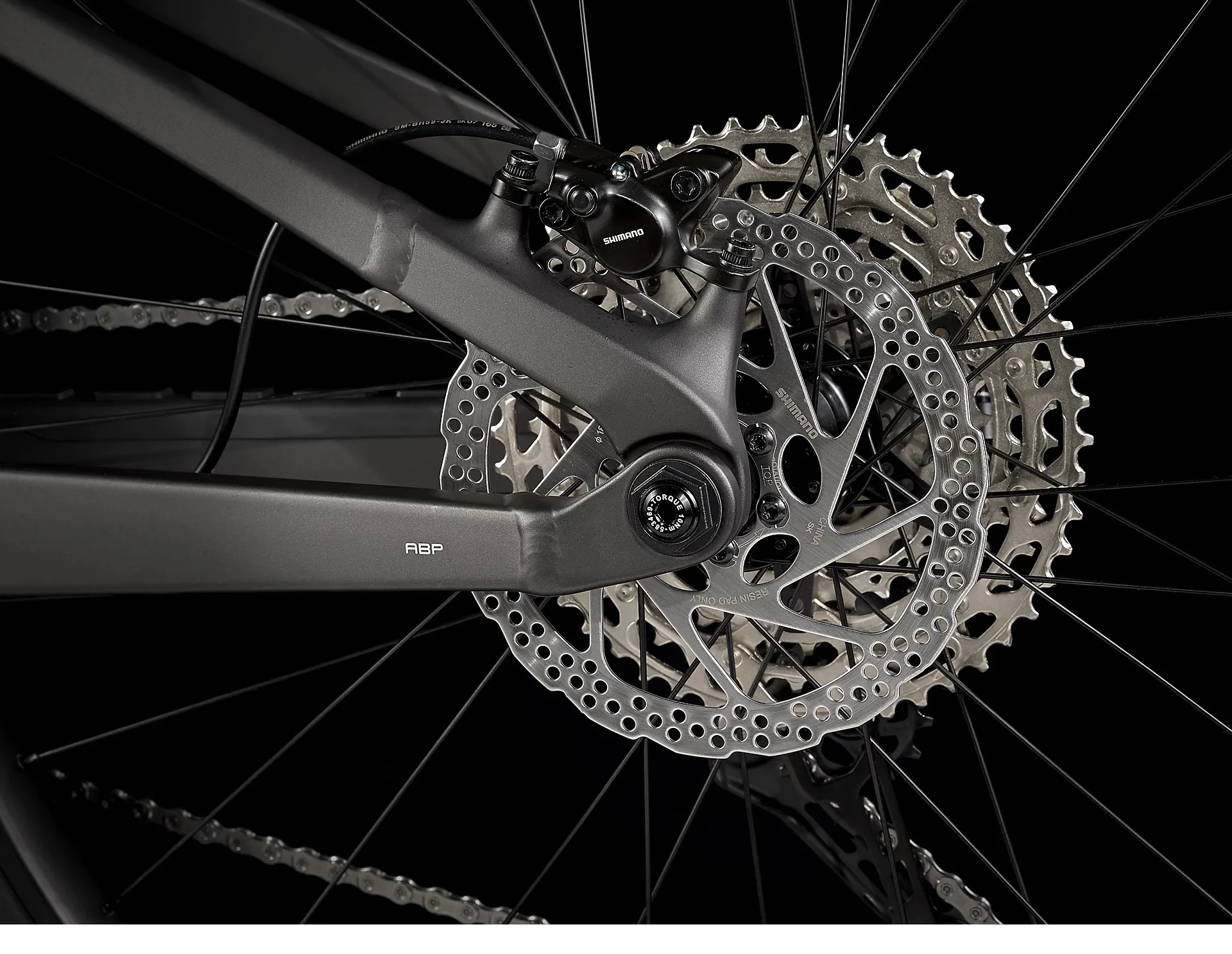

  • Brake
    Shimano hydraulic disc, MT201 lever, MT200 calliper
  • Brake rotor
    Shimano RT56, 6-bolt, 180 mm
