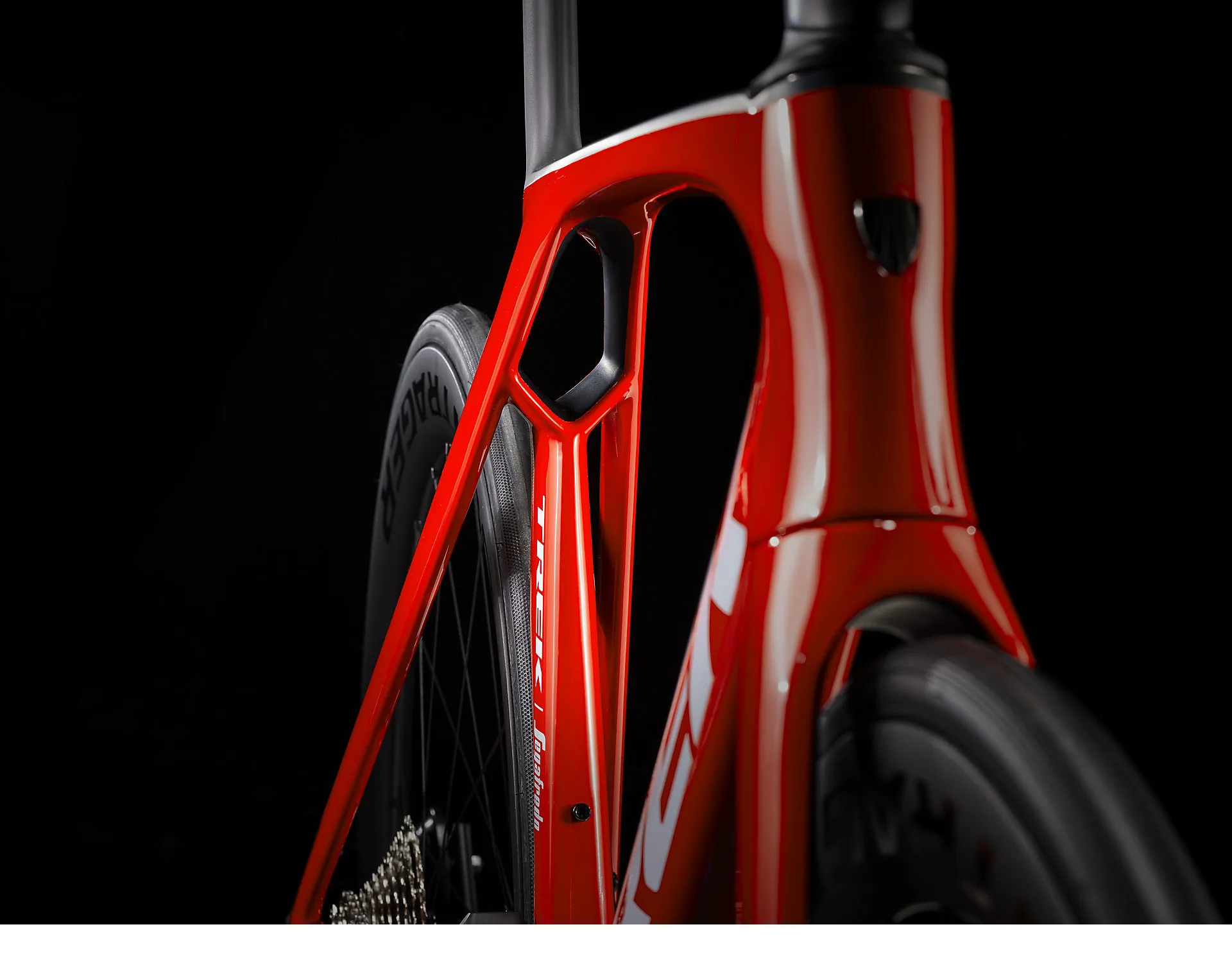

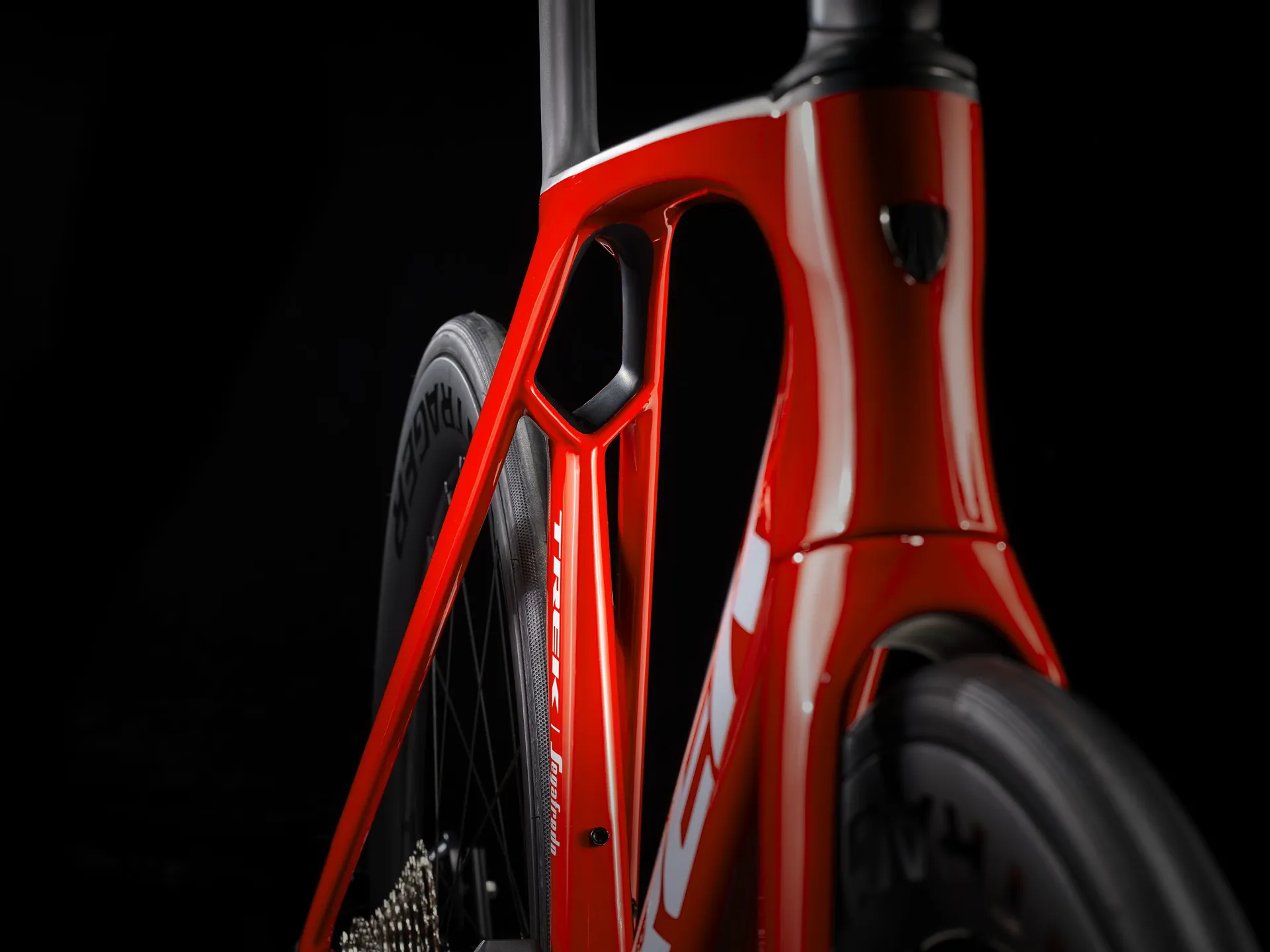

Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Fork
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Frame fit
H1.5 Race
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru-axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Tyre
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
Max tyre size
28c
Shifter
Shimano 105 R7170, 12-speed
Front derailleur
Shimano 105 R7150, braze-on, down swing
Rear derailleur
Shimano R7150
Size:47
Shimano 105 R7100, 50/34, 165mm length
Size:50, 52
Shimano 105 R7100, 50/34, 170mm length
Size:54, 56, 58
Shimano 105 R7100, 50/34, 172.5mm length
Size:60, 62
Shimano 105 R7100, 50/34, 175mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7100, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 50T, 2x: 54/40
Size:47, 50, 52
Bontrager Aeolus P2 Elite, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager Aeolus Elite, austenite rails, 145 mm width
Size:47, 50, 52, 54
Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, short length
Size:56, 58, 60, 62
Madone aero carbon internal seat mast cap, integrated light mount, 0 mm offset, tall length

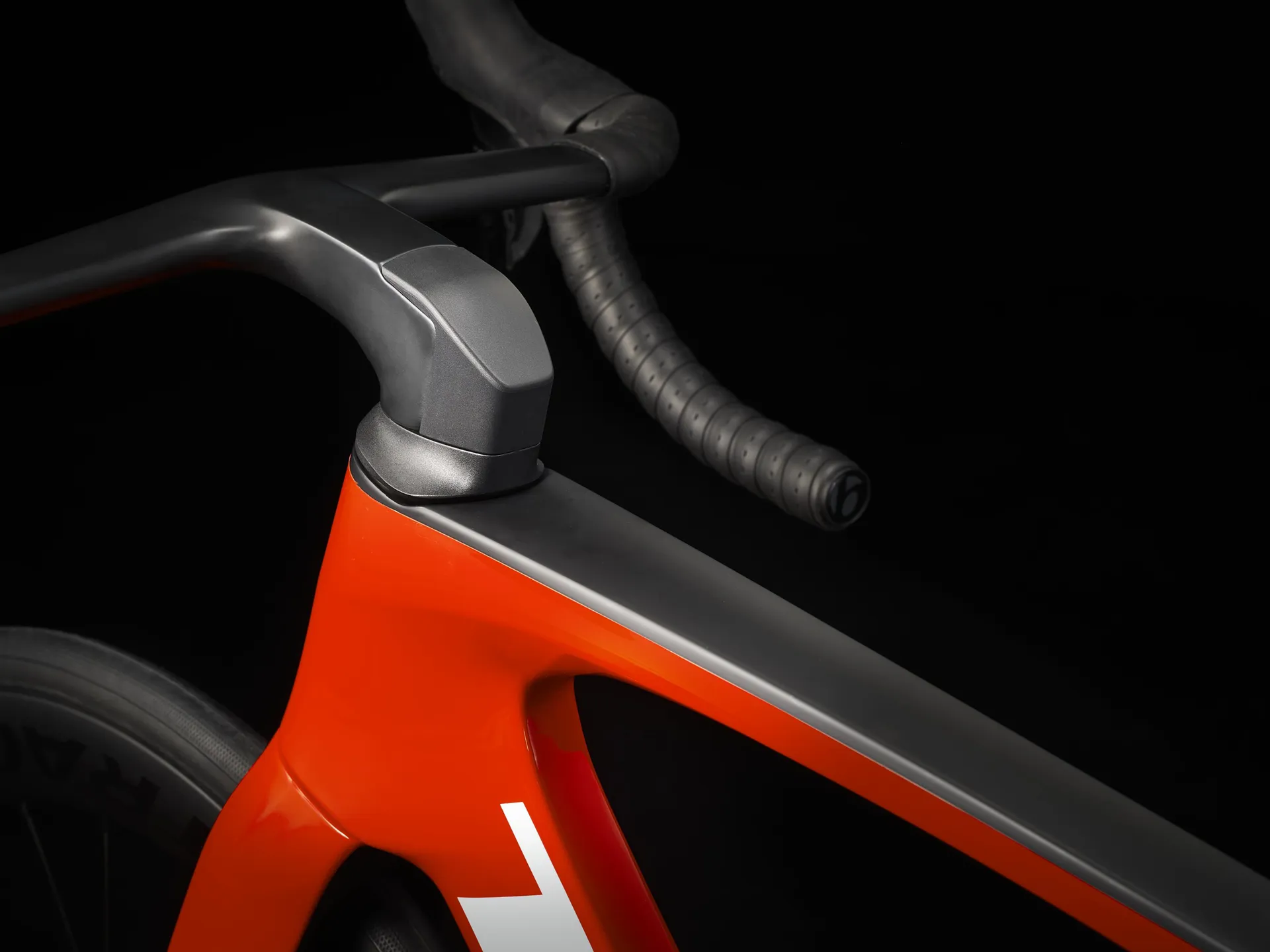

Size:47
Madone Integrated handlebar/stem, OCLV Carbon, 380mm width, 80mm stem length
Size:50, 52
Madone Integrated handlebar/stem, OCLV Carbon, 400mm width, 90mm stem length
Size:54
Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 90mm stem length
Size:56, 58
Madone Integrated handlebar/stem, OCLV Carbon, 420mm width, 100mm stem length
Size:60, 62
Madone Integrated handlebar/stem, OCLV Carbon, 440mm width, 110mm stem length
Handlebar tape
Bontrager Supertack Perf tape
Brake rotor
Shimano SM-RT70, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Charger
Charging cable included
Weight
56 - 7.75 kg / 17.09 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
