Frame

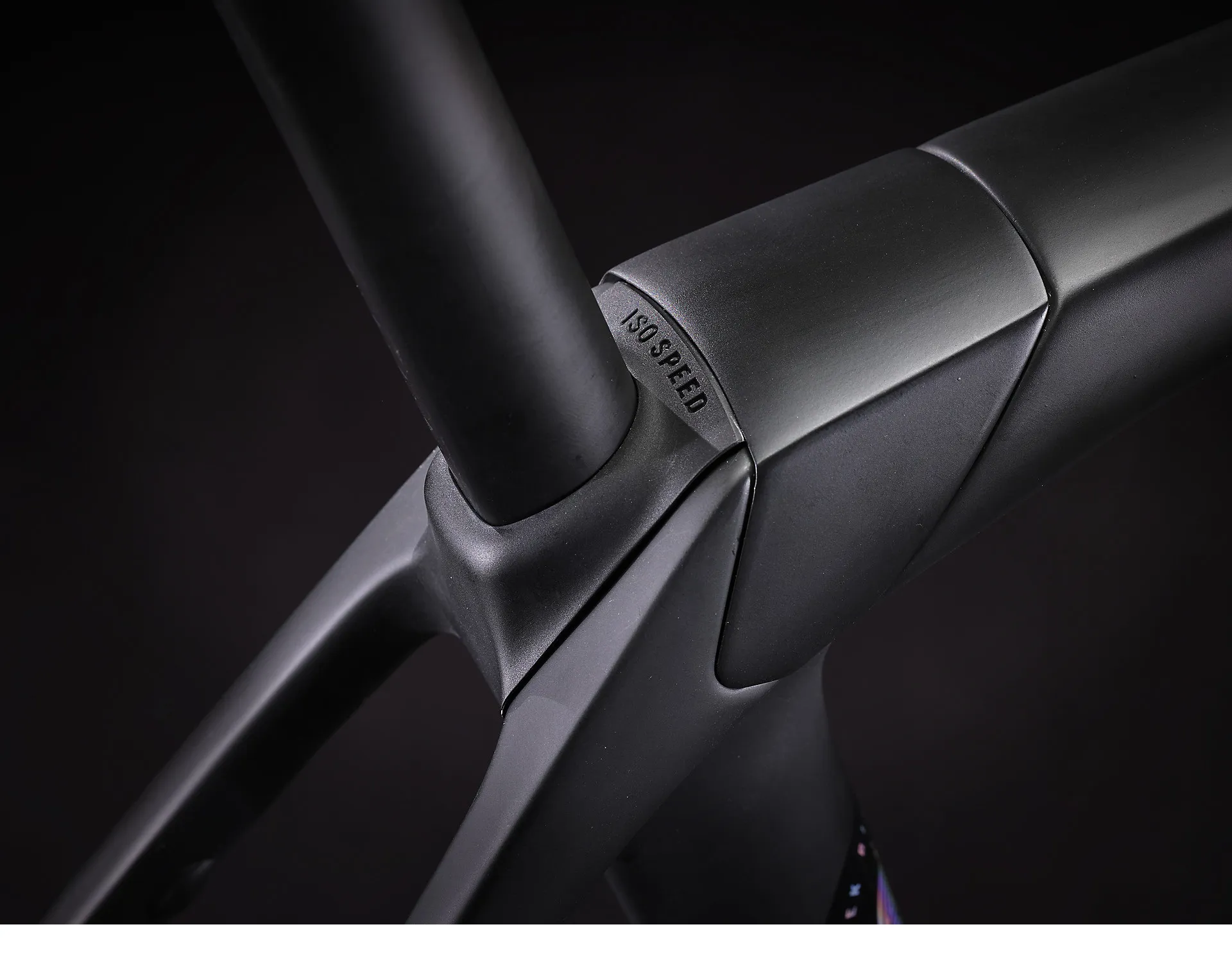

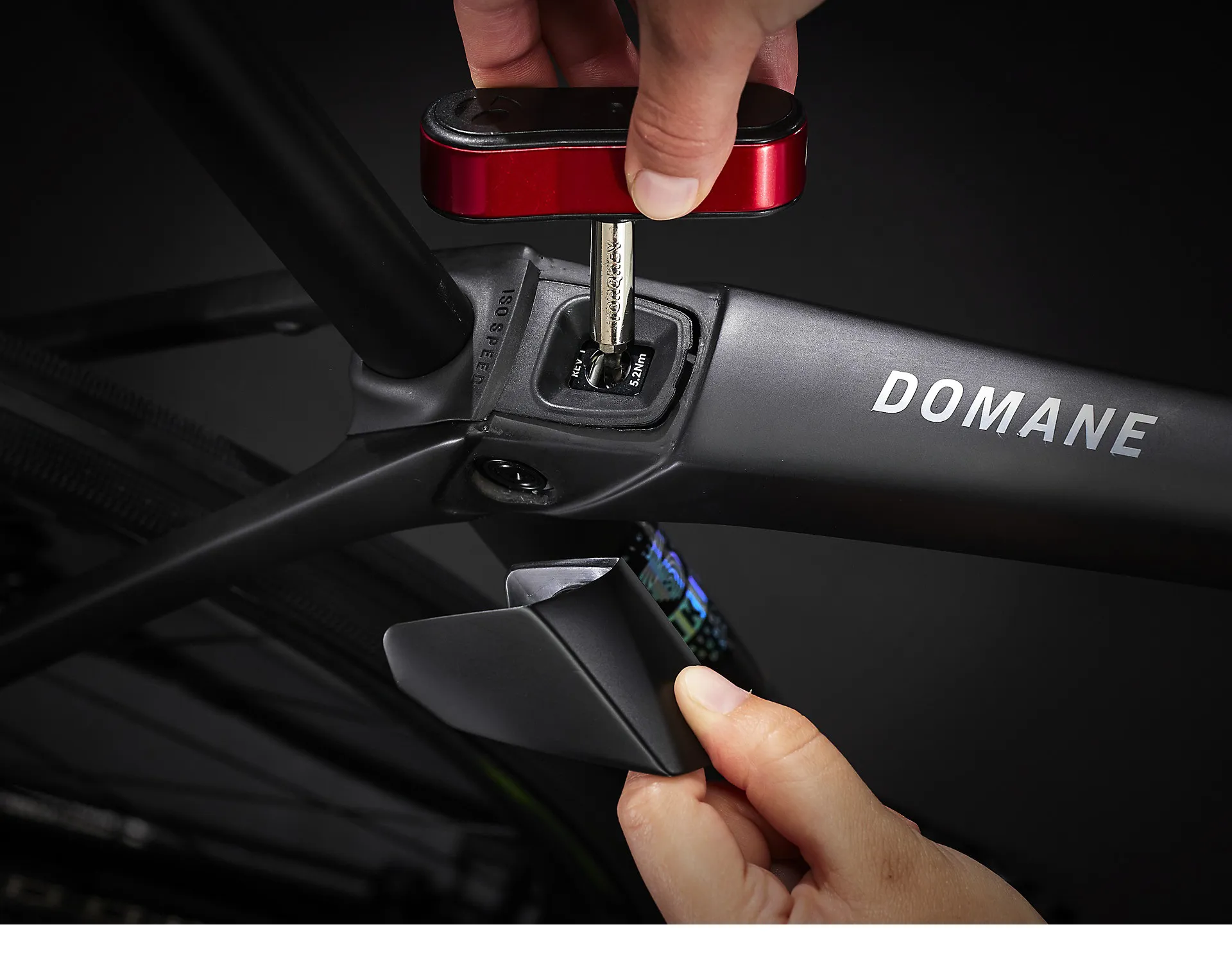

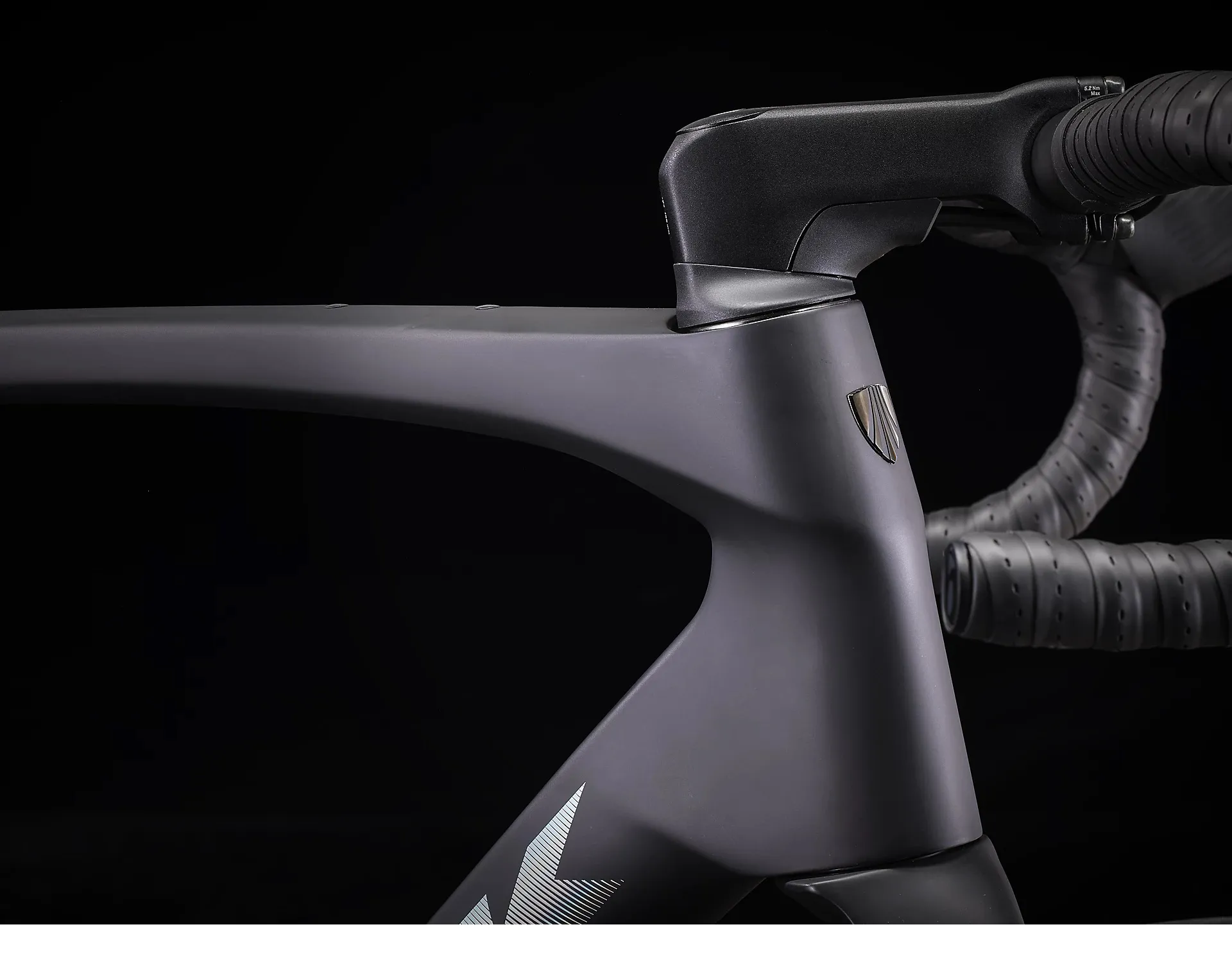

800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable leverBontrager Switch thru-axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 cBontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager Aeolus XXX rim stripBontrager Aeolus XXX rim strip
Max tyre size
38c without mudguards, 35c with mudguards
Shifter
SRAM Rival eTap AXS, 12-speed
Front derailleur
SRAM Rival eTap AXS, braze-on
Rear derailleur
SRAM Rival eTap AXS
*Crank
Size: 47, SRAM Rival AXS Power Meter, 46/33, DUB spindle, 165 mm length
Size: 50/52, SRAM Rival AXS Power Meter, 46/33, DUB spindle, 170 mm length
Size: 54/56, SRAM Rival AXS Power Meter, 46/33, DUB spindle, 172.5 mm length
Size: 58/60/62, SRAM Rival AXS Power Meter, 46/33, DUB spindle, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12-speed
Chain
SRAM Rival, 12-speed
Max. chainring size
2x: 52/36
*Saddle
Size: 47/50/52, Bontrager P3 Elite, short nose, 155 mm width
Size: 54/56/58/60/62, Bontrager P3 Elite, short nose, 145 mm width
*Seatpost
Size: 47/50/52/54/56, Domane carbon seat post, KVF2 shaping, 20 mm offset, 280 mm length
Size: 58/60/62, Domane carbon seat post, KVF2 shaping, 20 mm offset, 320 mm length

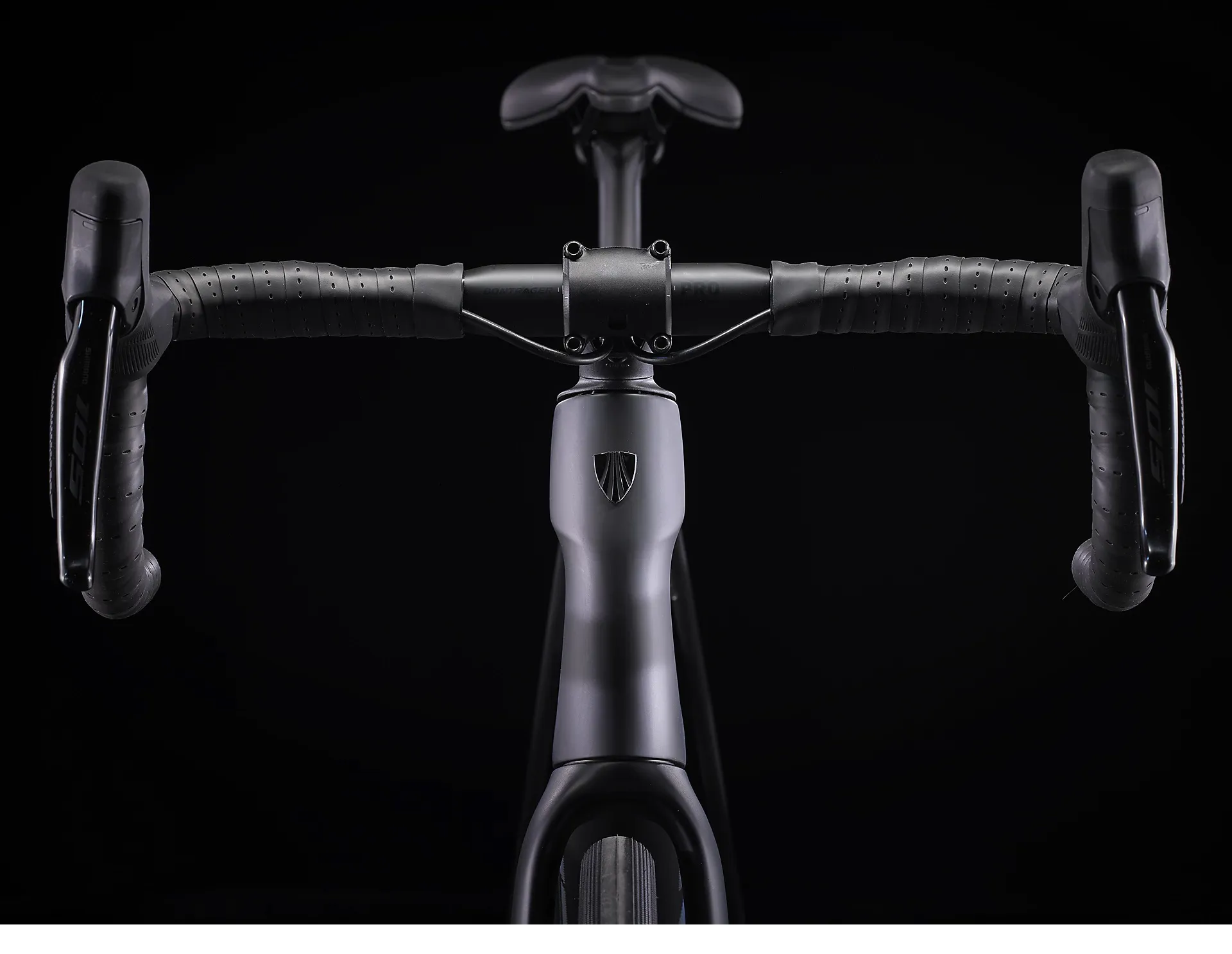

*Handlebar
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm
Size: 50/52, Bontrager Pro IsoCore VR-SF, 40cm
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: 47, Bontrager RCS Pro, 7-degree, 70 mm length
Size: 50, Bontrager RCS Pro, 7-degree, 80 mm length
Size: 52/54, Bontrager RCS Pro, 7-degree, 90 mm length
Size: 56/58, Bontrager RCS Pro, 7-degree, 100 mm length
Size: 60/62, Bontrager RCS Pro, 7-degree, 110 mm length
Brake rotor
SRAM Paceline, rounded, CenterLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Battery
SRAM eTap battery pack (with charger)

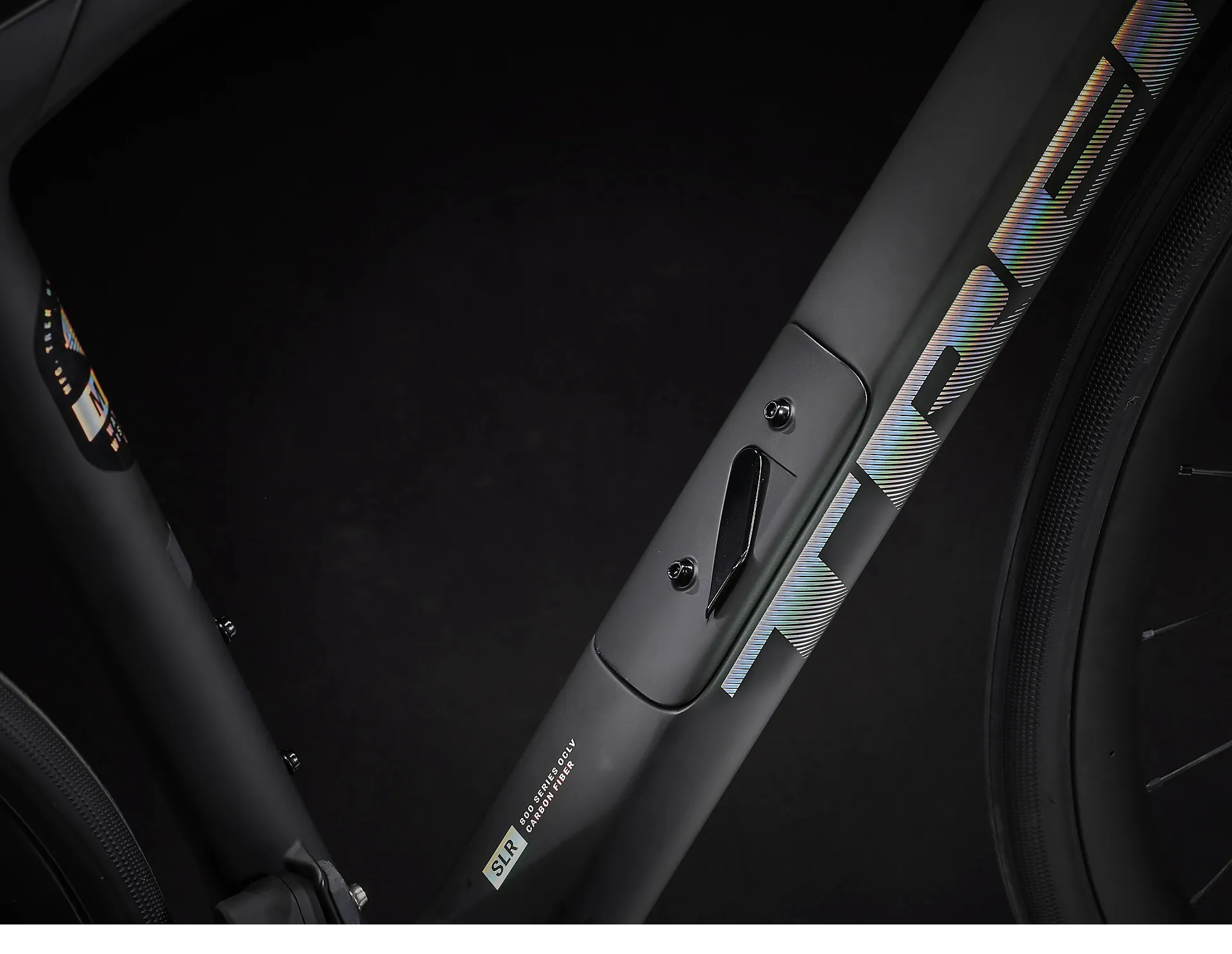

Bag

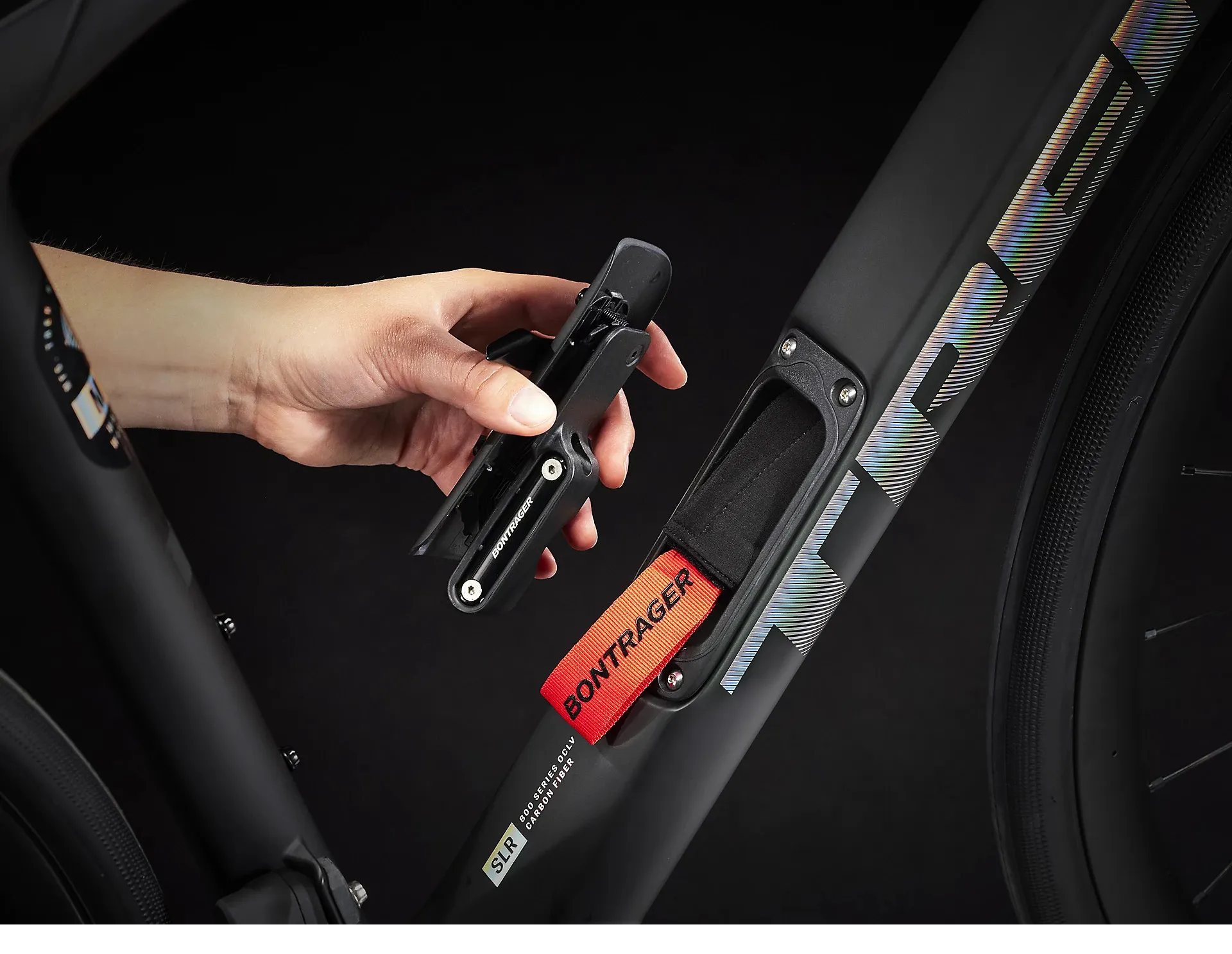

Bontrager BITS Internal Frame Storage BagBontrager BITS Internal Frame Storage Bag
Weight
56 - 8.35 kg / 18.41 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
