Frame

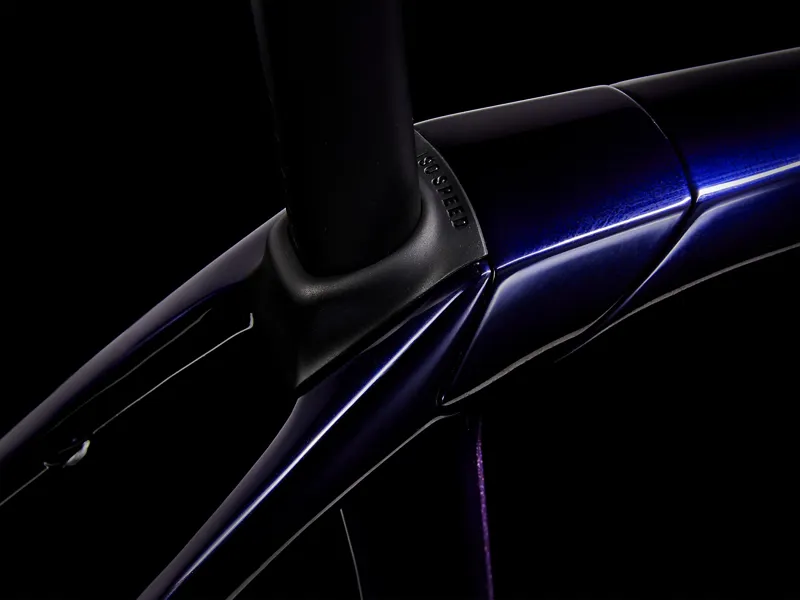

500 Series OCLV Carbon, rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Hub front
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Hub rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R freehub, 142x12 thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
38c
Shifter
SRAM Rival eTap AXS, 12-speed
Front derailleur
SRAM Rival eTap AXS, braze-on
Rear derailleur
SRAM Rival eTap AXS
Size:44, 47
SRAM Rival, 46/33, DUB, 165 mm length
Size:50, 52
SRAM Rival, 46/33, DUB, 170 mm length
Size:54, 56
SRAM Rival, 46/33, DUB, 172.5 mm length
Size:58, 60, 62
SRAM Rival, 46/33, DUB, 175 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12-speed
Size:44, 47, 50, 52
Bontrager P3 Verse Comp, steel rails, 155 mm width
Size:54, 56, 58, 60, 62
Bontrager P3 Verse Comp, steel rails, 145 mm width
Size:44, 47, 50, 52, 54, 56

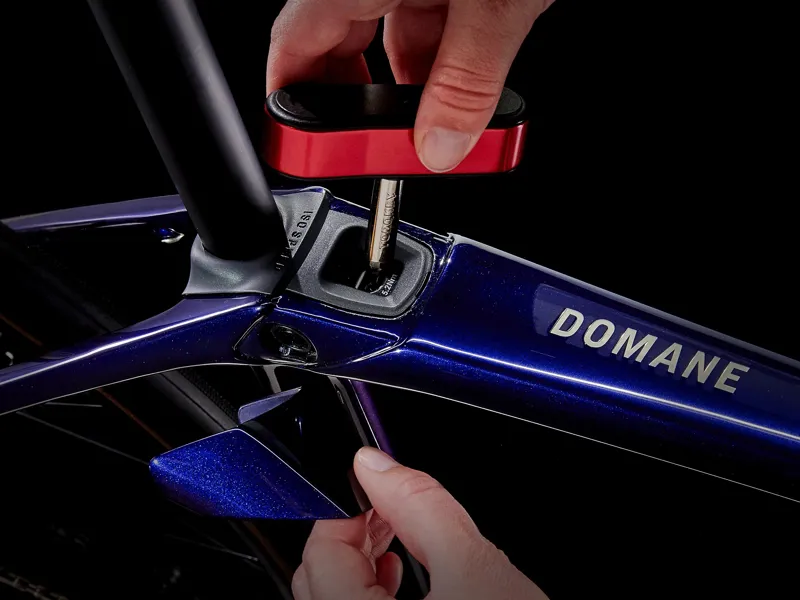

Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length
Size:58, 60, 62
Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length
Size:44, 47
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 36 cm width
Size:50
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
Size:52
Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
Size:54, 56
Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width
Handlebar tape
Bontrager Supertack Perf tape
Size:44
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size:47
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size:50
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size:52, 54
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size:56, 58
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size:60, 62
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake rotor

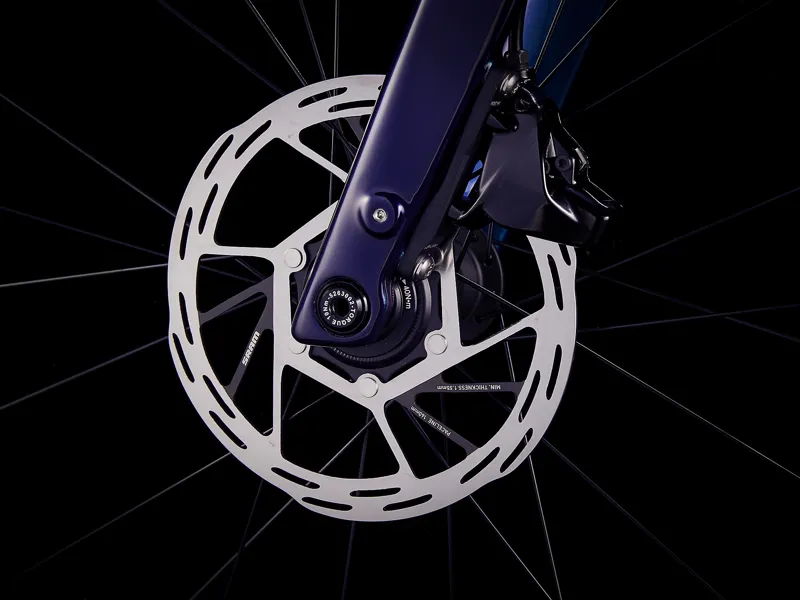

SRAM Paceline, rounded, CenterLock, 160 mm
Battery
SRAM eTap battery pack (with charger)
Bag

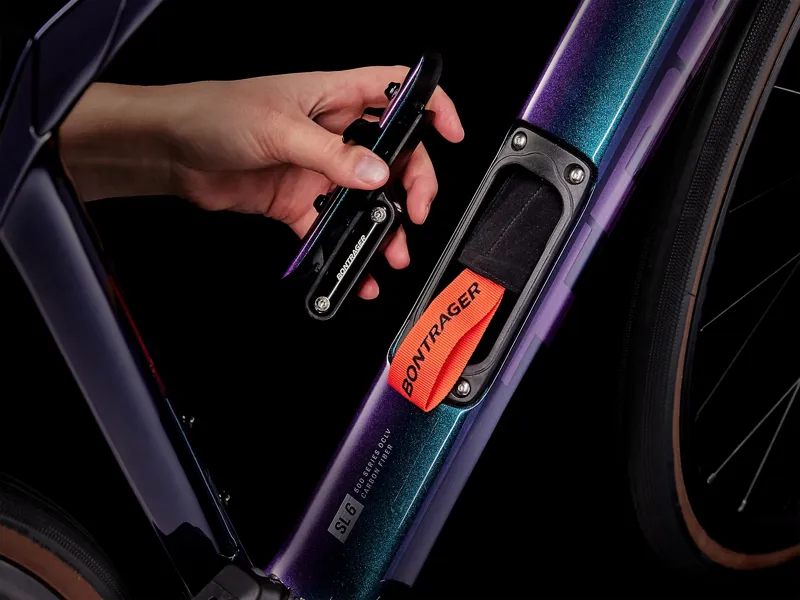

Bontrager BITS Internal Frame Storage Bag
Weight
56 - 9.14 kg / 20.16 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
