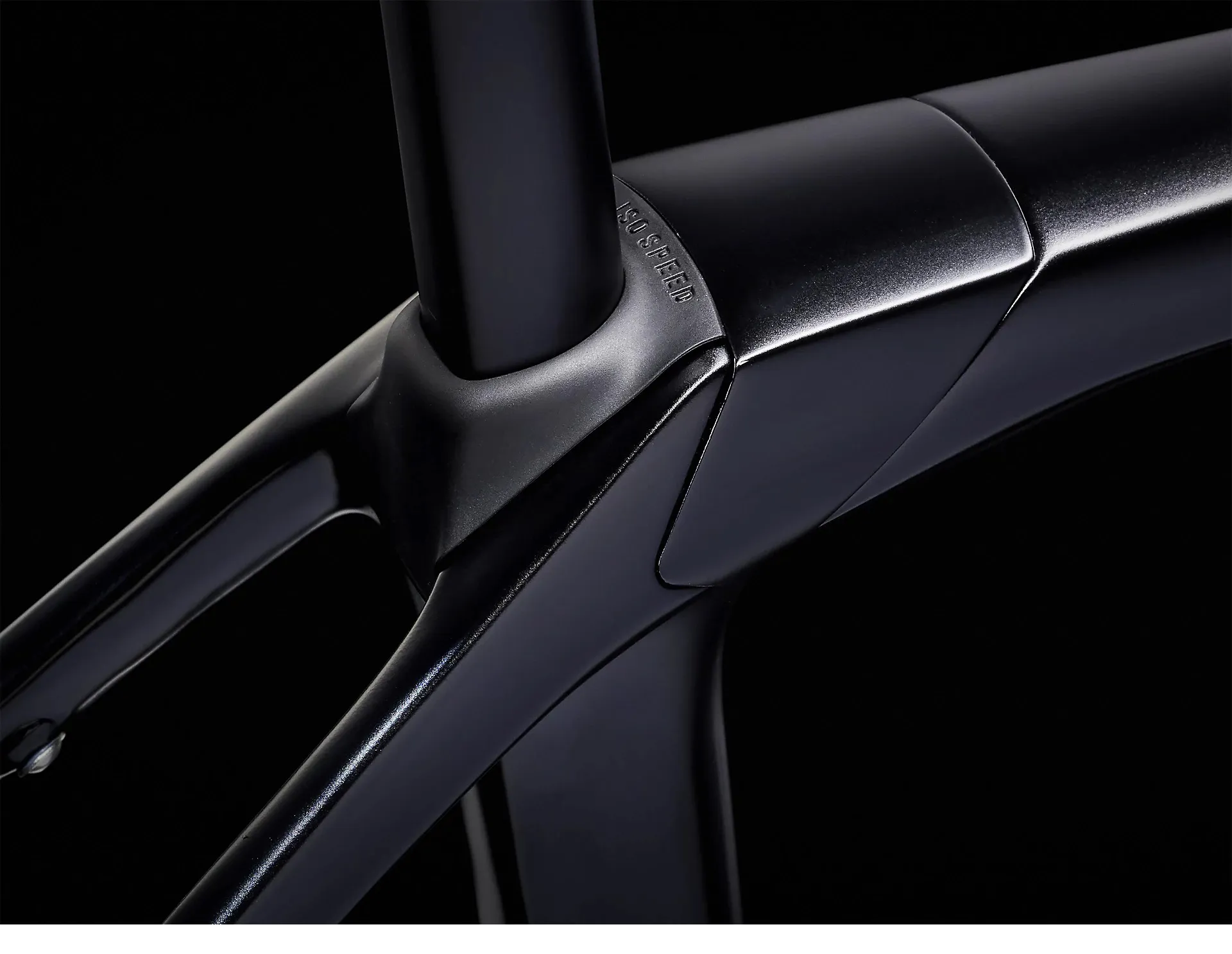

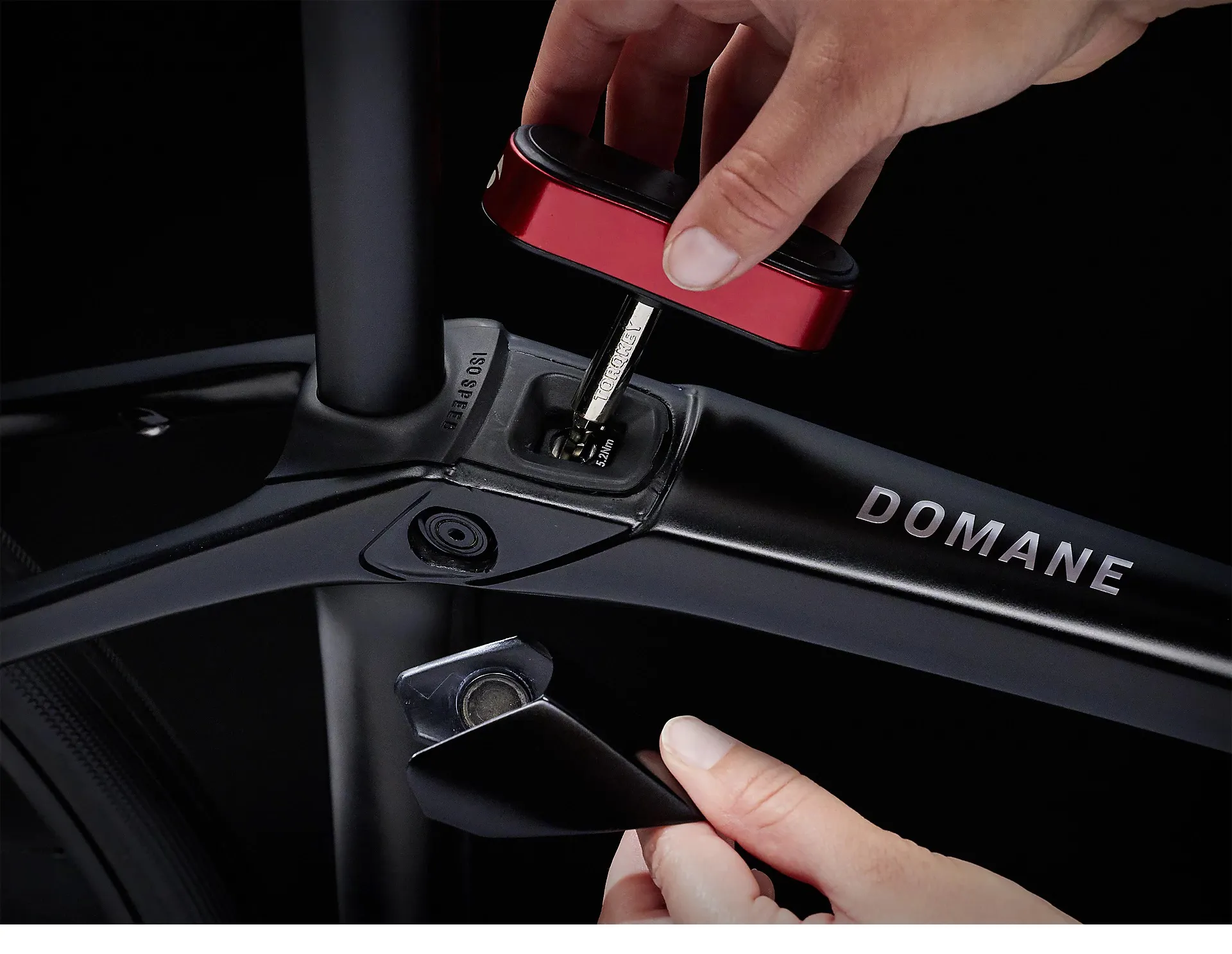

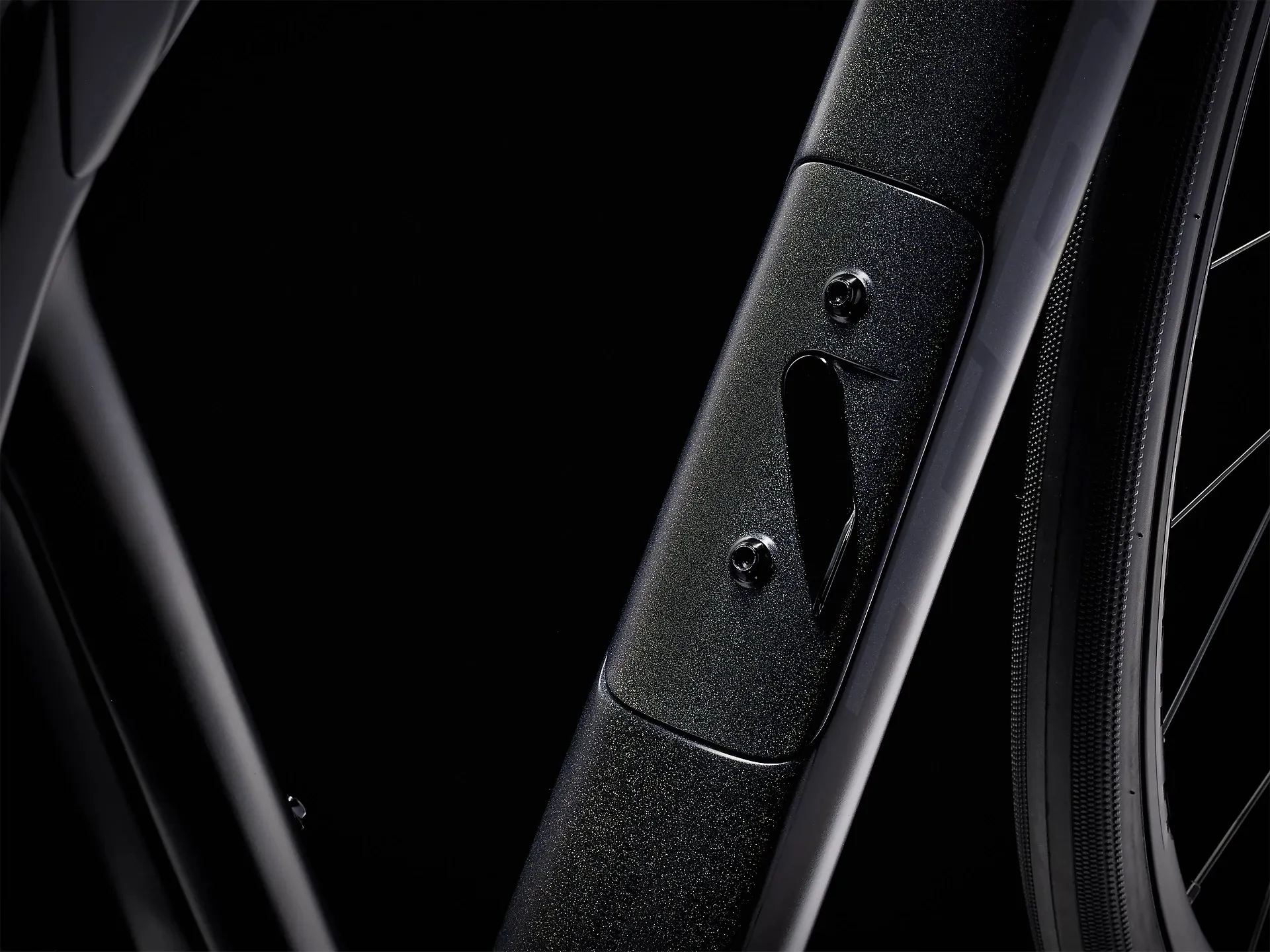

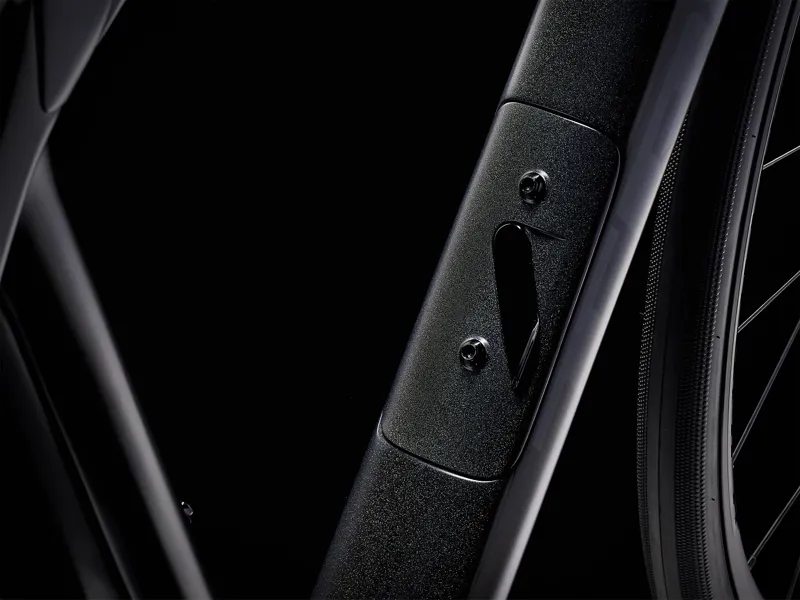

Frame | Trek 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12mm thru-axle |
Fork | Trek Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100mm thru-axle |
Bottom Bracket | Praxis, T47 threaded, internal bearing |
Stem | Bontrager RCS Pro, 7°, 70mm length (size 47), 80mm (50), 90mm (52, 54), 100mm (56, 58), 110mm (60, 62) |

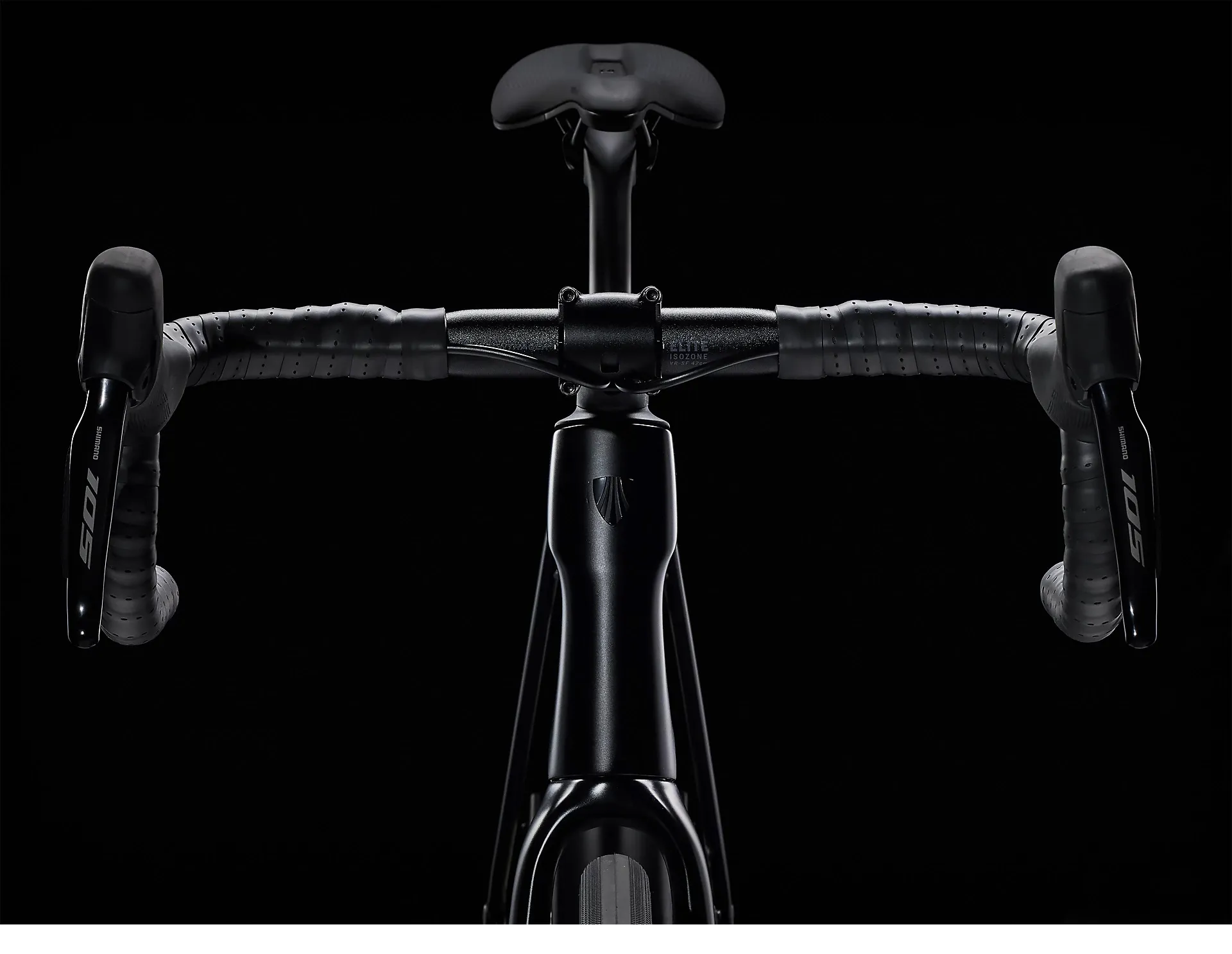

Handlebar | Bontrager Elite IsoCore alloy VR-SF, 38cm (size 47), 40cm (50, 52), 42cm (54, 56), 44cm (58, 60, 62) |
Bar Tape | Bontrager Supertack Perf tape |

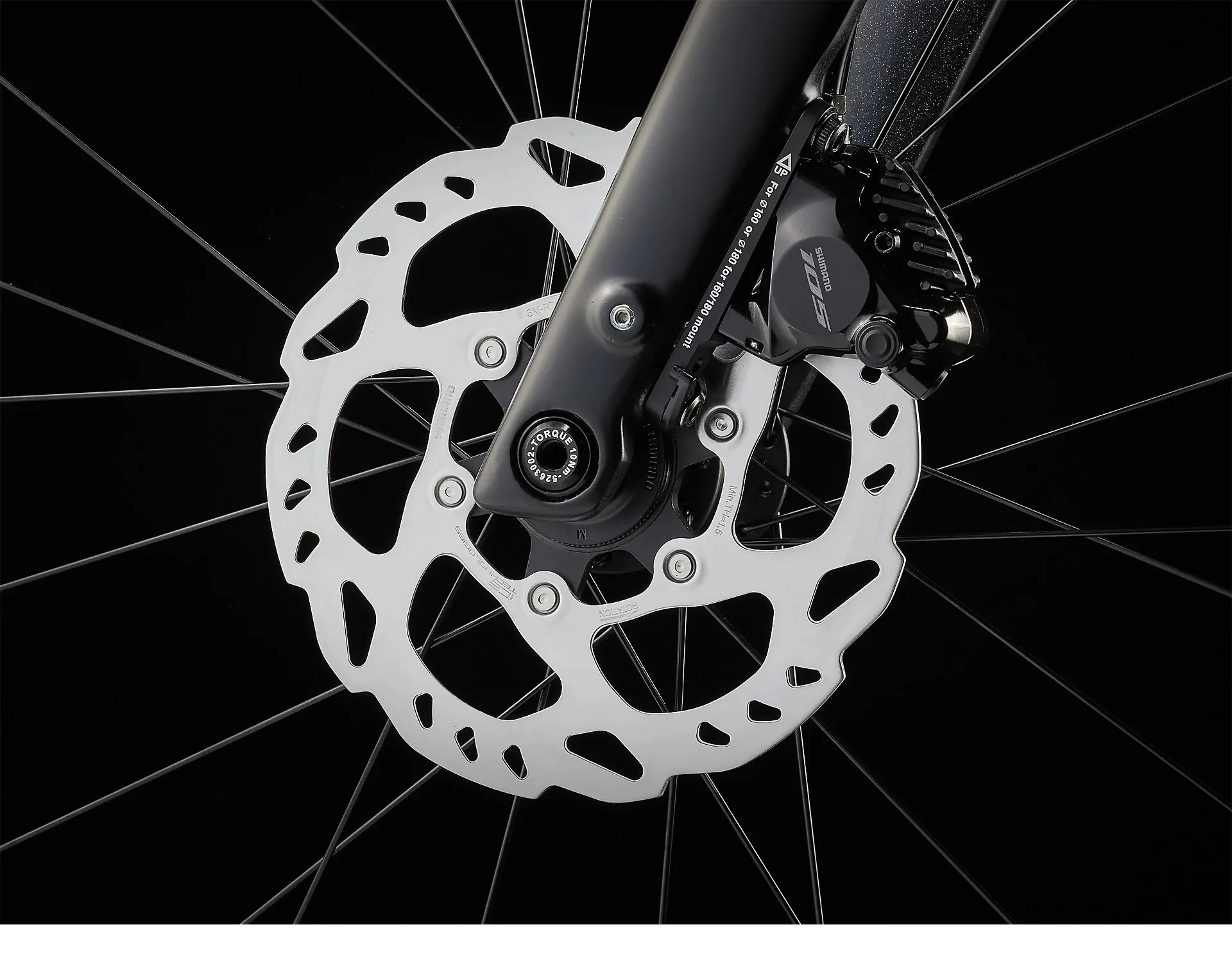

Front Brake | Shimano 105 R7100 hydraulic disc with SM-RT70, Center Lock rotor 160mm |
Rear Brake | Shimano 105 R7100 hydraulic disc with SM-RT70, Center Lock rotor 160mm |
Brake Levers | Shimano 105 R7170 hydraulic |
Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
Rear Derailleur | Shimano 105 R7150 Di2 |
Shift Levers | Shimano 105 R7170 Di2, 12-speed |
Chain | Shimano SLX M7100, 12-speed |
Cassette | Shimano 105 7100, 11-34, 12-speed |

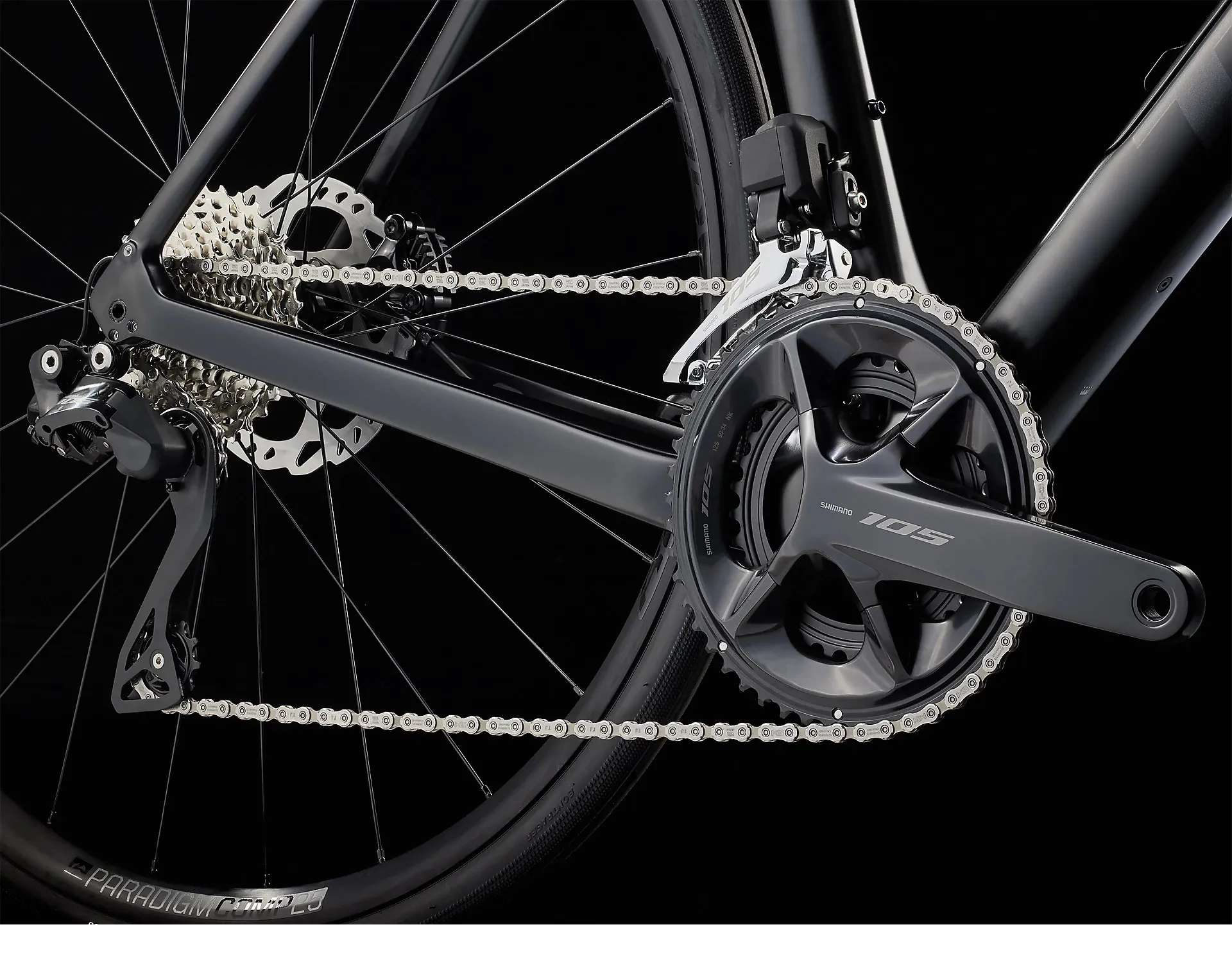

Crankset | Shimano 105 R7100, 50/34, 165mm length (size 47) 170mm (50, 52), 172.5mm (54, 56), 175mm 58, 60, 62) |
Front Wheel | Bontrager Paradigm Comp 25, tubeless-ready, 25mm rim width, 100x12mm thru-axle |
Rear Wheel | Bontrager Paradigm Comp 25, tubeless-ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12mm thru-axle |
Front Tyre | Bontrager R3 Hard-Case Lite, tubeless-ready, aramid bead, 120 tpi, 700x32c |
Rear Tyre | Bontrager R3 Hard-Case Lite, tubeless-ready, aramid bead, 120 tpi, 700x32c |
Saddle | Bontrager P3 Comp, short nose, 155mm width (size 47, 50, 52), 145mm (54, 56, 58, 60, 62) |
Seatpost | Trek Domane carbon seat post, KVF2 shaping, 20mm offset, 280mm length (size 47, 50, 52, 54, 56), 320mm (58, 60, 62) |
Pedals | Sold Seperately |

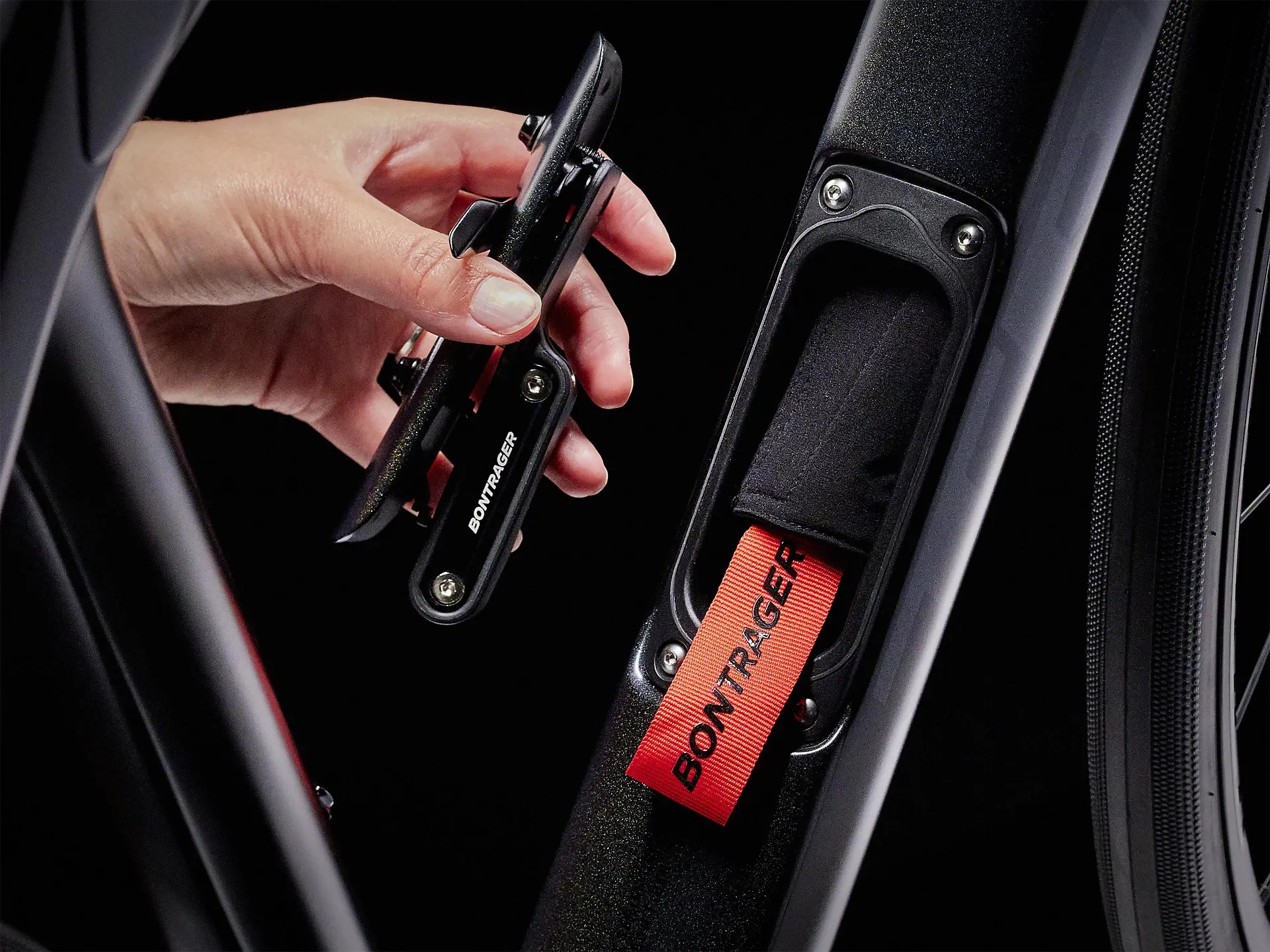

Accessories | Bontrager BITS internal frame storage bag |
Manufacturer claimed weight | 8.90kg size 56 |
