Team bahrain victorious put the fifth generation scultura thoroughly through its paces, winning mountain top stages of the tour de france and the vuelta a espana before the bike was even launched.
Team bahrain victorious put the fifth generation scultura thoroughly through its paces, winning mountain top stages of the tour de france and the vuelta a espana before the bike was even launched.
Merida

Merida Scultura 9000 Road Bike in Gold

£5,950.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

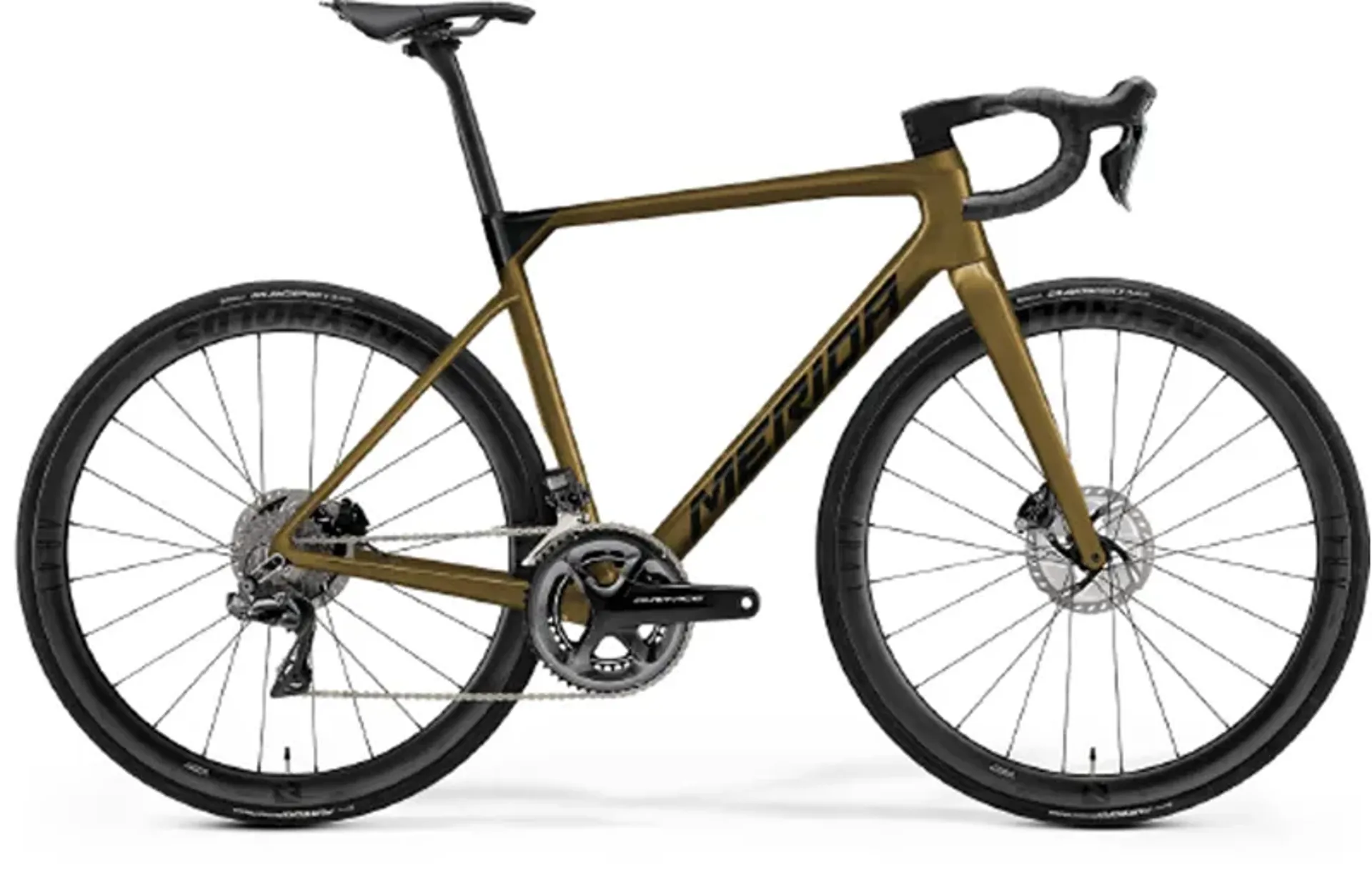

Merida Scultura 9000 Road Bike in Gold

Season:2023

Brand:Merida

Code:P-N202

Team bahrain victorious put the fifth generation scultura thoroughly through its paces, winning mountain top stages of the tour de france and the vuelta a espana before the bike was even launched.

Gen 5 keeps the scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures.The scultura now incorporates learnings from the reacto in terms of aerodynamics; they now share the same race proven geometry.

Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made.

The new scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!
Technical Information
  • Frame
    CF5 carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2 to 1 1/4 headtube. Max tyre - 30c
  • Fork
    Scultura CF5 Disc; full carbon; Max. tyre size: 700 x 30c; Disc cooler technology
  • Headset
    Merida custom
  • Stem
    Merida Team One-piece integrated; carbon. Stem length: 90mm (XXS/XS), 100mm (S), 110mm (M), 120mm (L/XL)
  • Handlebar
    Merida Team SL One-piece integrated; carbon; Width: 400mm (XXS-XS-S), 420mm (M), 440mm (L-XL)
  • Grip
    Merida Road Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano Ultegra
  • Brake Calipers
    Front: Shimano Ultegra; hydraulic disc brake caliper with Shimano MT800; 160mm rotor Rear: Shimano Ultegra; hydraulic disc brake caliper with Shimano RT800; 160mm rotor
  • Tyres
    Front: Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready Rear: Continental Grand Prix 5000S TR; 700 x 28c; Kevlar bead, folding; tubeless ready
  • Wheel Size
    700c
  • Wheels
    Rims: Part of wheelset - Reynolds AERO 46 DB, 21mm inner rim width; 46mm rim depth; carbon; Tubeless ready (tubeless tape and valves included) Spokes: part of wheelset Front Hub: Part of wheelset - Reynolds AERO 46 DB, 100x12mm; Center lock; With Merida Expert SL axle Rear Hub: Part of wheelset - Reynolds AERO 46 DB, 142x12mm; Center lock; With Merida Expert SL axle; including removable lever; 6/4mm allen key
  • Speeds
    24
  • Front Derailleur
    Shimano Ultegra Di2
  • Rear Derailleur
    Shimano Ultegra Di2
  • Shift Levers
    Shimano Ultegra disc Di2
  • Chain
    Shimano CN-M8100-12
  • Cassette
    Shimano CS-R8100; 11-30 teeth; 12 speed
  • Chainset
    Shimano Ultegra; 52-36 tooth chainset. Crank length: 165mm (XXS,XS), 170mm (S), 172.5mm (M), 175mm (L,XL)
  • Bottom Bracket
    Shimano BB72-41B, Pressfit 86.5
  • Pedals
    Not included
  • Saddle
    Prologo Scratch M5
  • Seat Post
    Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex
Sizing Information
Professional Opinion
