Experience the ultimate in cycling performance with the SCULTURA 4000.
Experience the ultimate in cycling performance with the SCULTURA 4000.
Merida

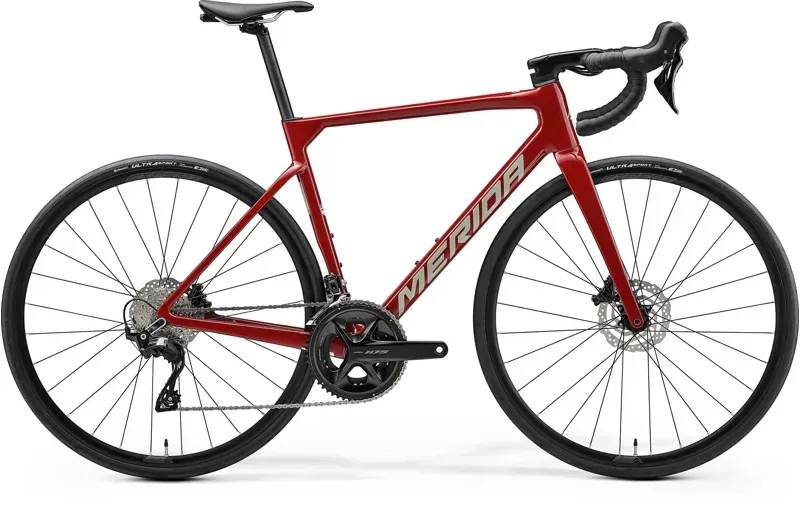

Merida Scultura 4000 Road Bike In Heritage Red/Grey

£2,300.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Merida Scultura 4000 Road Bike In Heritage Red/Grey

Season:2025

Brand:Merida

Code:P-Q365

Experience the ultimate in cycling performance with the SCULTURA 4000.

Based around the latest, super smooth 12-speed 105 groupset from Shimano and featuring their award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry bike to their latest SCULTURA frame design family. Similarly to its bigger brothers, it combines a long list of air slicing features and race-proven geometry, adapted from their REACTO family, with low weight and class-leading riding comfort creating an almost unbeatable package.

The fifth generation of their lightweight racer marries outstanding handling with improved comfort and an even more aerodynamic chassis. Thanks to incorporating selected aero details from their test and award-winning REACTO aero bike, the SCULTURA is the most aerodynamic version ever. Yet, it remains true to its lightweight, agility and rider comfort focus; in fact, it takes these factors to the next level, so far that Cycling Weekly gave it the highly sought after 'Best Value Race Bike of the Year 2024' award.

Available in CF5 and CF3 carbon frame versions, both sharing their geometry with the World Tour proven REACTO, their classic road bike combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree.

Features:

  • Lightweight CF3 carbon frame (approx. 997 g - in size M)
  • Shimano 105 12-speed groupset
  • MERIDA EXPERT SL II stem
  • MERIDA EXPERT SL handlebar
  • MERIDA EXPERT SL wheelset
  • MERIDA EXPERT CC carbon seat post
  • DISC COOLER technology
Technical Information
  • Frame
    CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2 to 1 1/4 headtube. Max tyre size - 30c
  • Fork
    Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
  • Headset
    Merida Team SL (OP-203 neck)
  • Stem
    Merida Expert SL 2PII; aluminium; -9 degree rise -Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
  • Handlebar
    Merida Expert SLII; aluminium; 380mm(XXS-XS-S), 400mm (M-L-XL)
  • Grip
    Merida Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano 105
  • Brake Calipers
    Front: Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Shimano 105; Hydraulic disc brake caliper with Shimano RT10; 160mm rotor
  • Tyres
    Front: Continental Ultra Sport III; 700 x 28C; Kevlar bead Rear: Continental Ultra Sport III; 700 x 28C; Kevlar bead
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Expert SL; 17mm inner rim width; 22mm rim depth; aluminium Spokes: Double Butted Black stainless Front Hub: Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock Rear Hub: Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
  • Speeds
    24
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105; GS
  • Shift Levers
    Shimano 105 disc
  • Chain
    Shimano CN-M6100-12
  • Cassette
    Shimano CS-R7101; 11-34 teeth; 12 speed
  • Chainset
    Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
  • Bottom Bracket
    SM-BB71-41B, Pressfit 86.5
  • Saddle
    Merida Expert SL; V-mount; including Merida minitool
  • Seat Post
    Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
Sizing Information
