The Top Fuel 9.9 XTR is a top-shelf full-suspension mountain bike for riders who are serious about their fun.
The Top Fuel 9.9 XTR is a top-shelf full-suspension mountain bike for riders who are serious about their fun.
Trek

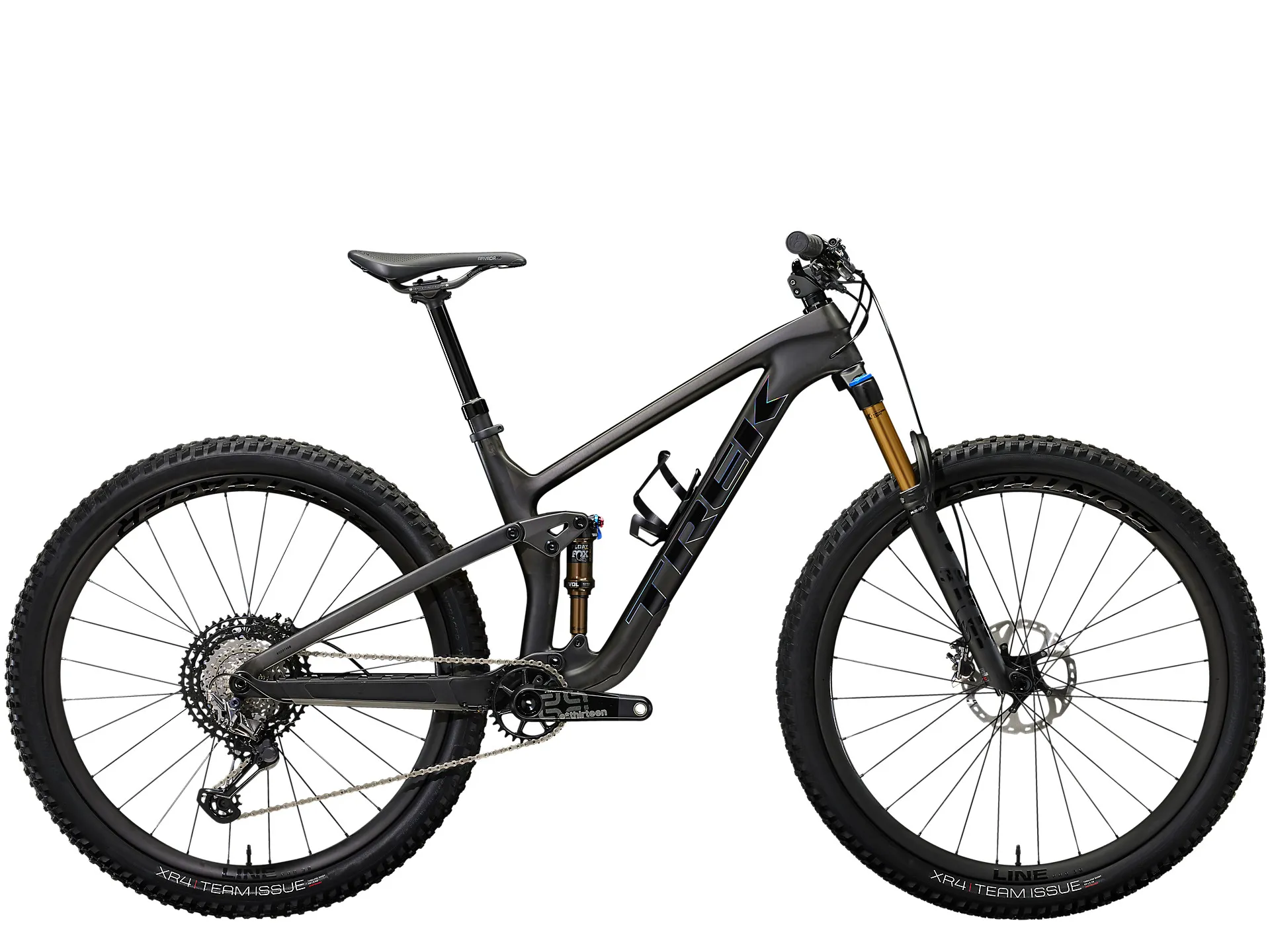

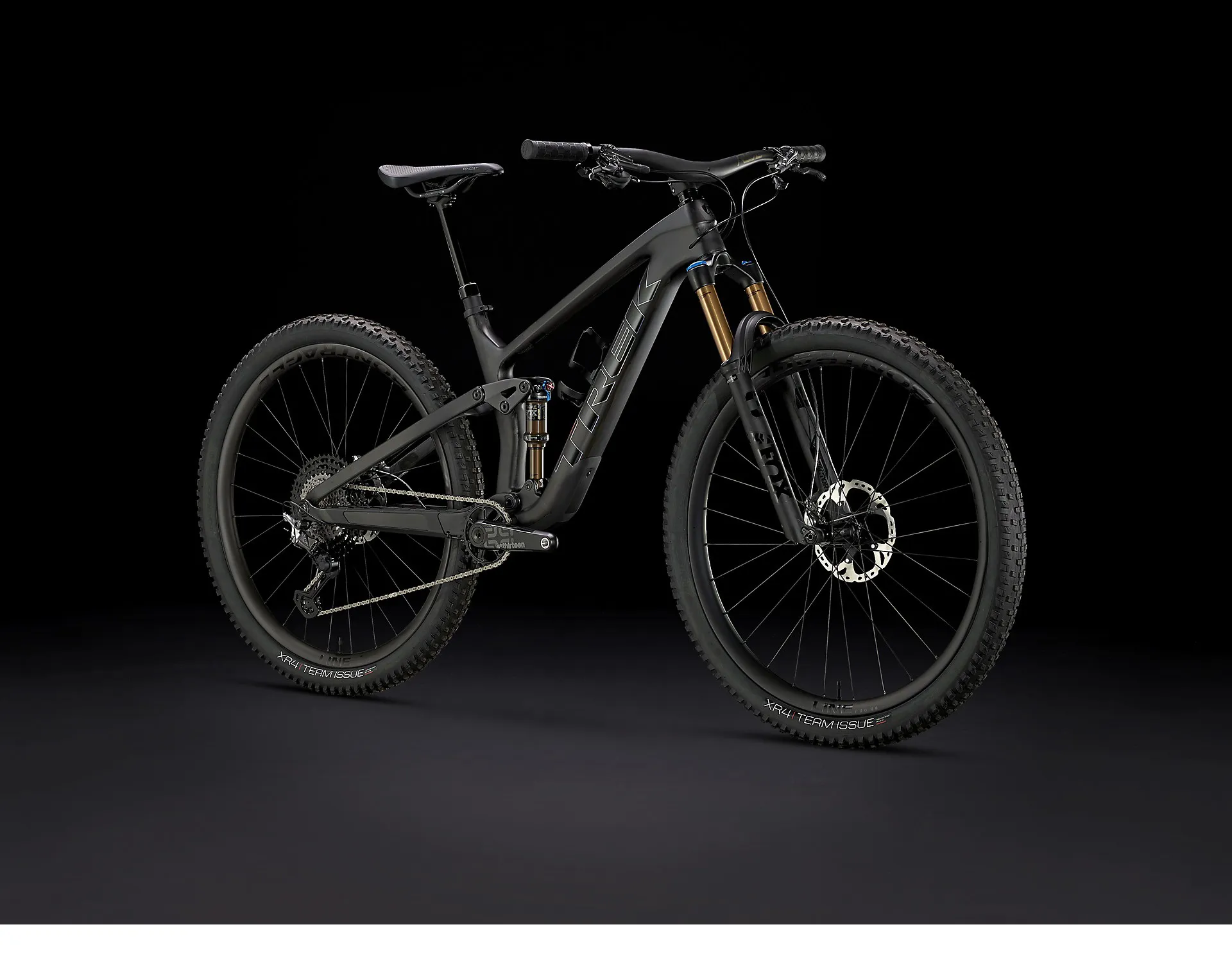

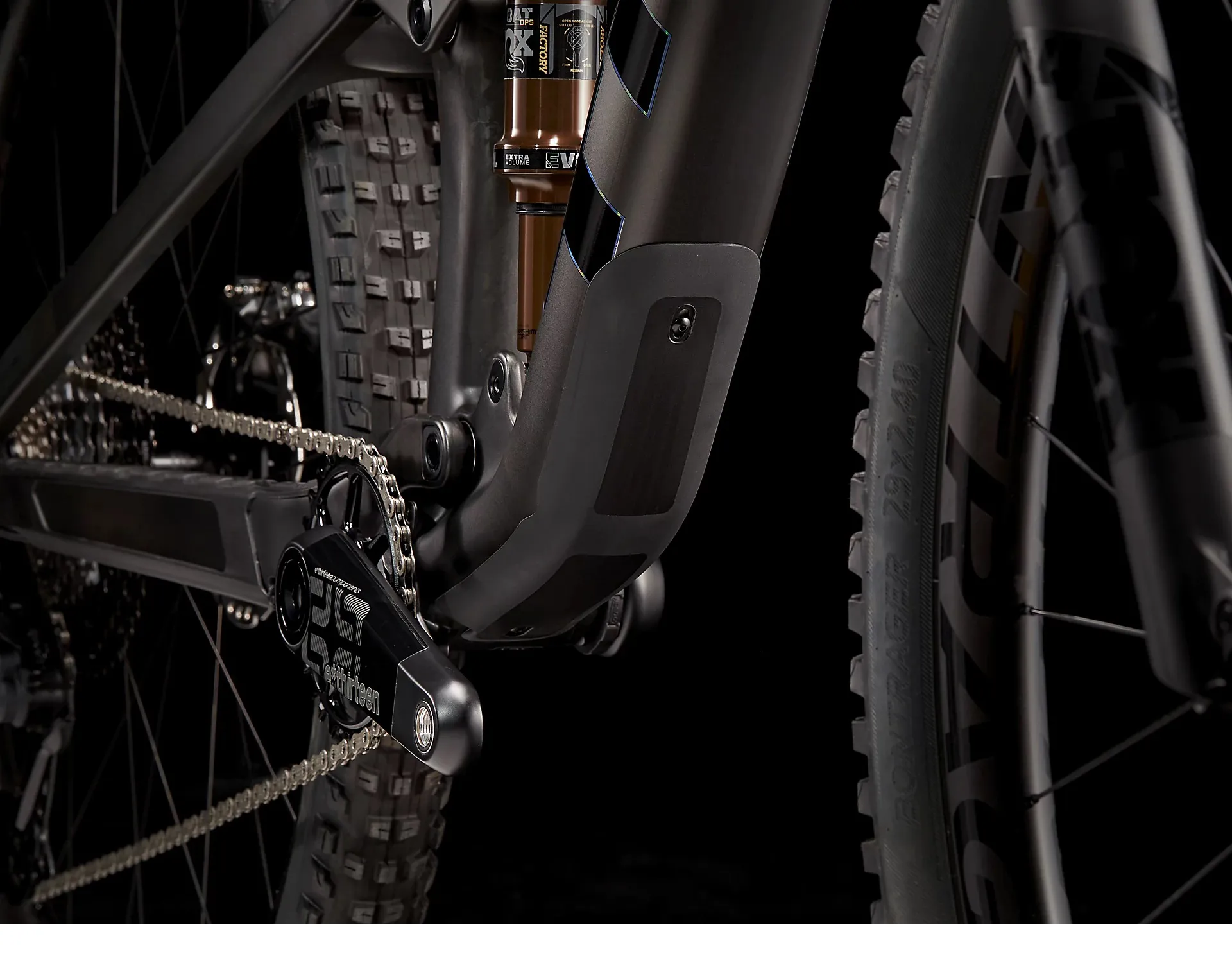

Trek Top Fuel 9.9 XTR Mountain Bike in Raw Carbon

£7,882.95 £9,275.00 15% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Top Fuel 9.9 XTR Mountain Bike in Raw Carbon

Season:2023

Brand:Trek

Code:37064MATRawCBN

The Top Fuel 9.9 XTR is a top-shelf full-suspension mountain bike for riders who are serious about their fun.

Its lightweight carbon frame is spec'd to the hilt with high-end suspension and high-performance parts. And all those fancy bits and bobs are really, really good at hitting the party line.
Technical Information
  • Frame
    OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Fork
    Fox Factory 34, Float EVOL air spring, GRIP2 2-position damper, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 130 mm travel

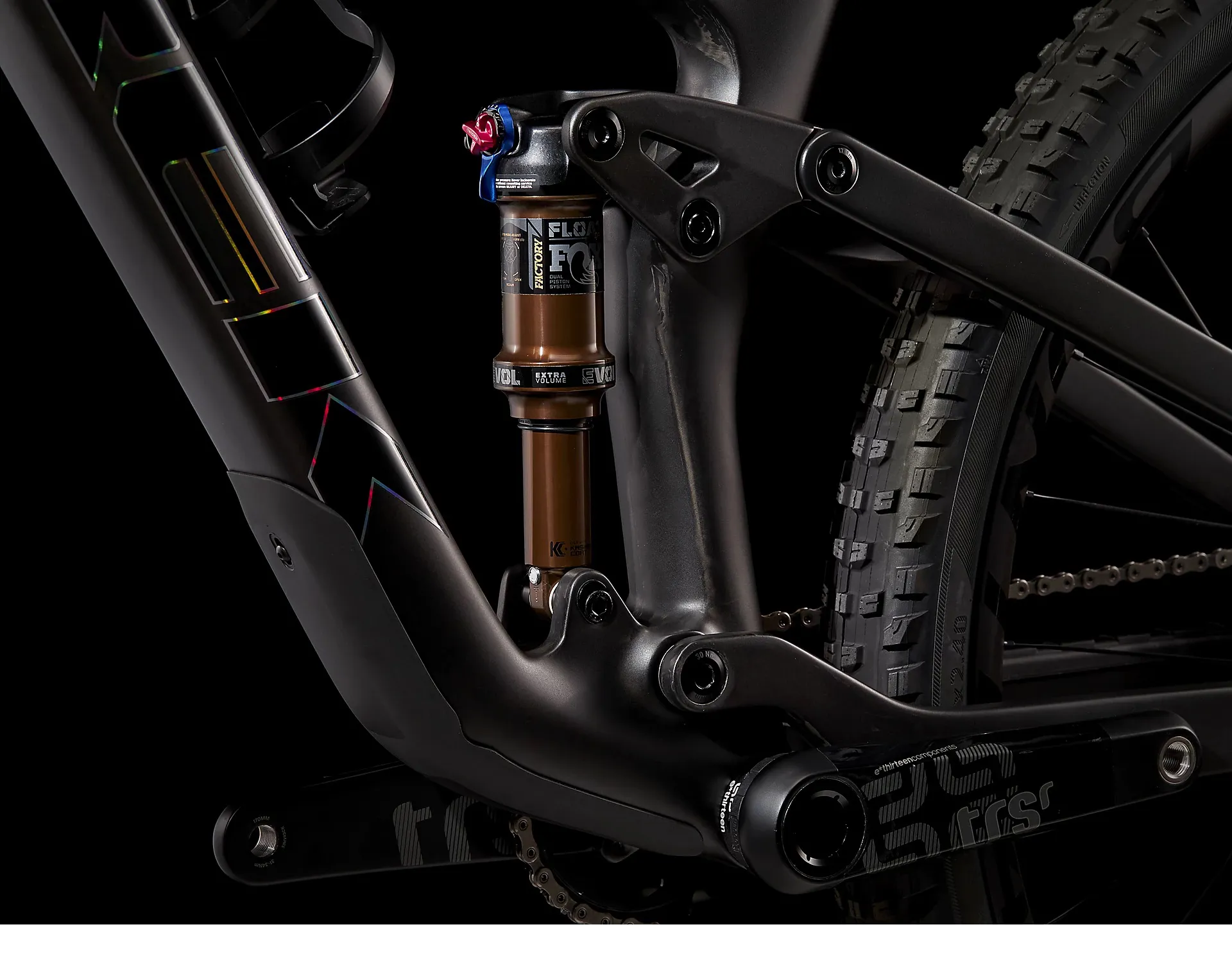

  • Shock
    Fox Factory Float DPS, 3-position damper, open-mode adjustment, Kashima Coat, 185 mm x 50 mm
  • Max compatible fork travel
    130 mm (541 mm axle-to-crown)
  • Wheel front
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru axle, removable lever

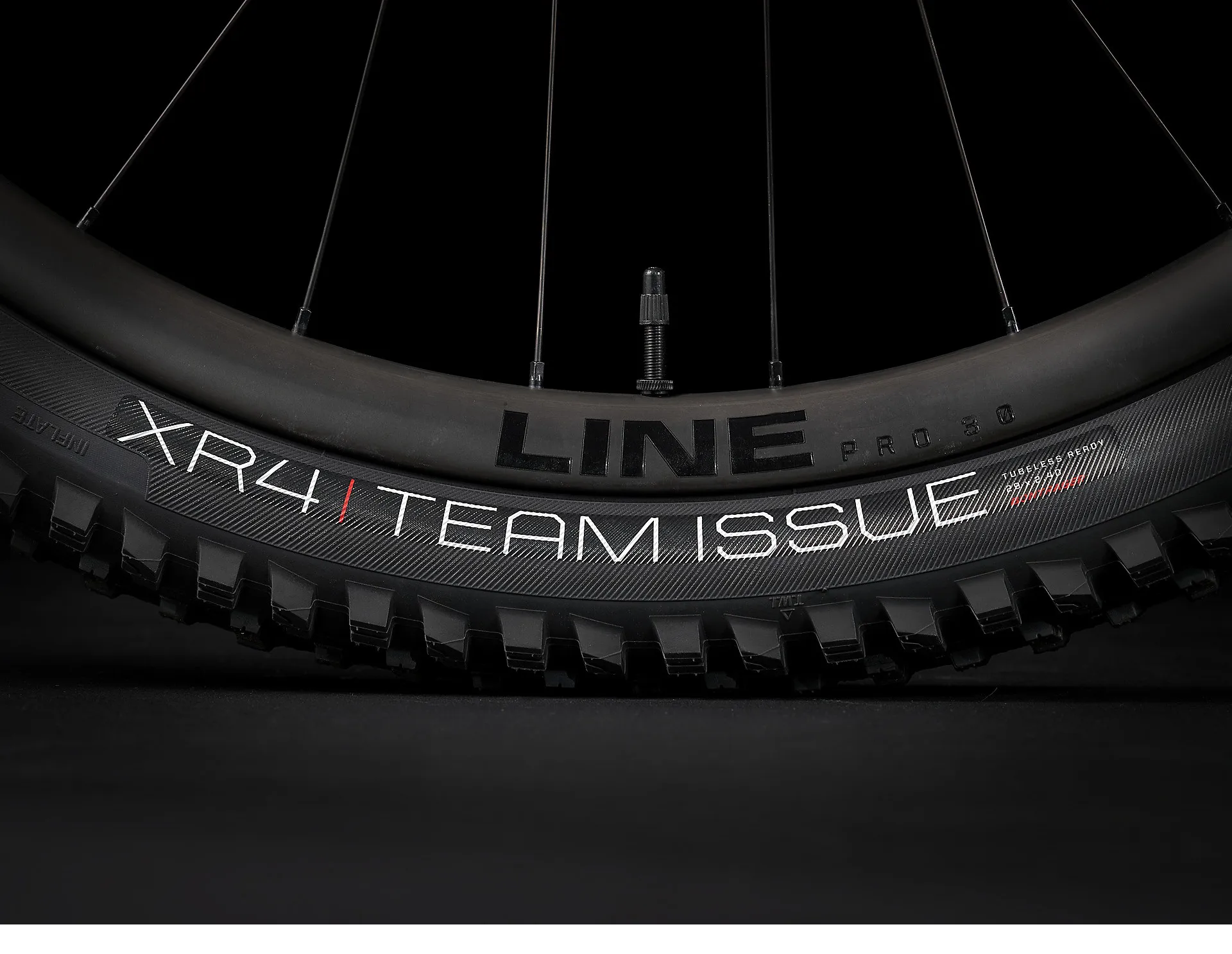

  • Tyre
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.5" Fork: see manufacturer
  • Shifter
    Shimano XTR M9100, 12-speed

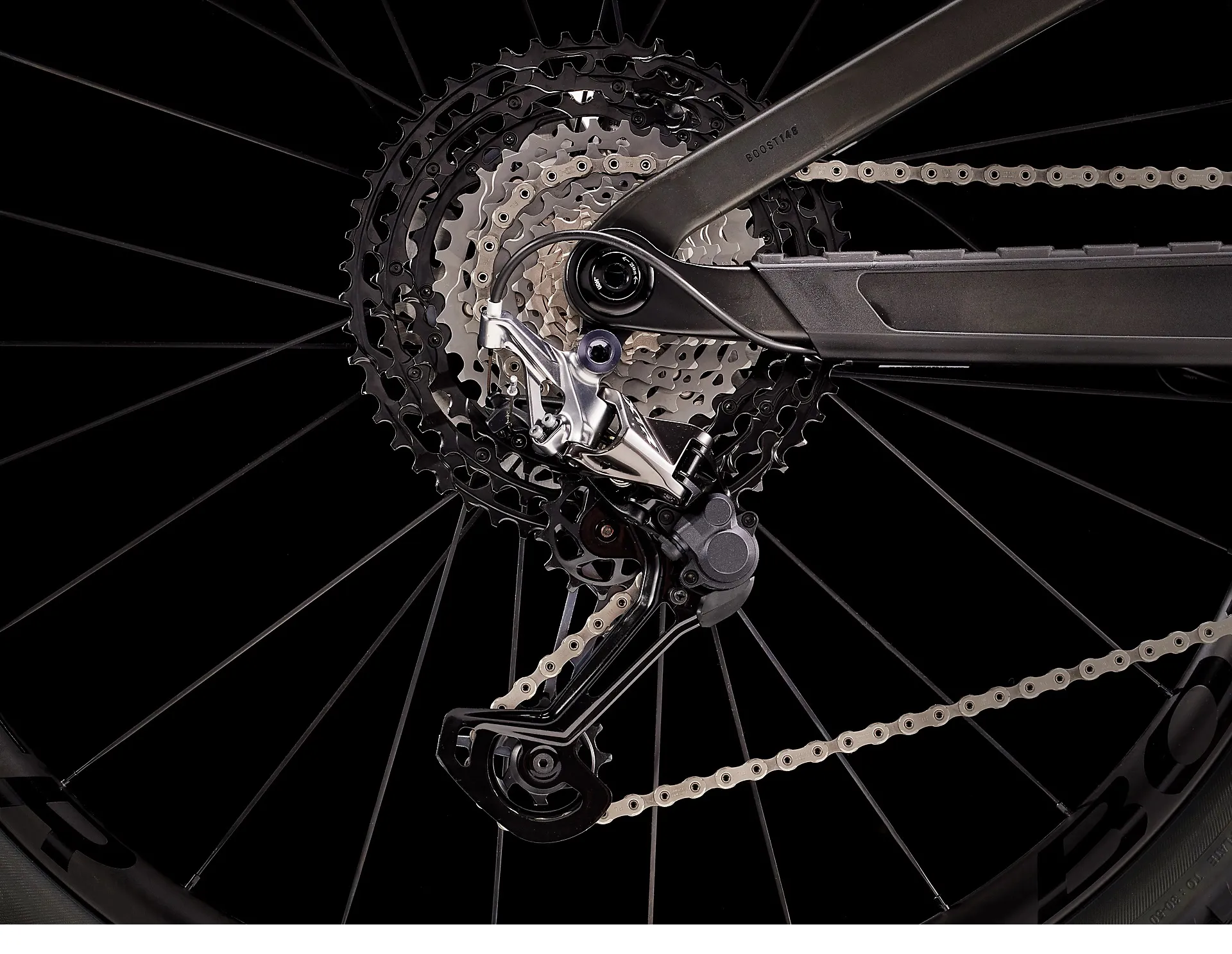

  • Rear derailleur
    Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

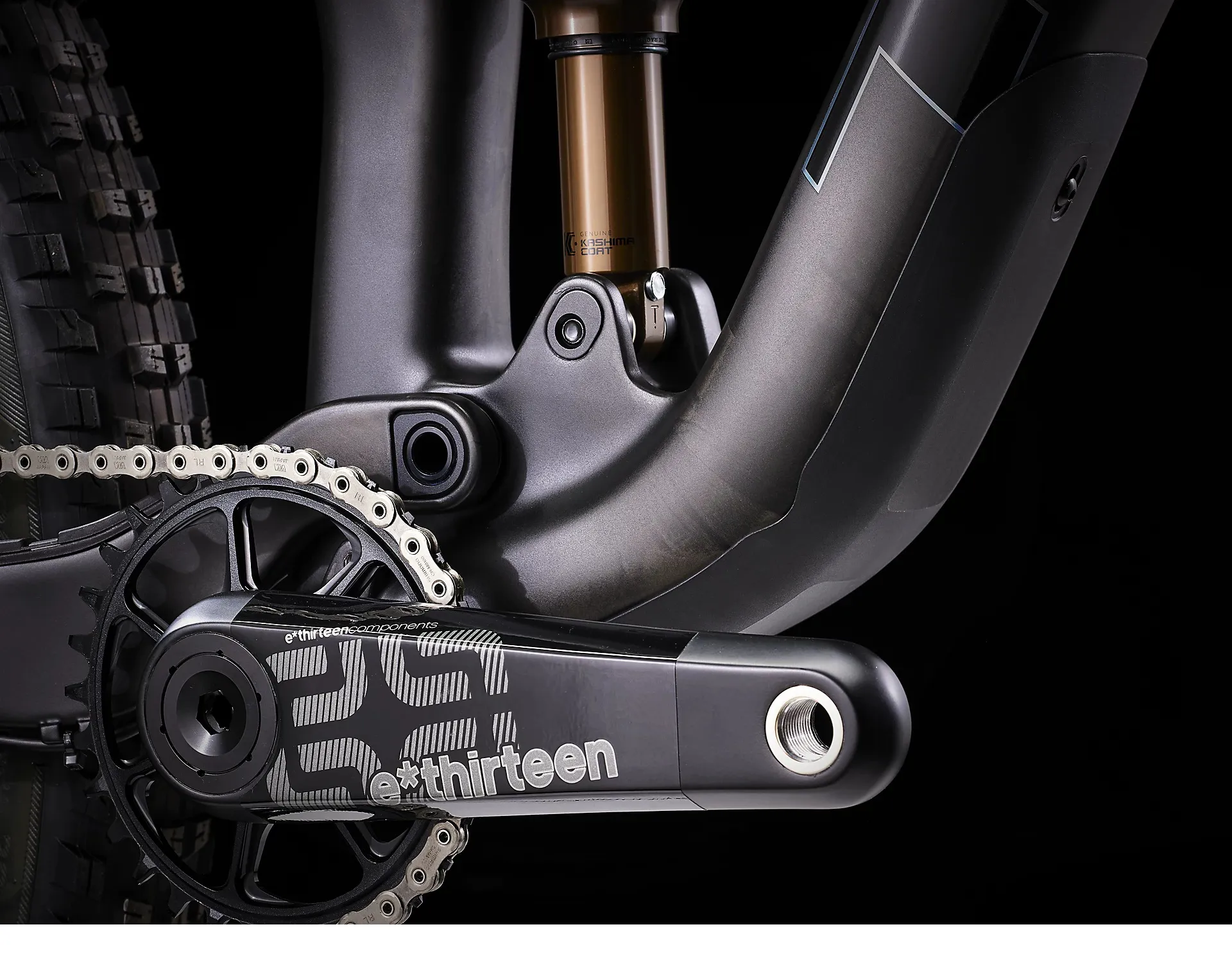

  • Crank
  • Size: S, M, M/L, L
    E*thirteen TRS Race Carbon, 30T, 55 mm chainline, 170 mm length
  • Size: XL
    E*thirteen TRS Race Carbon, 30T, 55 mm chainline, 175 mm length
  • Bottom bracket
    E*thirteen BB20-P, BSA threaded, 73 mm width
  • Cassette
    Shimano XTR M9101, 10-51, 12-speed
  • Chain
    Shimano Dura-Ace/XTR M9100, 12-speed
  • Max. chainring size
    Max: 36T (oval – 34T) Min: 28T
  • Components
  • Saddle
    Bontrager Arvada Pro, carbon rails, 138 mm width
  • Seatpost
  • Size: S
    Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Size: M, M/L
    Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
  • Size: L
    Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Size: XL
    Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length

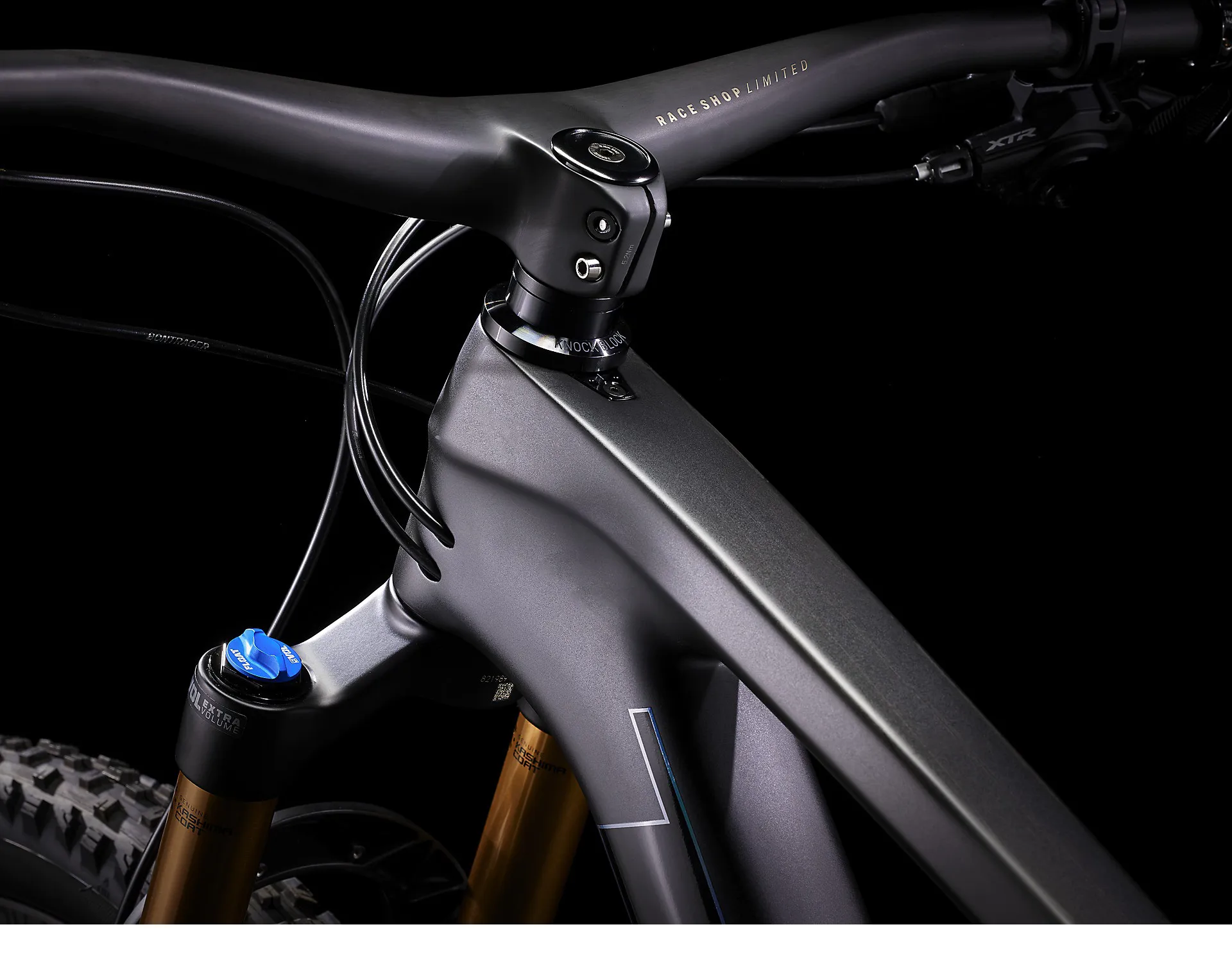

  • Integrated Bar Stem
  • Size: S
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Size: M, M/L, L, XL
    Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
  • Grips
    Bontrager XR Trail Elite, nylon lock-on
  • Head set
    Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    Shimano XTR M9100 hydraulic disc

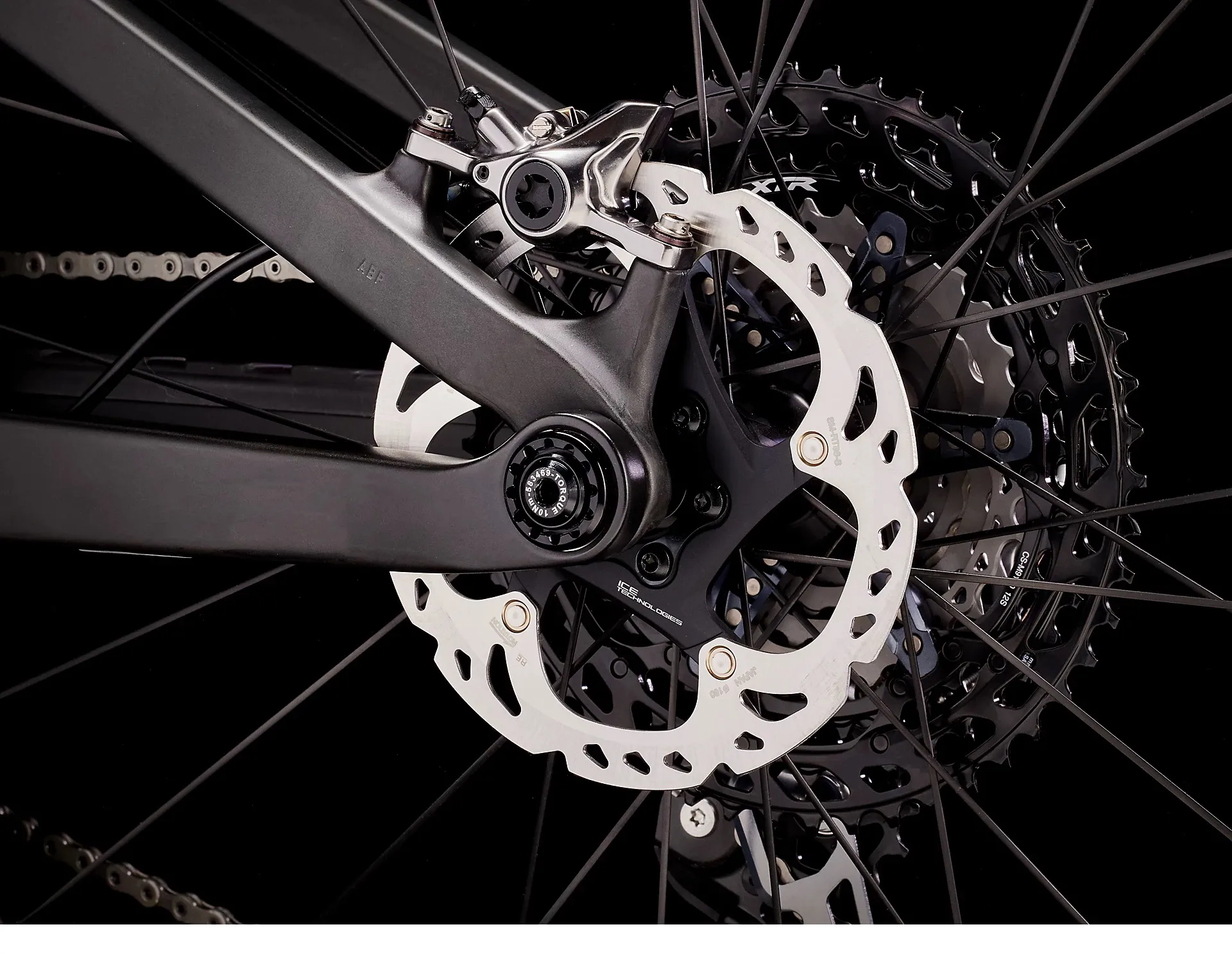

  • Brake rotor
  • Size: S, M, M/L, L, XL
    Shimano RT86, 6-bolt, 160 mm
  • Size: S, M, M/L, L, XL
    Shimano RT86, 6-bolt, 180 mm
  • Rotor size
    Max brake rotor sizes: Front see fork manufacturer, rear 180 mm
