Fuel EX 9.8 combines a light full-carbon frame with parts chosen for the highest performance-to-price ratio.
Fuel EX 9.8 combines a light full-carbon frame with parts chosen for the highest performance-to-price ratio.
Trek

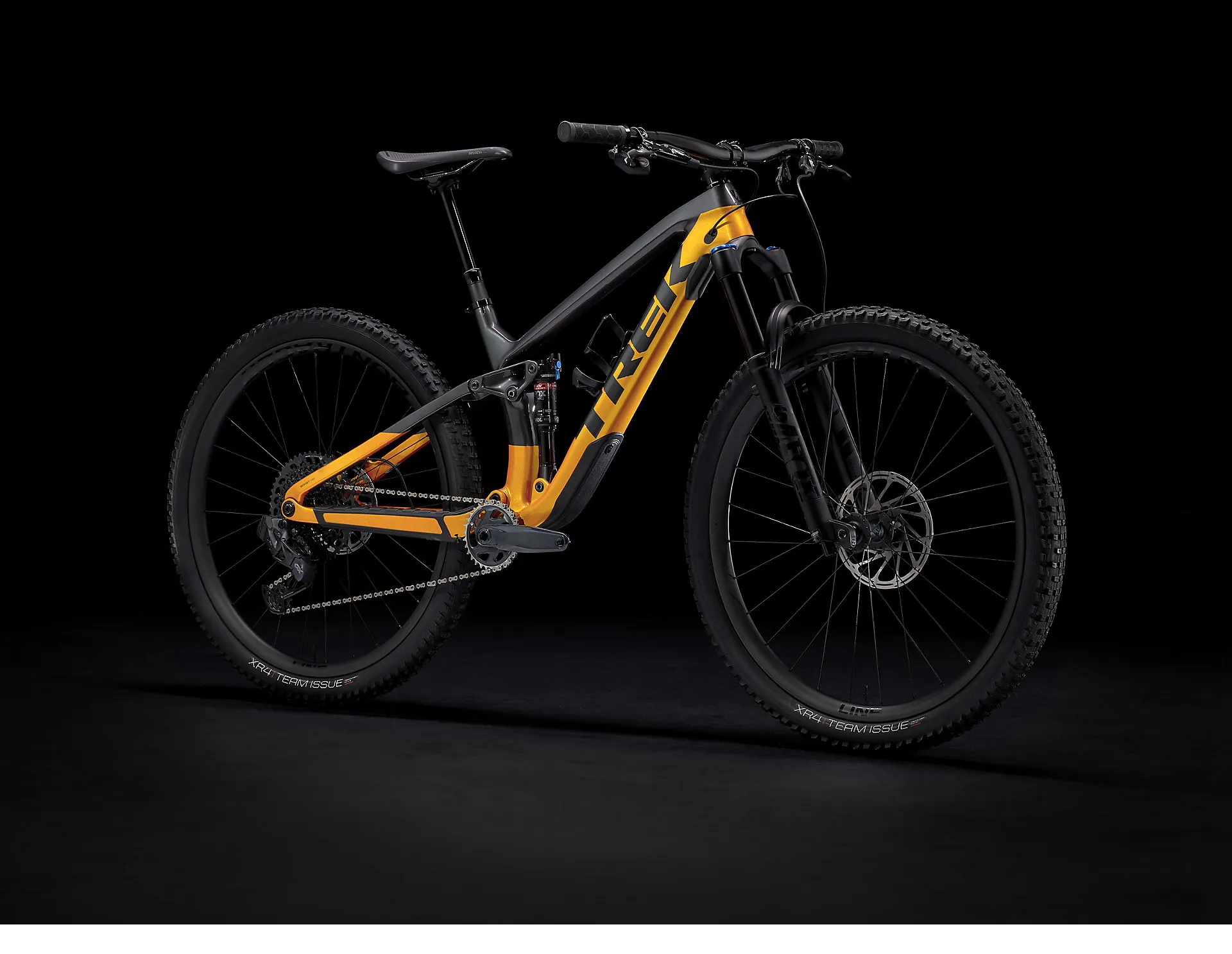

Trek Fuel EX 9.8 GX Mountain Bikes in Lithium Grey/Orange X-Small

£5,850.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS POLICY

If you'd like to exchange or return your order please include your name and order number with the return, our returns address is:

Returns
Activ Cycles
Unit 1&2 Kingfisher Business Park
Henwood
Ashford
TN24 8DG

Subject to the terms set out below we are happy to offer a refund or exchange on all goods except goods which are special orders or nutrition products, or where we have expressly advised you that there is no right to return the goods ordered (save in the event the goods are faulty) provided the goods are returned to us within 14 days of delivery to you.

If you return goods to us and request a different size or alternative product we will send it out free of charge (subject to stock availability). If you require a refund (or the replacement item is not in stock) we aim to process refunds within 2 working days of receipt of the goods. It is your responsibility to ensure that the item is returned to us safely and securely and in saleable condition.

Refunds will be processed using the same method of payment used for the original purchase. Due to the high incidence of fraud, we regret that we are unable to offer any refund without a valid receipt/delivery note.

If the product is faulty or wrong due to a mistake on our part then we will send out replacements free of charge and supply you with a prepaid returns label. For all goods returned please include a letter giving details along with a copy of the original receipt. Returned goods must be unused and with all appropriate packaging and labelling intact.

Your rights to return goods are protected under the Consumer Protection (Distance Selling) Regulations 2000 which can be found at theConsumer Protection (Distance Selling) Regulations 2000 (legislation.gov.uk).

Trek Fuel EX 9.8 GX Mountain Bikes in Lithium Grey/Orange X-Small

Season:2022

Brand:Trek

Code:33074LithiumGRYFactoryORG

Fuel EX 9.8 combines a light full-carbon frame with parts chosen for the highest performance-to-price ratio.

A high-end 130 mm rear and 140 mm front FOX suspension with upgraded front and rear dampers, carbon wheels with a Rapid Drive rear hub and SRAM's latest, widest-range drivetrain give this model an extra edge that you'll notice from the first pedal stroke.
Technical Information
  • Frame

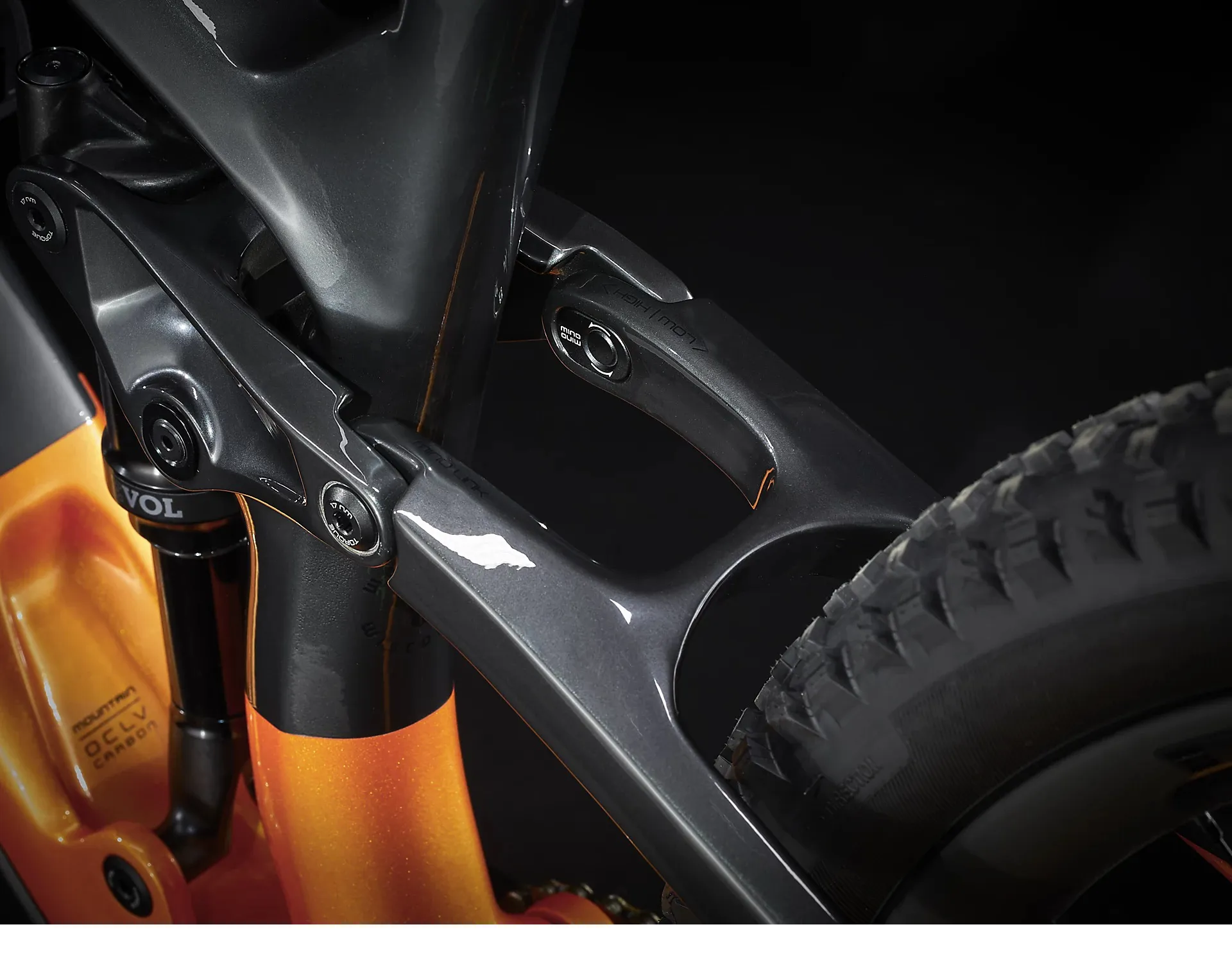

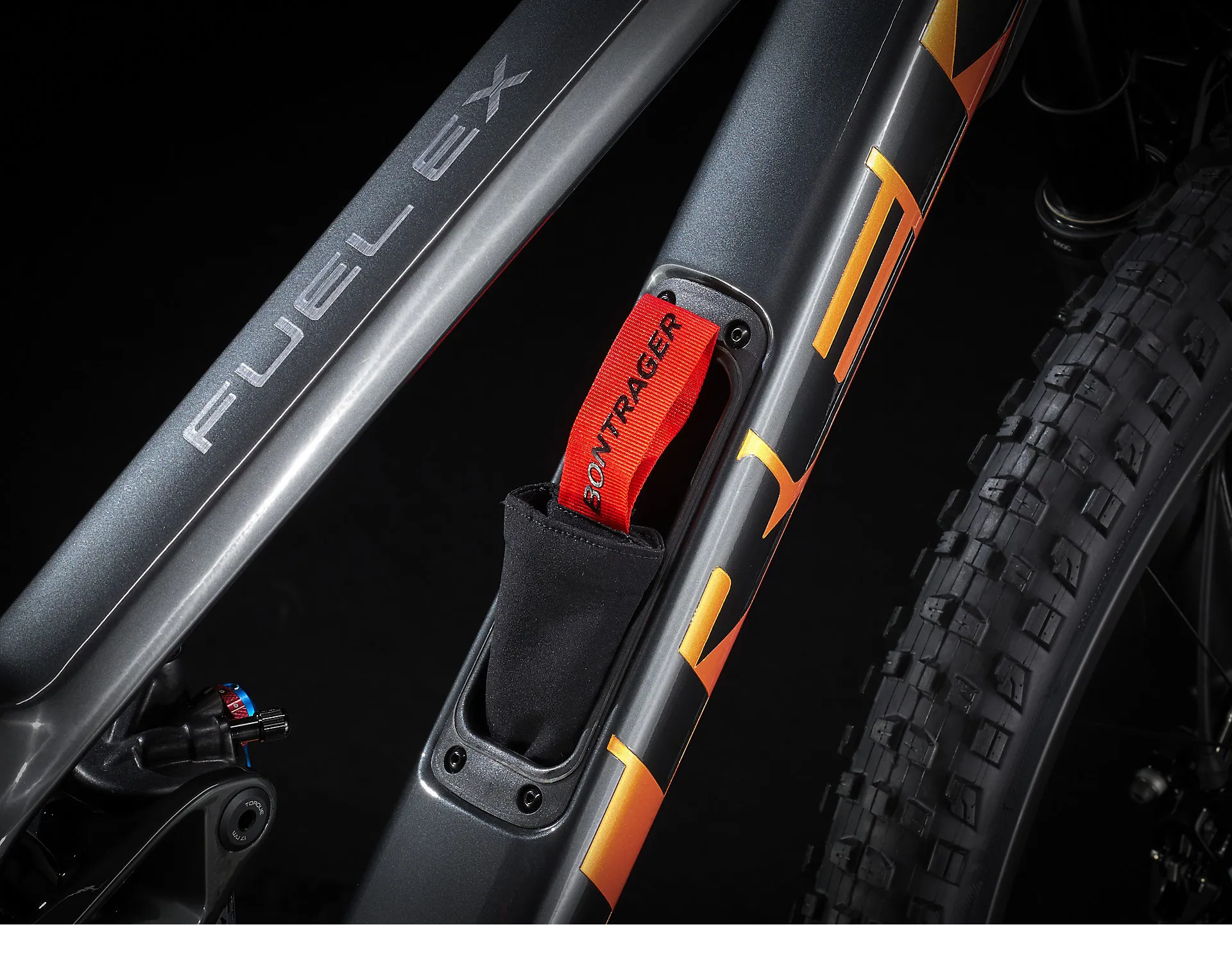

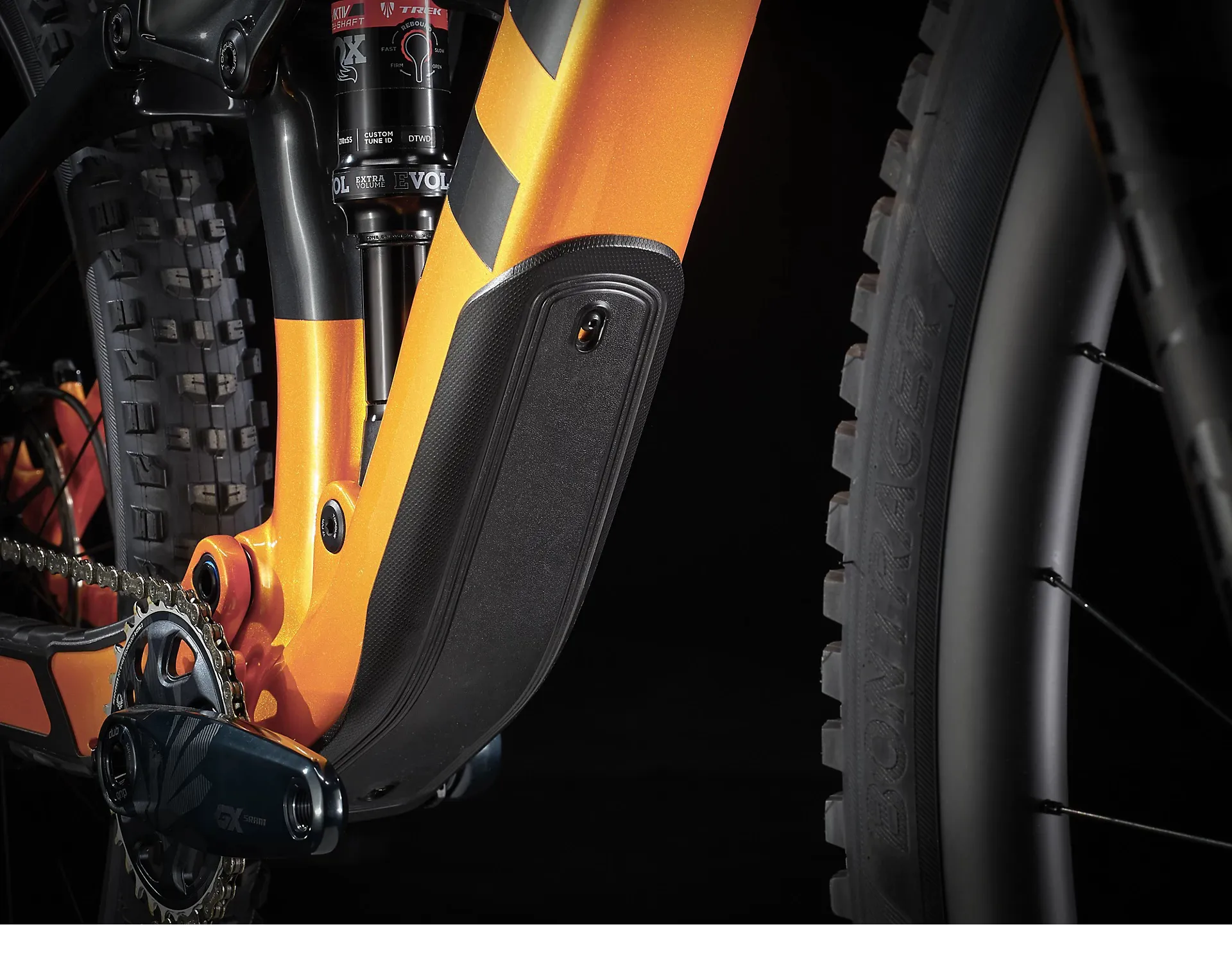

    OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
  • Fork
    Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel

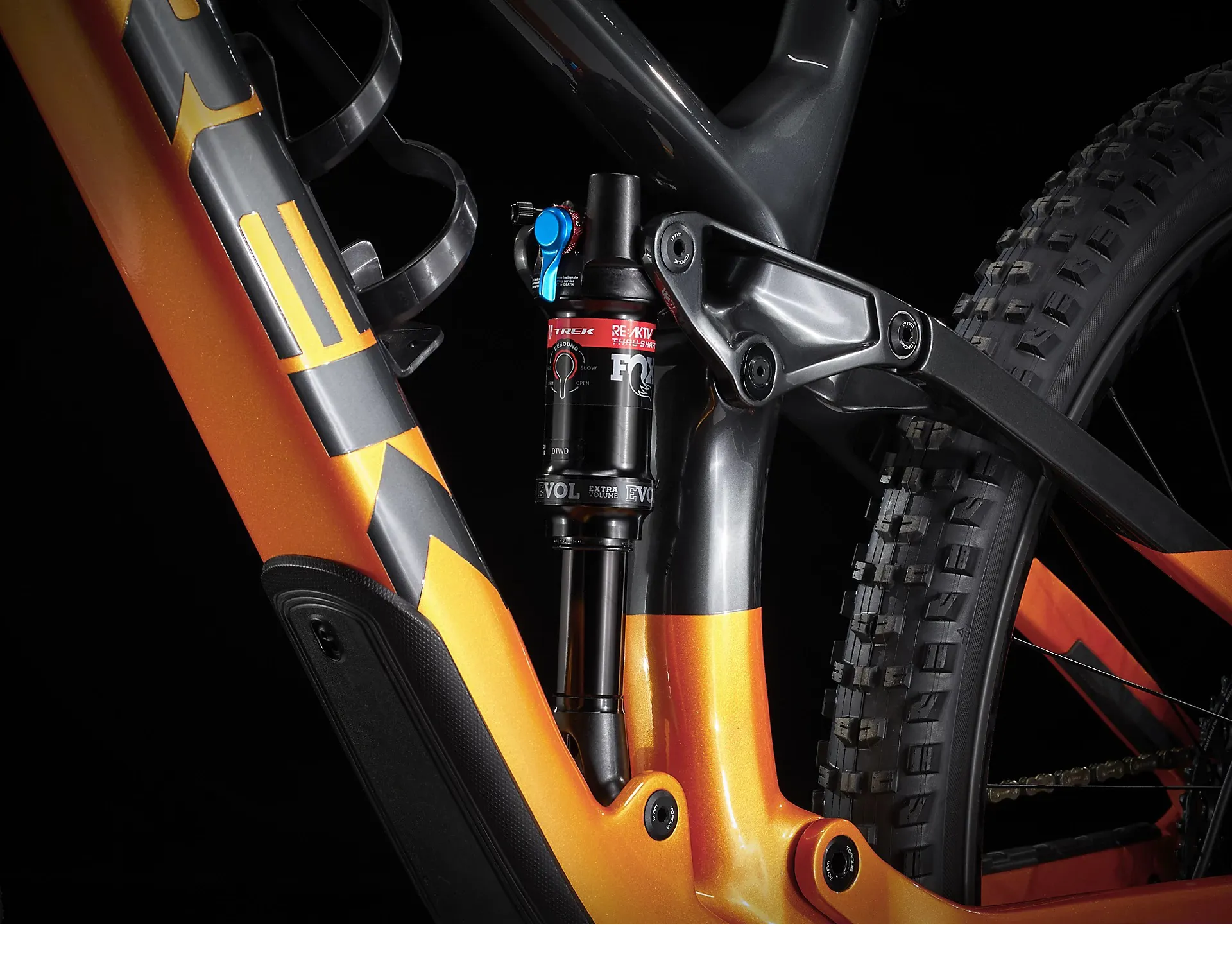

  • Shock
  • Size: XS , S
    Fox Performance Float EVOL, RE:aktiv with ThruShaft 3-position damper, tuned by Trek Suspension Lab, 210 mm x 52.5 mm
  • Size: S , M , ML , L , XL
    Fox Performance Float EVOL, RE:aktiv with ThruShaft 3-position damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
  • Max compatible fork travel
    150mm (561mm axle-to-crown)
  • Wheel front
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Wheel rear
    Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
  • Hub front
    Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Hub rear
    Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Rim
    Bontrager Line Elite 30, Tubeless Ready

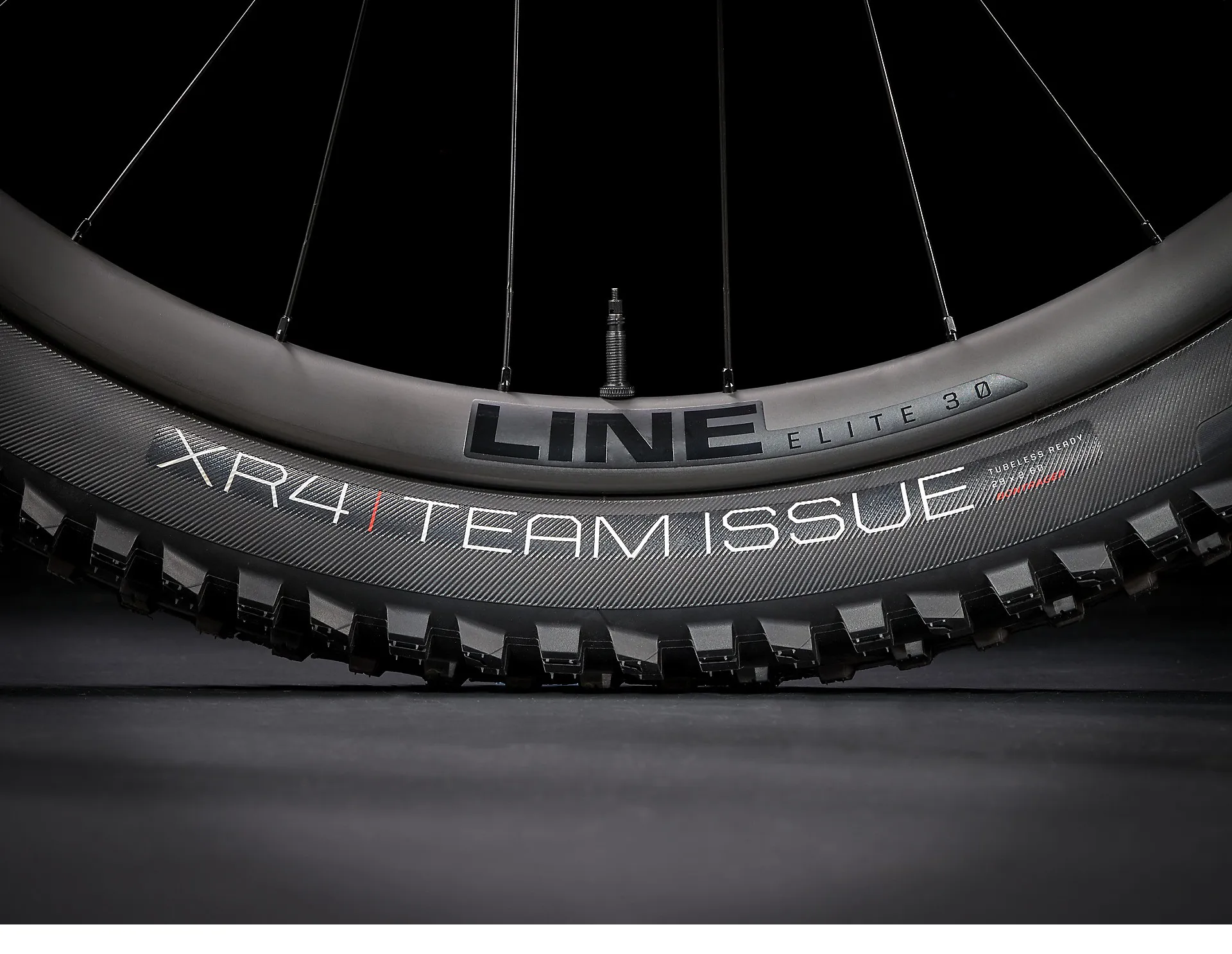

  • Tyre
  • Size: XS , S , M , ML , L , XL
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Size: XS , S
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60"
  • Size: XS , S
    Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"
  • Size: S , M , ML , L , XL
    Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
  • Size: S , M , ML , L , XL
    Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip
    Bontrager TLR
  • Max tyre size
    Frame: 29x2.60" Fork: See manufacturer
  • Shifter
    SRAM GX Eagle, 12-speed

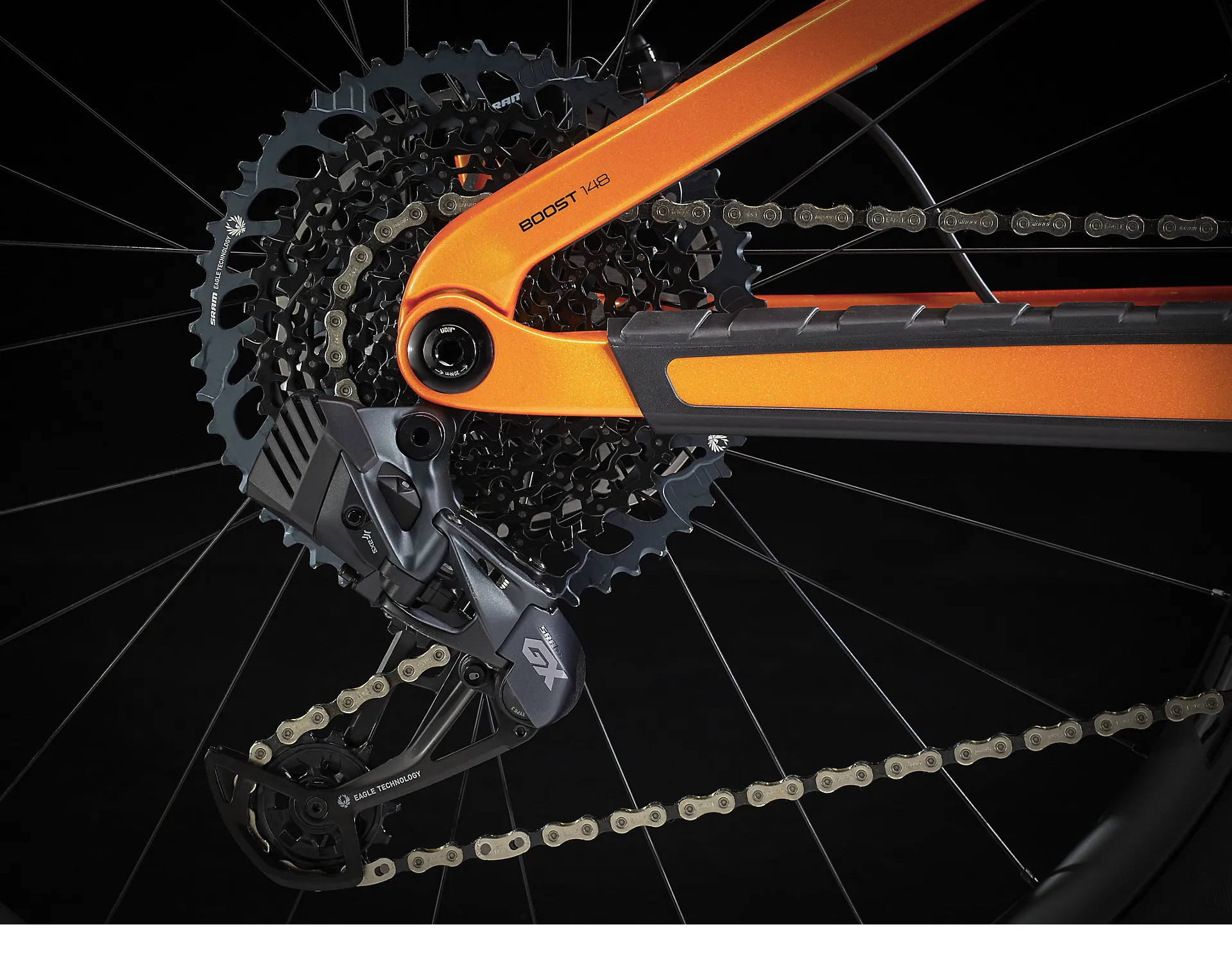

  • Rear derailleur
    SRAM GX Eagle

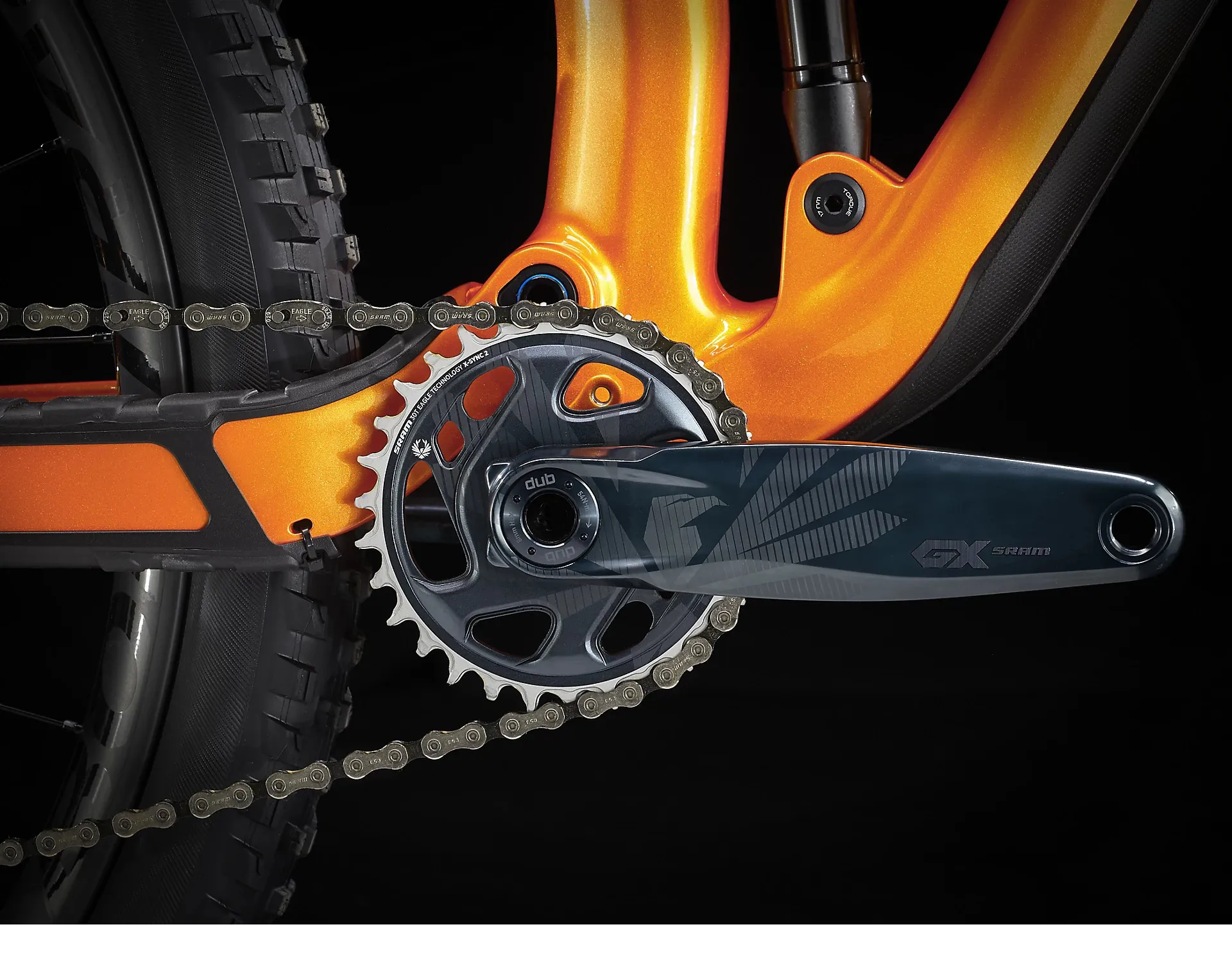

  • Crank
  • Size: XS , S , M , ML , L
    SRAM GX Eagle, DUB, 30T alloy ring, Boost, 170 mm length
  • Size: S , M , ML , L , XL
    SRAM GX Eagle, DUB, 30T alloy ring, Boost, 175 mm length
  • Bottom bracket
    SRAM DUB, 92 mm, PressFit
  • Cassette
    SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain
    SRAM GX Eagle, 12-speed
  • Max. chainring size
    34T
  • Saddle
    Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost
  • Size: XS , S
    Bontrager Line Elite, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
  • Size: XS , S
    Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
  • Size: M , ML
    Bontrager Line Elite, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
  • Size: M , ML
    Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
  • Size: L , XL
    Bontrager Line Elite, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
  • Size: L , XL
    Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length
  • Handlebar
  • Size: XS , S , M , ML , L , XL
    Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Size: XS , S
    Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
  • Grips
  • Size: XS , S , M , ML , L , XL
    Bontrager XR Trail Elite, nylon lock-on
  • Size: XS , S , M , ML , L , XL
    Bontrager XR Trail Elite, alloy lock-on
  • Stem
  • Size: XS , S

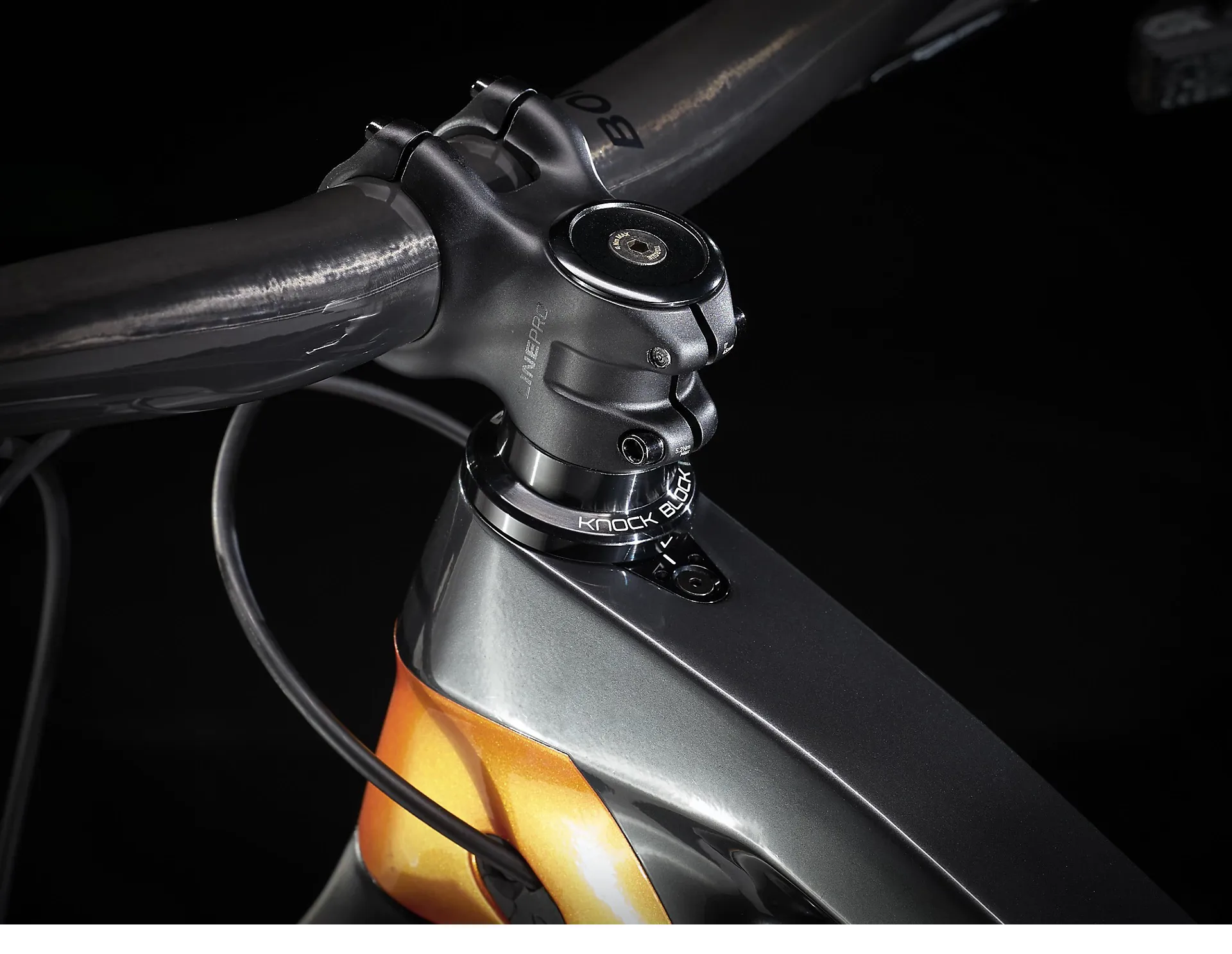

    Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
  • Size: M , ML , L , XL
    Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
  • Head set
    Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Brake
    SRAM G2 RS hydraulic disc

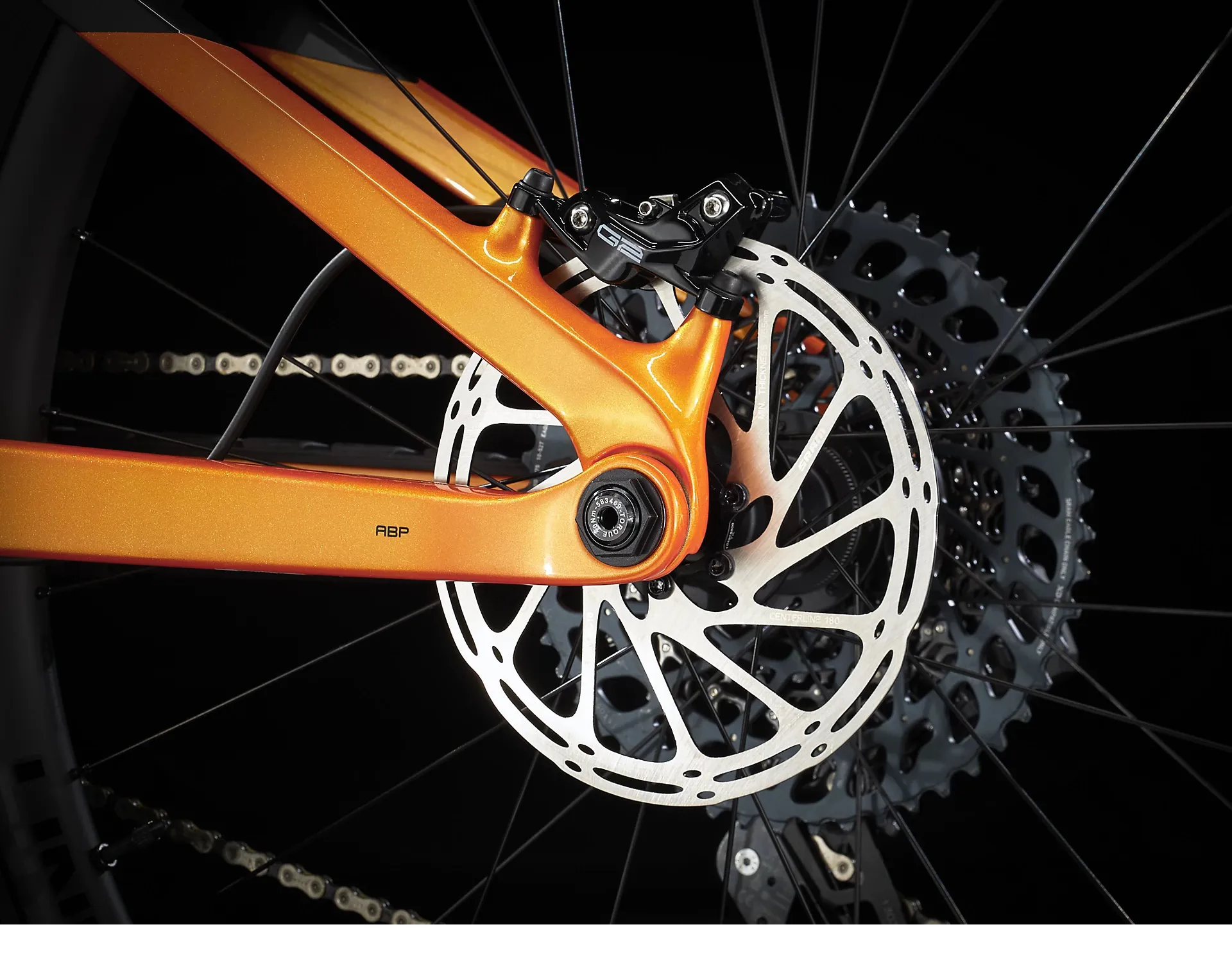

  • Brake rotor
  • Size: XS , S , M , ML , L , XL
    SRAM CenterLine, 6-bolt, round edge, 180 mm
  • Size: M , ML , L , XL
    SRAM CenterLine, 6-bolt, round edge, 200 mm
