Fork
RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Max compatible fork travel
120mm (531mm axle-to-crown)
Wheel front

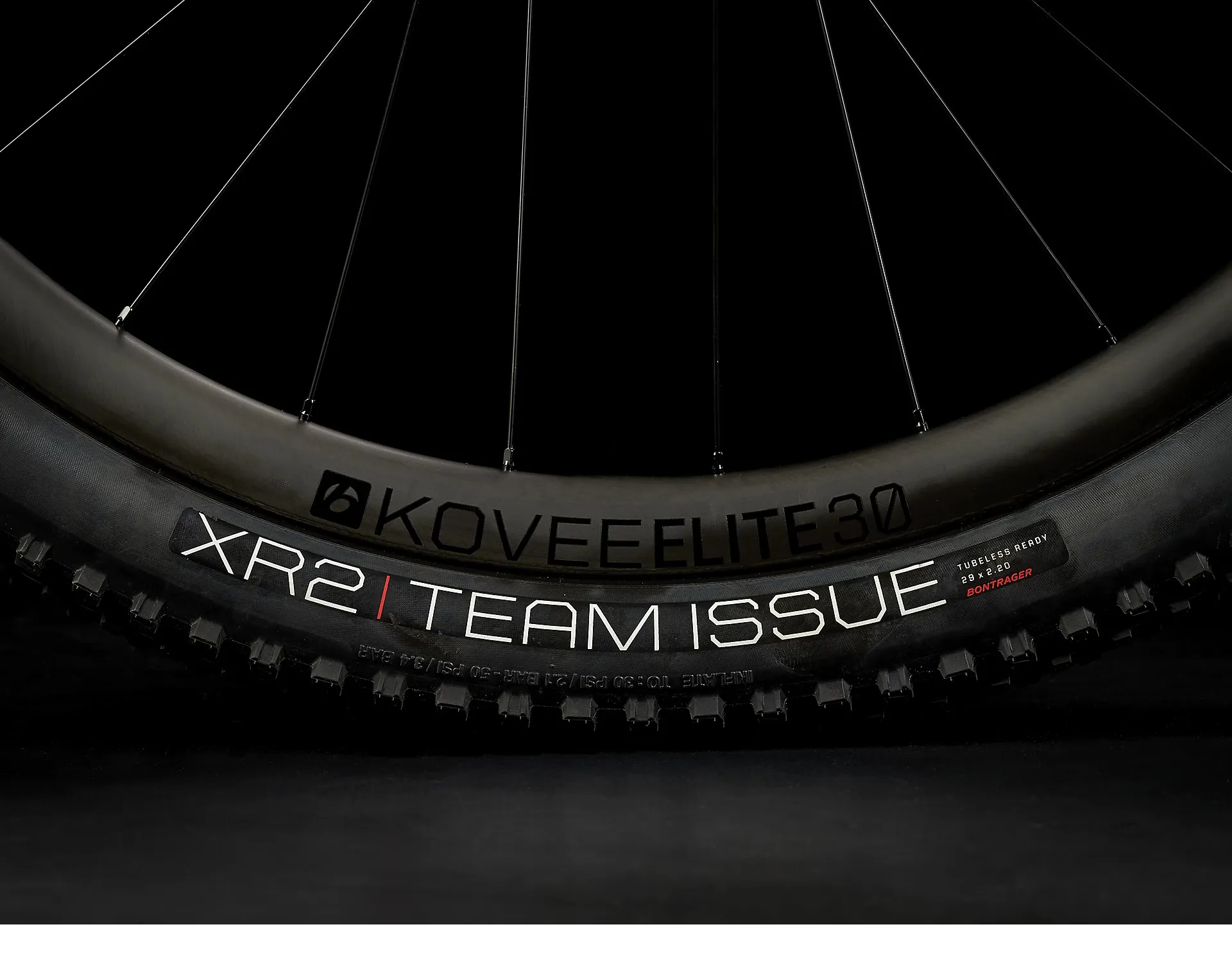

Bontrager Kovee Elite 30 Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle
Wheel rear
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano Microspline freehub, 6-bolt, Boost148, 12 mm thru-axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Tyre
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.20" Fork: See manufacturer
Shifter
Shimano SLX M7100, 12-speed

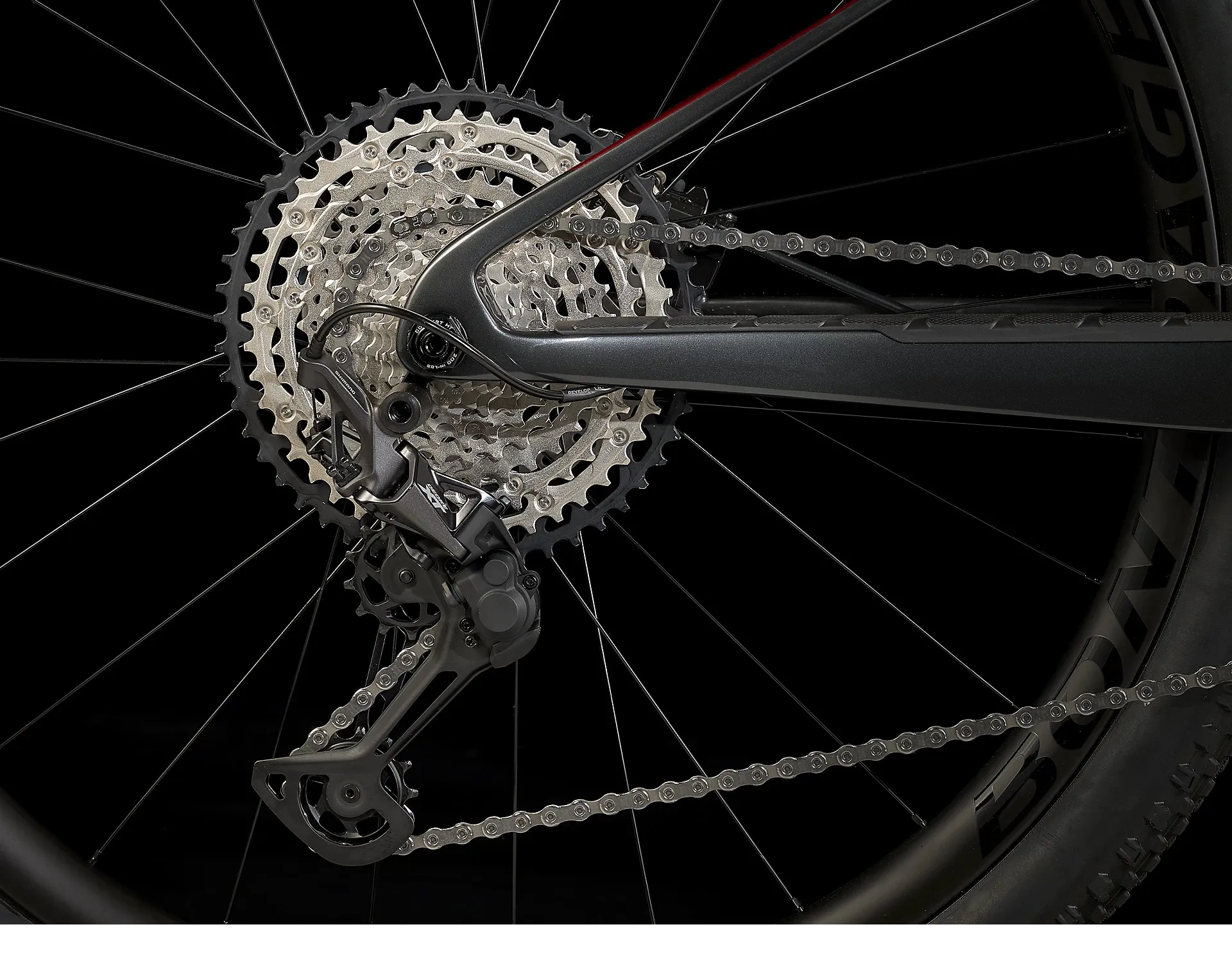

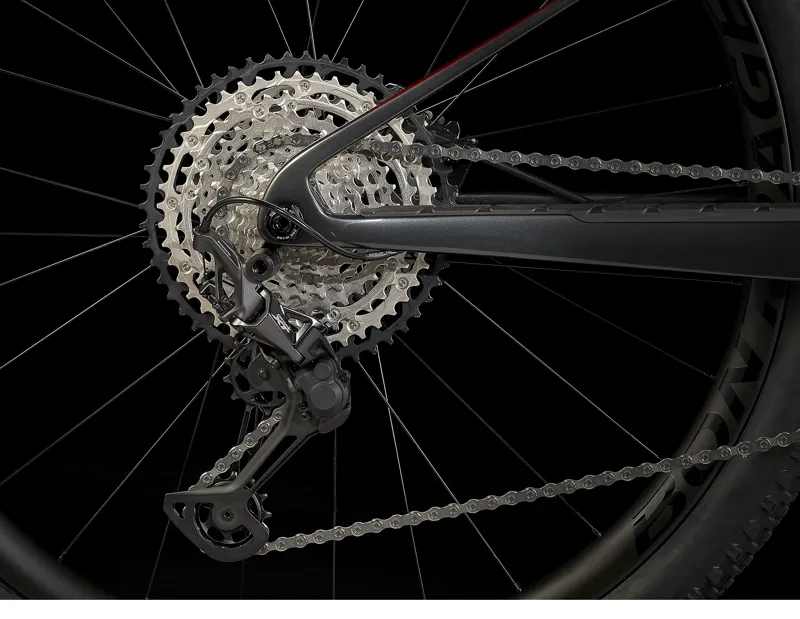

Rear derailleur
Shimano XT M8100, long cage, 51T max cog
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
36T
Saddle
Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
Seatpost
Size: S, Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
Size: M/ML/L/XL/XXL, Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
Handlebar
Size: S/M/ML, Bontrager Kovee Elite, alloy, 35 mm, 5 mm rise, 720 mm width
Size: L/XL/XXL, Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width
Grips
ESI Chunky
Stem
Size: S/M/ML, Bontrager Elite, 35 mm, 13-degree, 60 mm length
Size: M/ML, Bontrager Elite, 35 mm, 13-degree, 70 mm length
Size: L/XL, Bontrager Elite, 35 mm, 13-degree, 80 mm length
Size: XXL, Bontrager Elite, 35 mm, 0-degree, 90 mm length
Brake
Shimano hydraulic disc, MT501 lever, MT500 caliper
Brake rotor
Size: S/M/ML/L/XL/XXL, Shimano RT56, 6-bolt, 180 mm
Size: S/M/ML/L/XL/XXL, Shimano RT56, 6-bolt, 160 mm
Weight
M - 25.13 lbs / 11.4 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
