Frame

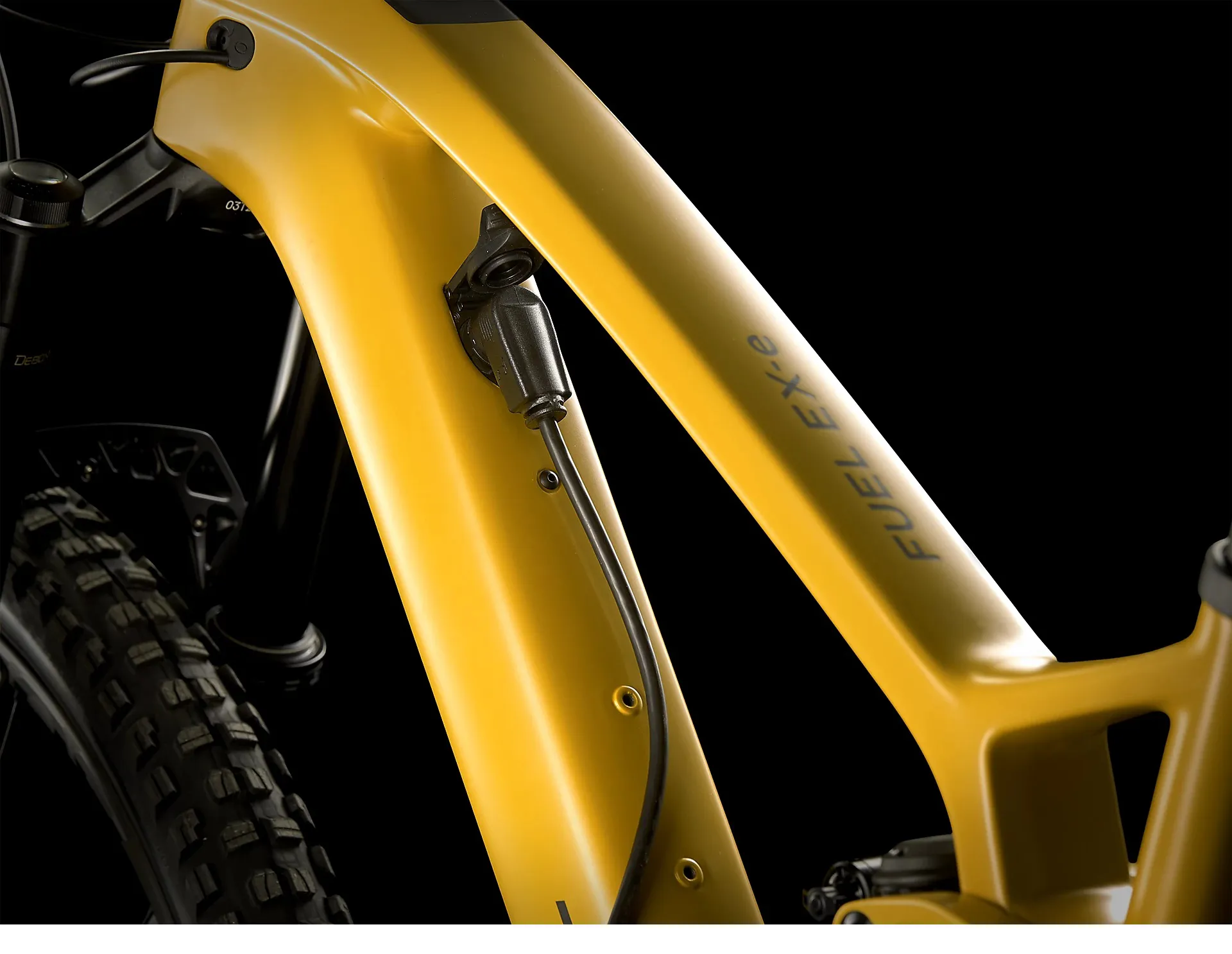

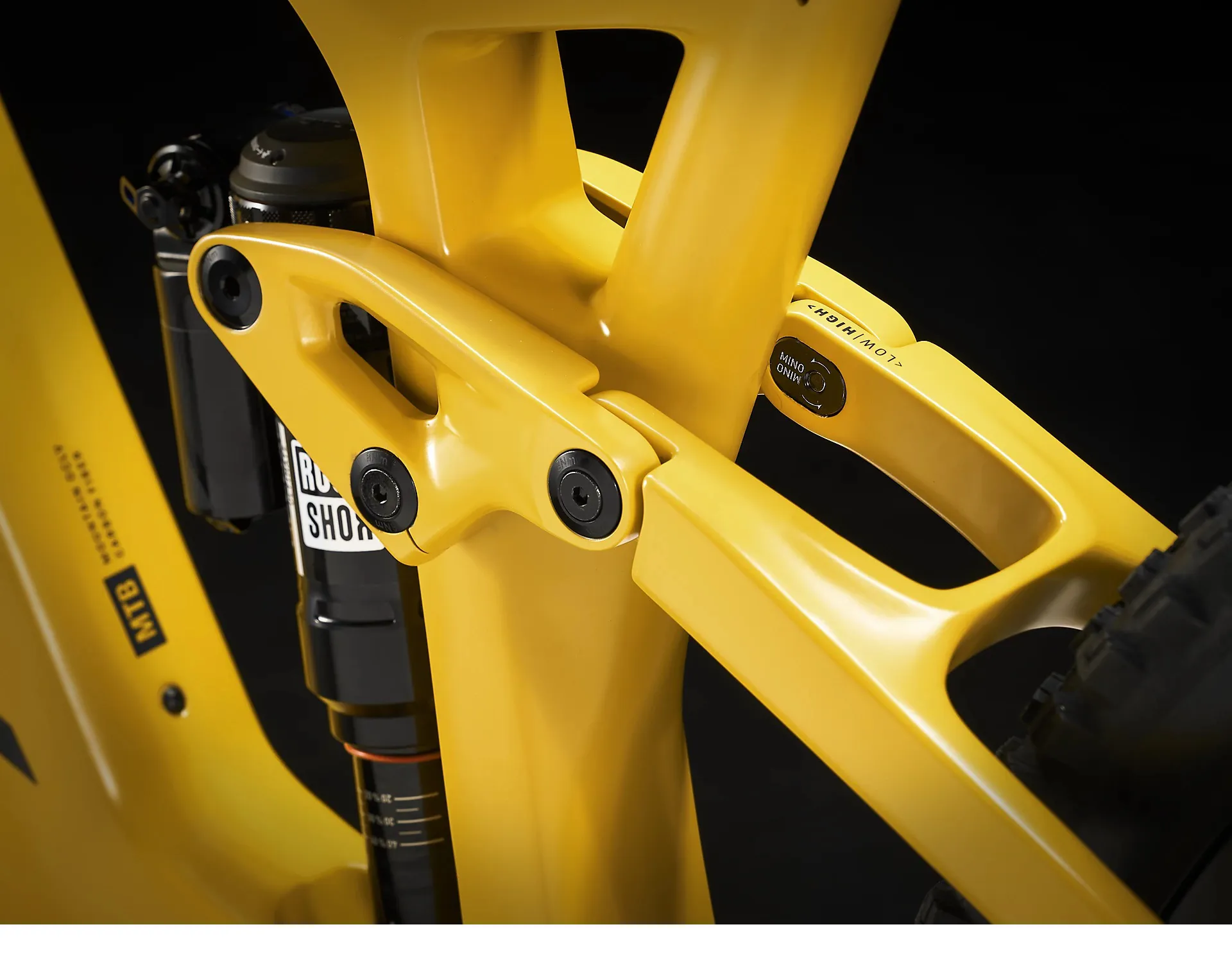

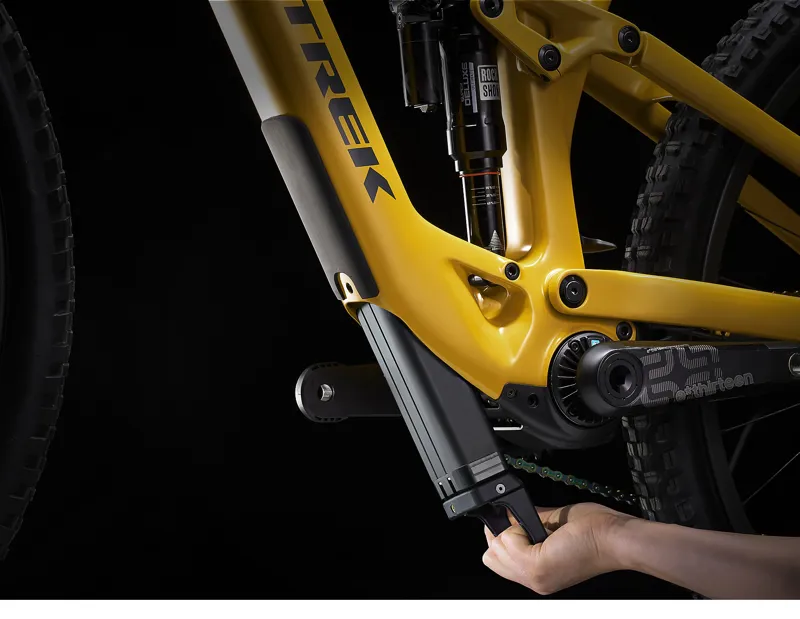

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel

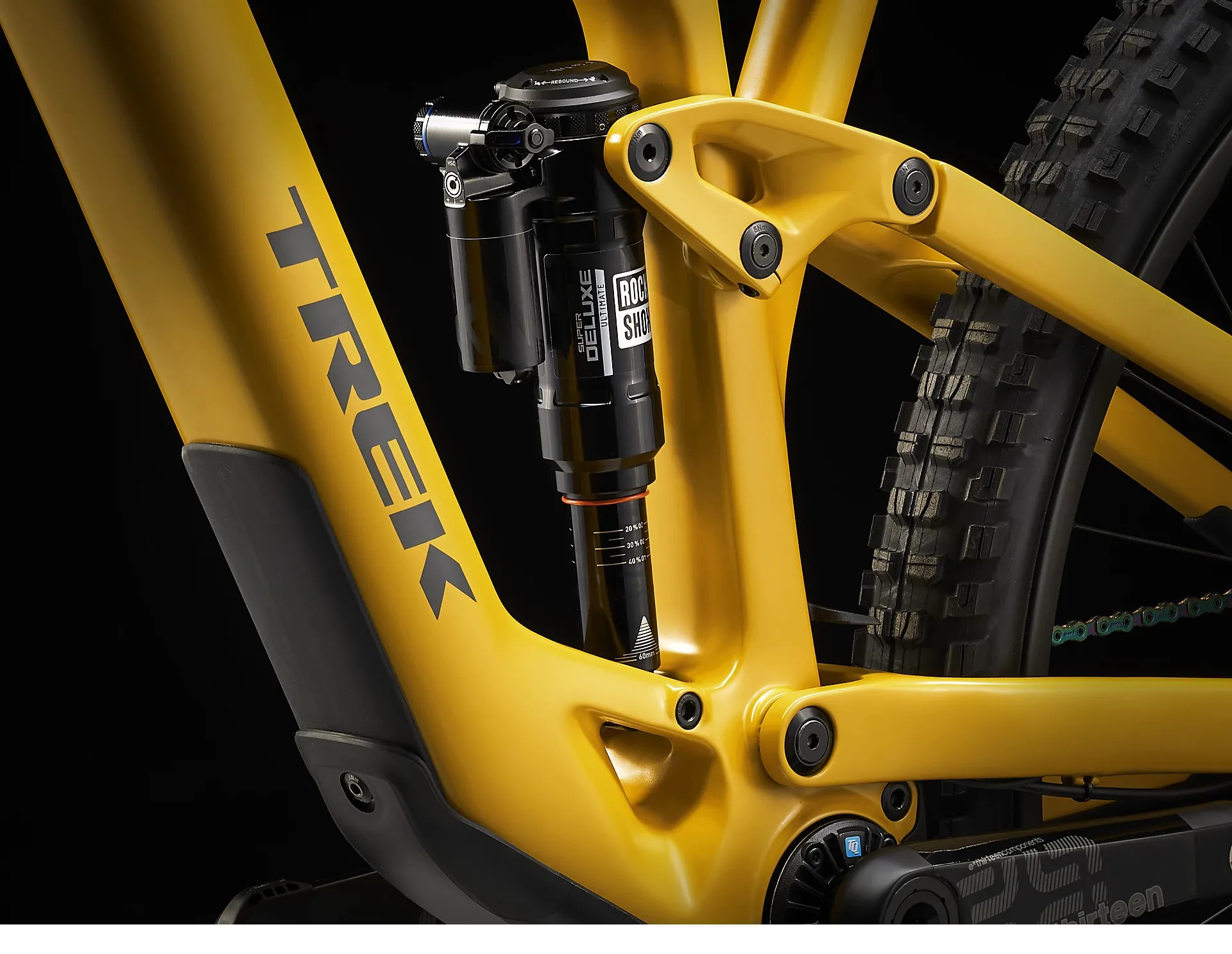

Shock
RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 mm x 60 mm
Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost 148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
Tyre
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
*Tyre part
Size: S, M, L, XL
Bontrager TLR sealant, 180 ml/6 oz
Size: S, M, L, XL
Quarq TyreWiz tire pressure monitors
Rim strip
Bontrager TLR
Shifter
SRAM Eagle AXS, wireless, 12 speed
Rear derailleur
SRAM XX1 Eagle AXS
Crank arm
E*thirteen E*spec Race carbon, 34T, 165 mm length
Chainring
SRAM X-SYNC, 32T, alloy
Cassette
SRAM Eagle XG-1299, 10-52, 12-speed
Chain
SRAM XX1 Eagle, 12-speed
Saddle
Bontrager Arvada, austenite rails, 138 mm width
*Seatpost
Size: S
RockShox Reverb AXS, 100 mm travel, wireless, 34.9mm, 340 mm length
Size: M
RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length
Size: L, XL
*Integrated Bar Stem
*Integrated Bar Stem
Size: S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35mm stem length
Size: M, L, XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length
Grips

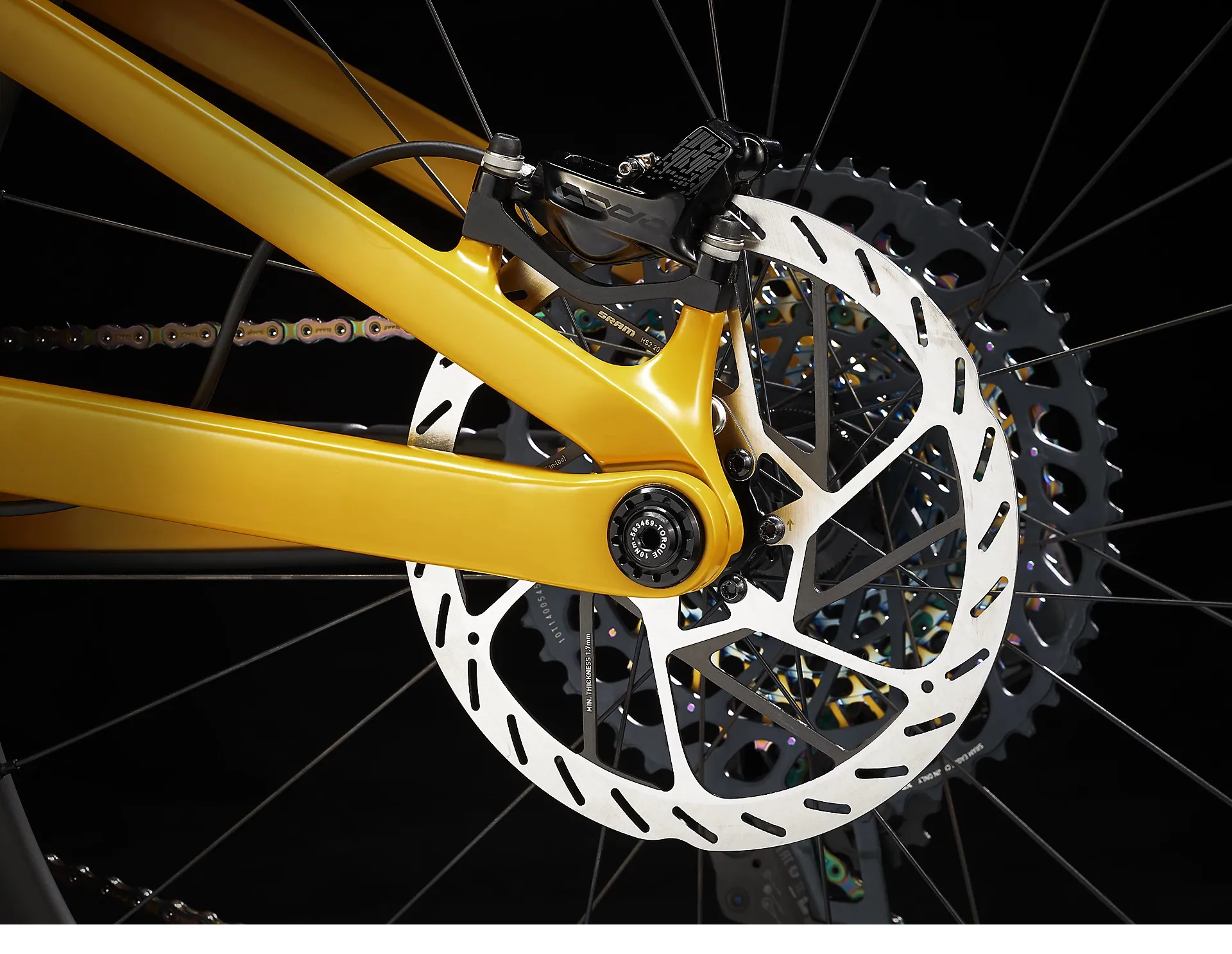

Brake rotor
Brake rotor
SRAM 6-bolt, 200 mm
Brake Set
SRAM Code RSC hydraulic disc

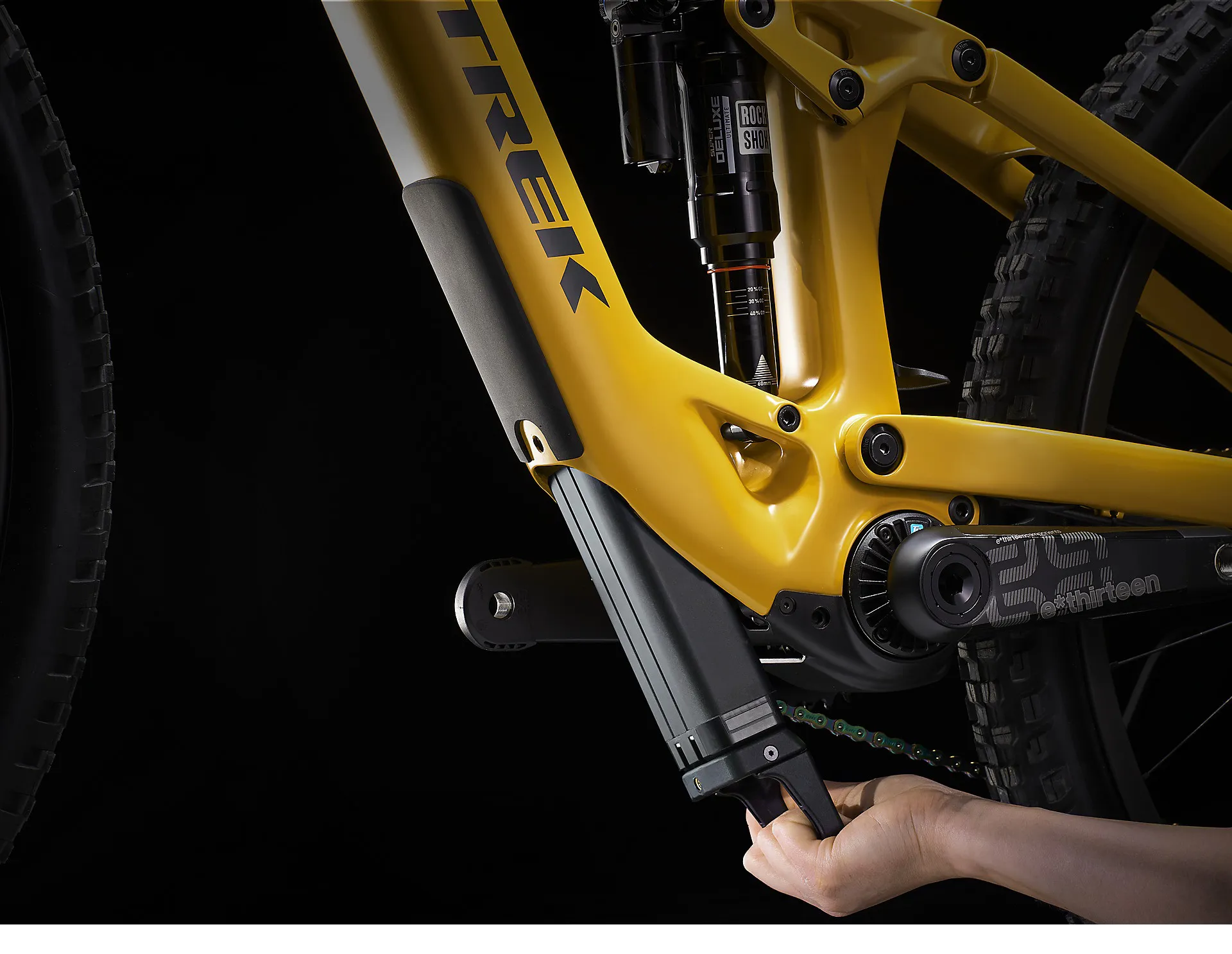

Battery
TQ 360 Wh

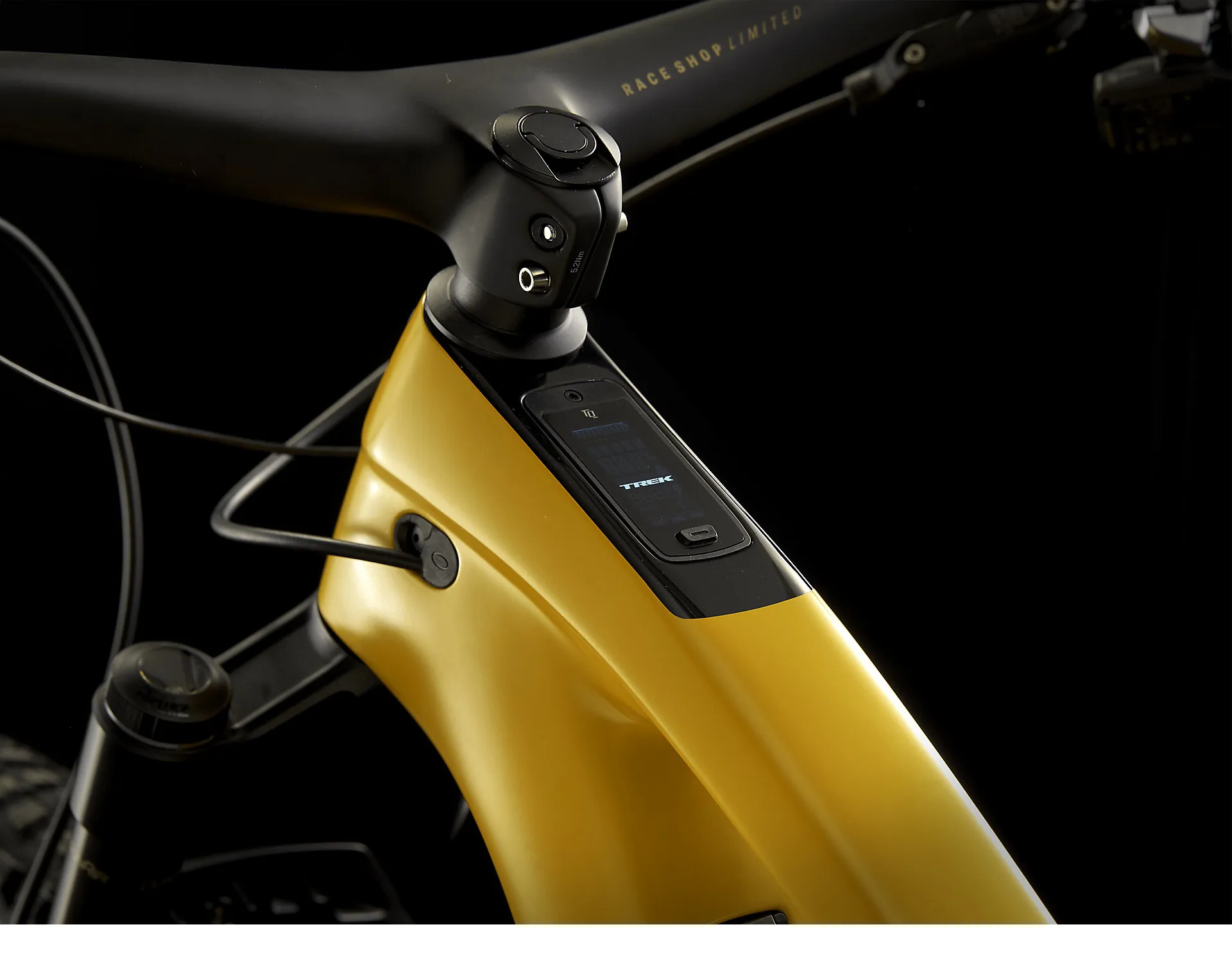

*Controller
Size: S, M, L, XL

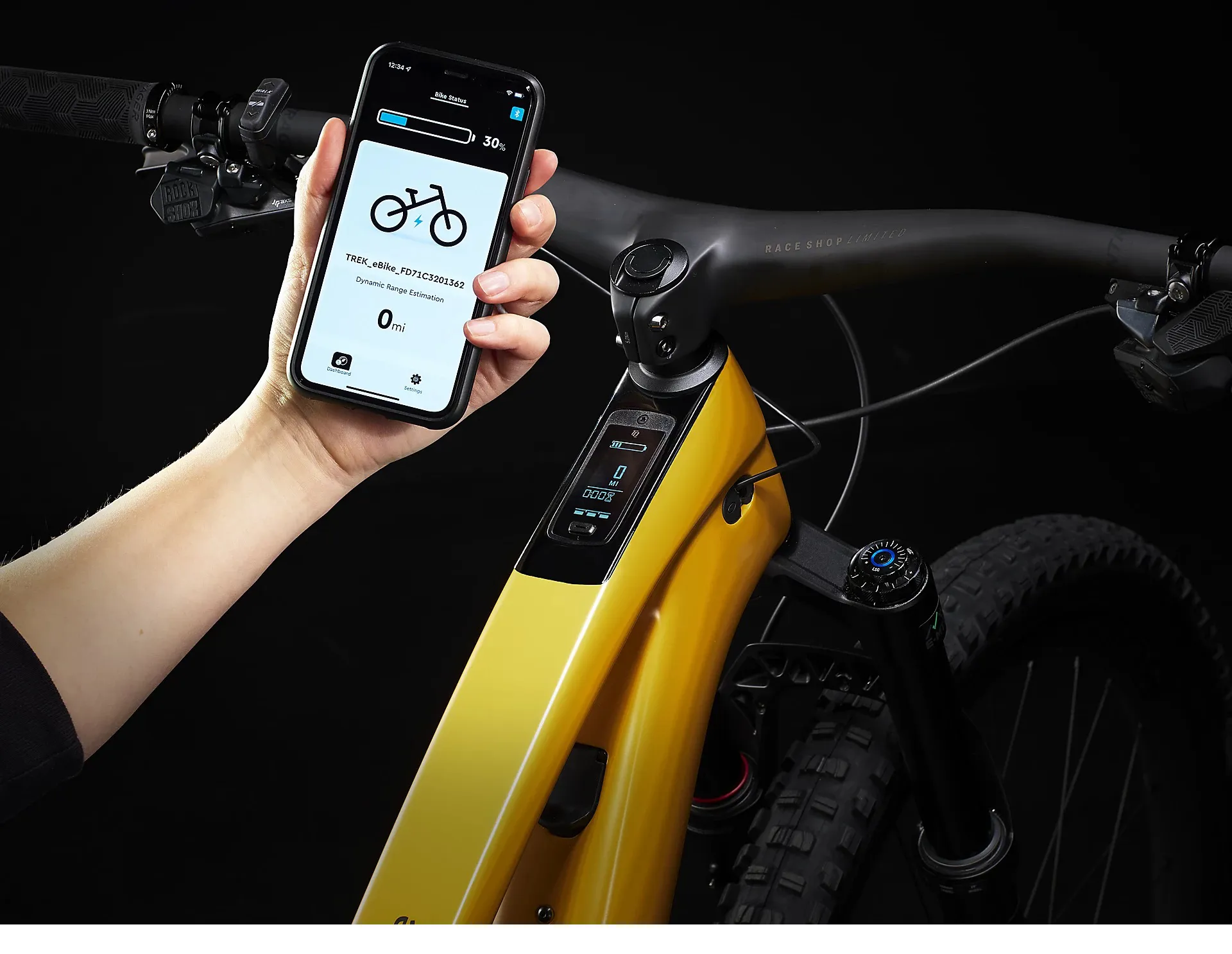

TQ LED display with Bluetooth & ANT+ connectivity
Size: S, M, L, XL

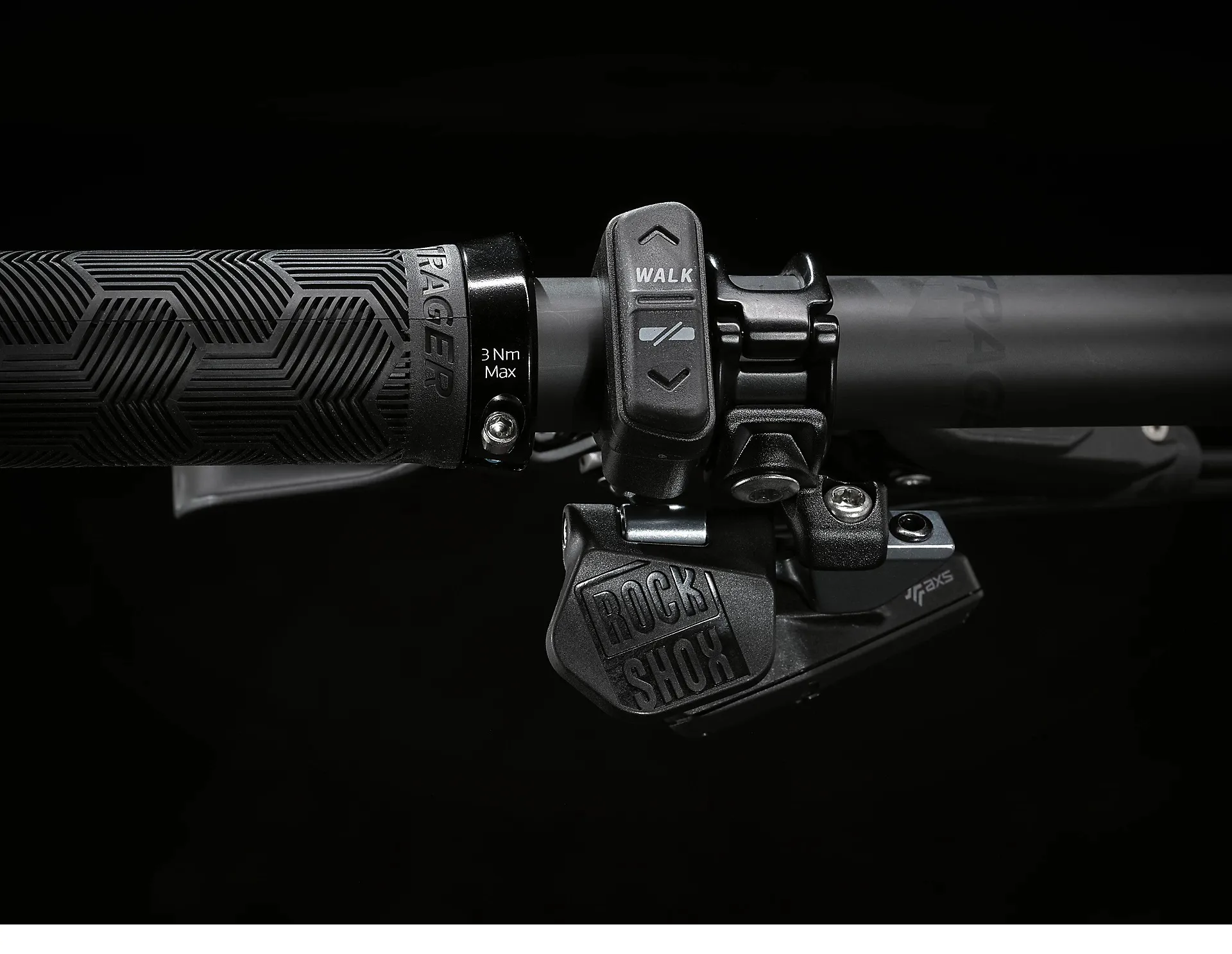

TQ handlebar-mounted

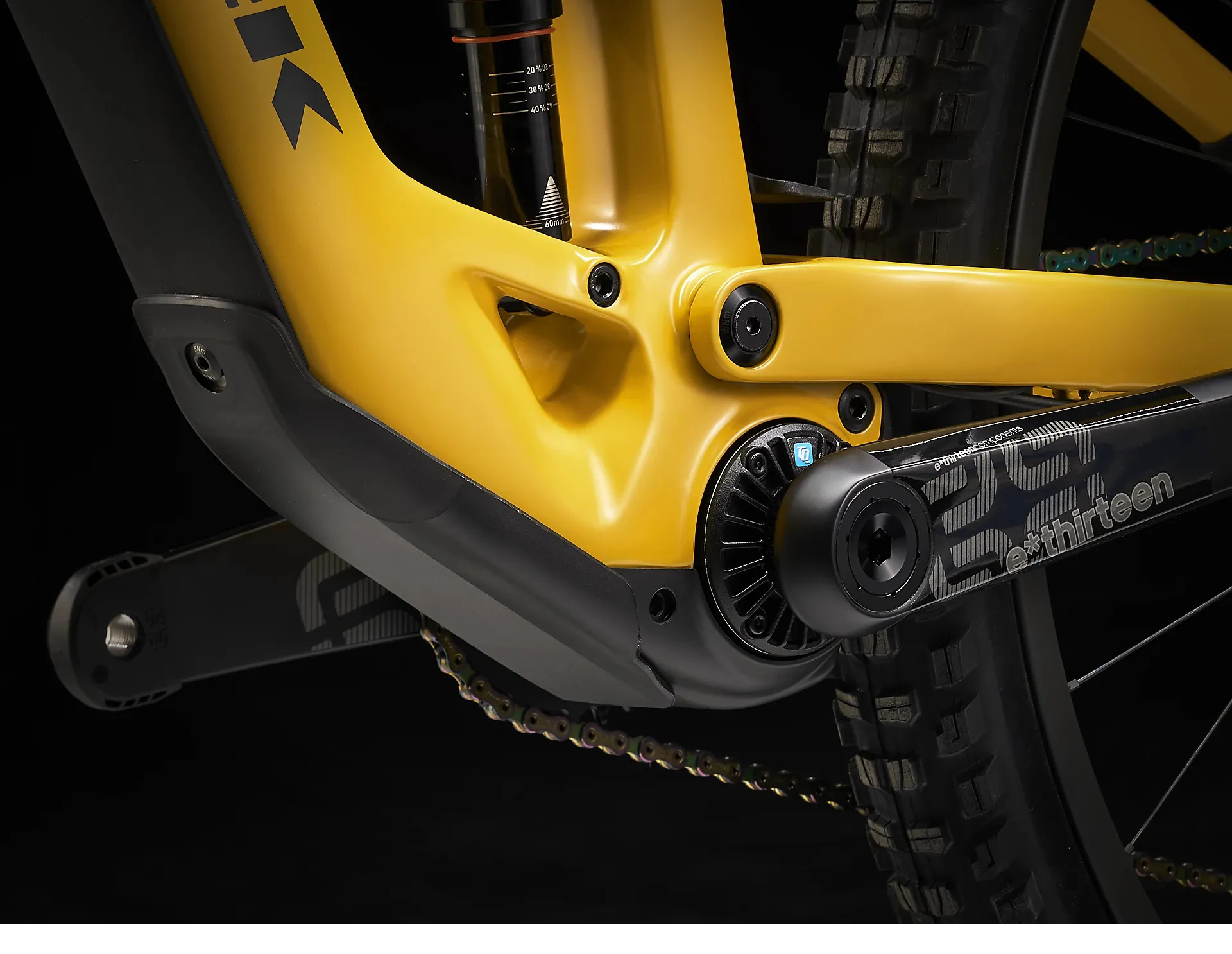

Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
*Electronics
Size: S, M, L, XL
TQ 4A charger
Size: S, M, L, XL
SRAM AXS aux power cable
Weight
M - 18.45 kg / 40.68 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
